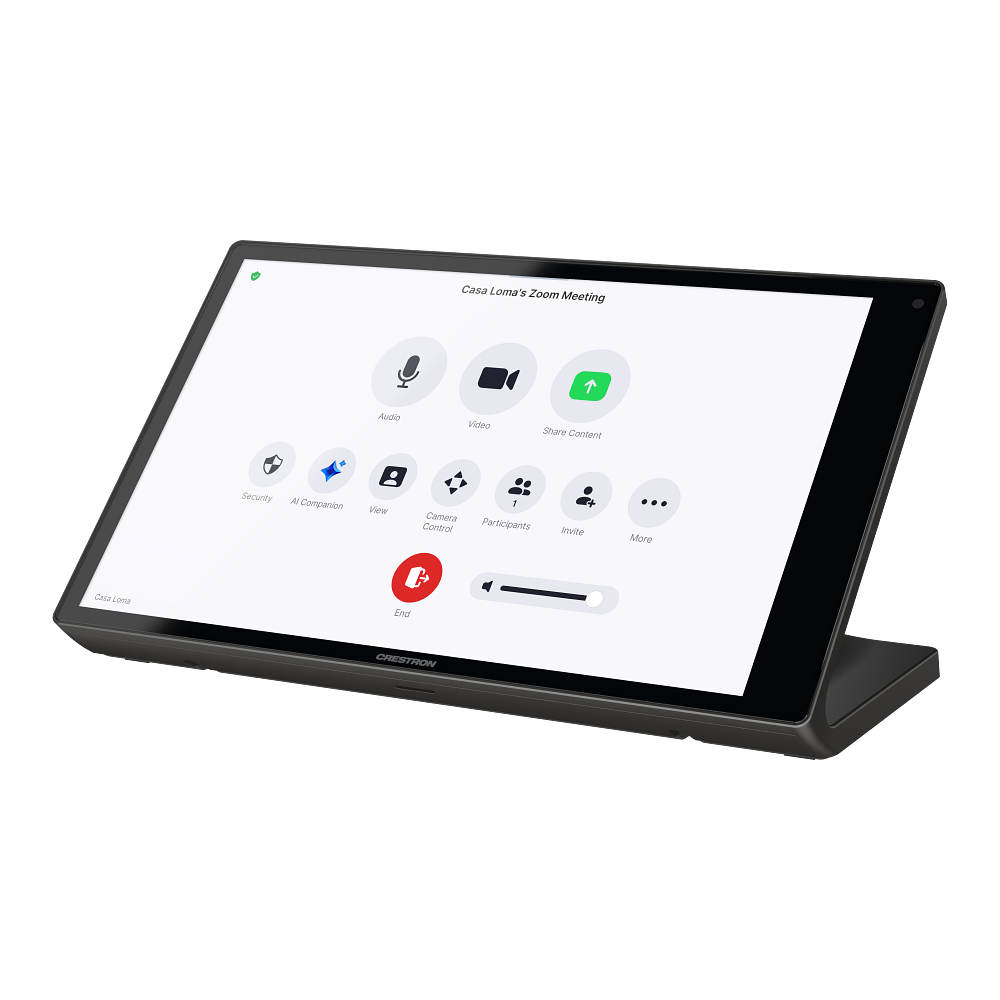

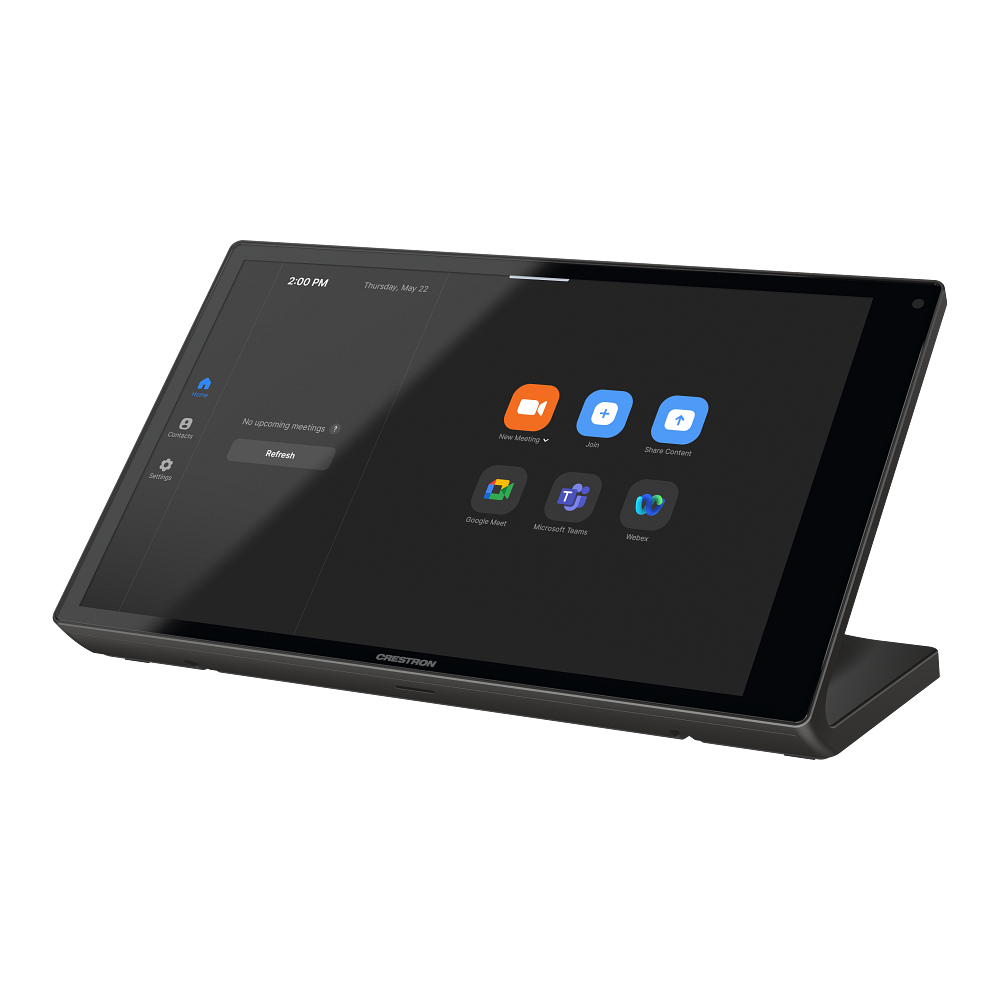

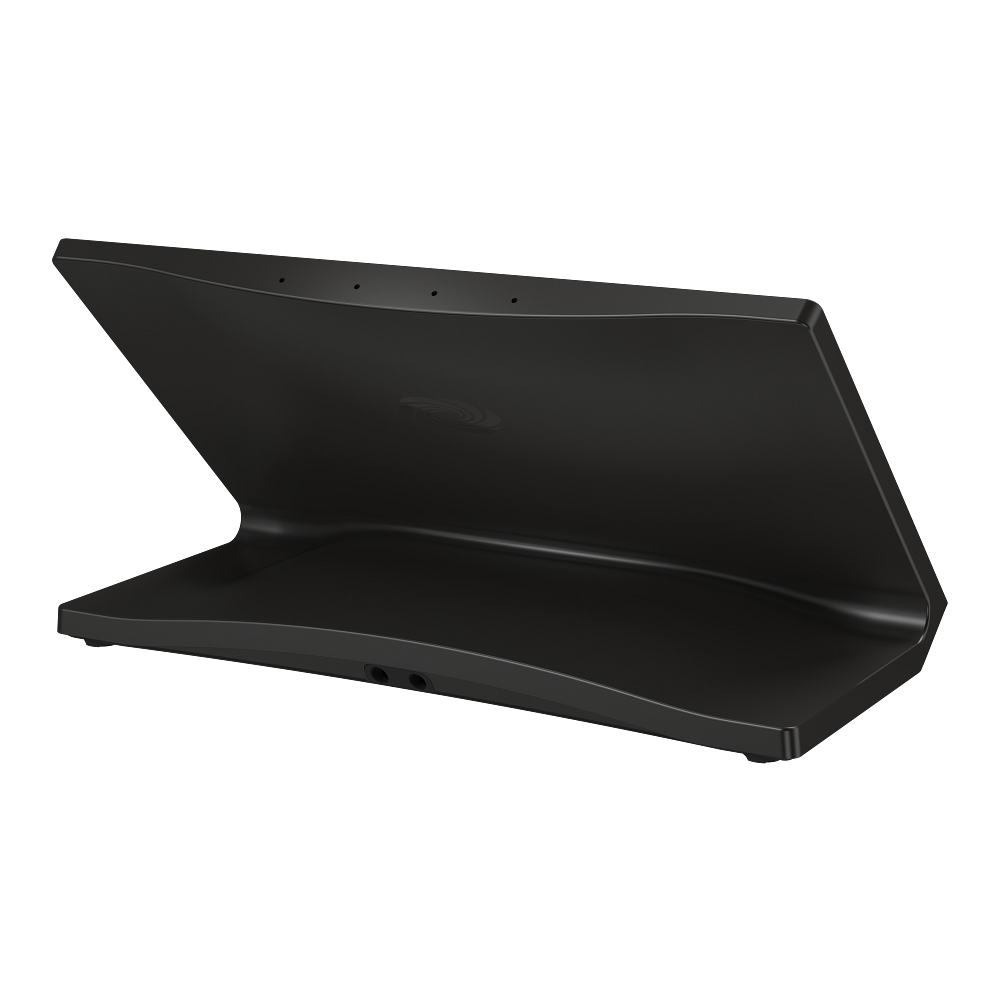

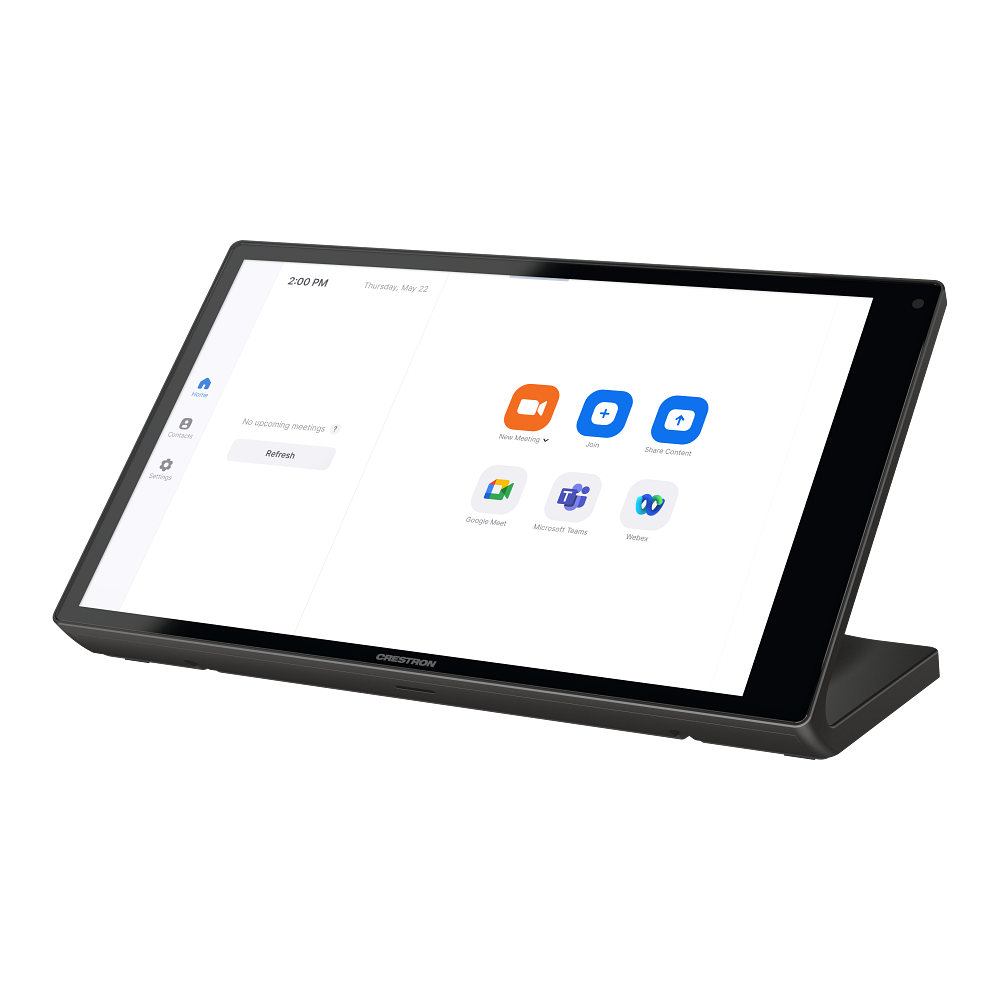

Crestron TS-1080-UC-B 10.1 in. Tabletop Touch Screen, UC Version
The TS-1080-UC-B is the unified communications build of the 10.1 in. 80 Series tabletop touch screen. It is not a general-purpose control panel; it is the table controller for a compatible Crestron UC engine, specifically Crestron Videobar 70, Crestron Collab Compute, and AirMedia Series 3. That narrower job is why it carries built-in speakers but no microphone and no Rava intercom, and why its tool bar drops to five virtual buttons.
The display and platform are the current 80 Series hardware: 1920 x 1200 on a 10.1 in. capacitive panel, 8 GB of LPDDR4 RAM, 40 GB of pSLC storage, and gigabit Ethernet with PoE+ over a single RJ-45. A USB Type-C connector serves as a USB 2.0 host today, and the streaming decoder takes H.265, H.264, and MJPEG up to 3840x2160 at 30 fps.
| Display | 10.1 in. (257 mm) TFT active matrix color LCD |
|---|---|
| Resolution | 1920 x 1200 pixels, 16:10 |
| Brightness | 350 to 400 nits (cd/m2), 1000:1 contrast |
| Compatible Systems | Crestron Videobar 70, Crestron Collab Compute, AirMedia Series 3 |
| Memory | 8 GB LPDDR4 RAM, 40 GB eMMC pSLC storage |
| Network | 1000 Mbps Ethernet with PoE+ PD over (1) RJ-45 |
| Video | H.265, H.264, MJPEG up to 3840x2160 at 30 fps, RTSP |
| Audio | Built-in speakers |
| Dimensions | 5.96 in. H x 9.68 in. W x 4.53 in. D (151 x 246 x 115 mm) |
