Crestron MC4-R Crestron Home Control System with Handheld Remote Kit

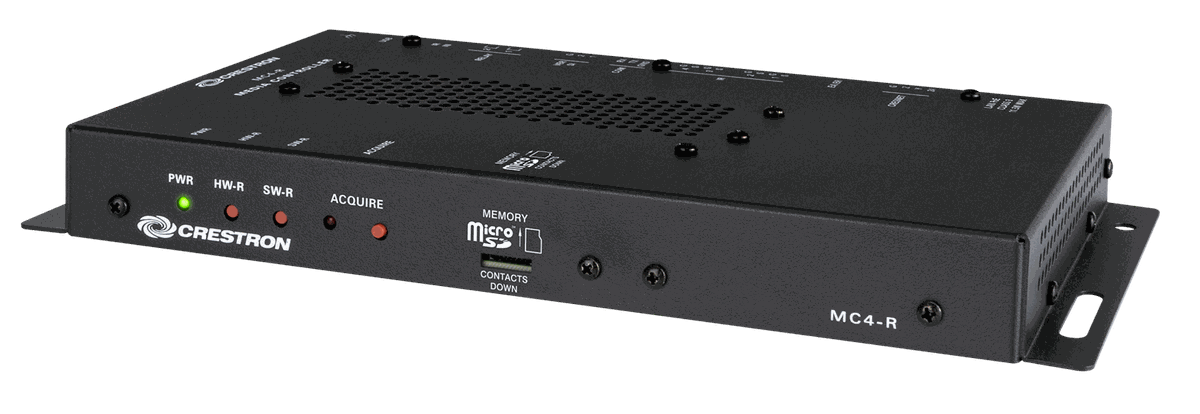

Every one of these kits is the same MC4-R 4-Series control system for Crestron Home OS paired with a different remote, so the choice here is about how the client wants to drive the room rather than about the processor. The MC4-R carries 2 GB of SDRAM, 8 GB of flash and a built-in infiNET EX gateway, which is what lets the remote talk to it without a separate wireless gateway, and it supplies wired control on one RS-232 port, four IR outputs, two relays and two Versiport I/O ports. Four IRP2 emitters are included.
The HR-150 is the 50-button handheld with prelabeled and engravable caps, white LED backlighting behind every button and a full transport and navigation layout, running on four AAA cells. The HR-310 is the equivalent kit remote in black or white. HR-CV-MINI is the compact handheld. The TSR-310 kits substitute the touch screen remote, which is why they sit at the top of the range. All variants share the same processor specifications below.
| Processor | MC4-R 4-Series control system for Crestron Home OS |
|---|---|
| Memory | 2 GB SDRAM, 8 GB flash; microSD up to 32 GB (4 GB card included) |
| Wireless | Built-in infiNET EX gateway, 2.4 GHz ISM channels 11-26, IEEE 802.15.4; 50 ft (15 m) to nearest mesh device |
| Control Ports | (1) bidirectional RS-232, (4) IR outputs, (2) isolated relays 1 A at 30 VAC/DC, (2) Versiport I/O |
| Cresnet | (1) 4-pin 3.5 mm detachable terminal block, server port, 2.5 W available |
| Power | IEEE 802.3at Type 1 (802.3af compatible) Class 0 PoE powered device; 7 W typical |
| Included | Handheld or touch screen remote per variant, (4) IRP2 IR emitters, 4 GB microSD card |
| Processor Dimensions | 1.07 in H x 10.15 in W x 5.11 in D (27 x 258 x 130 mm); 1.0 lb (454 g) |
