Crestron HZ2-DIMLVEX Horizon 2 In-Wall 0-10V Dimmer

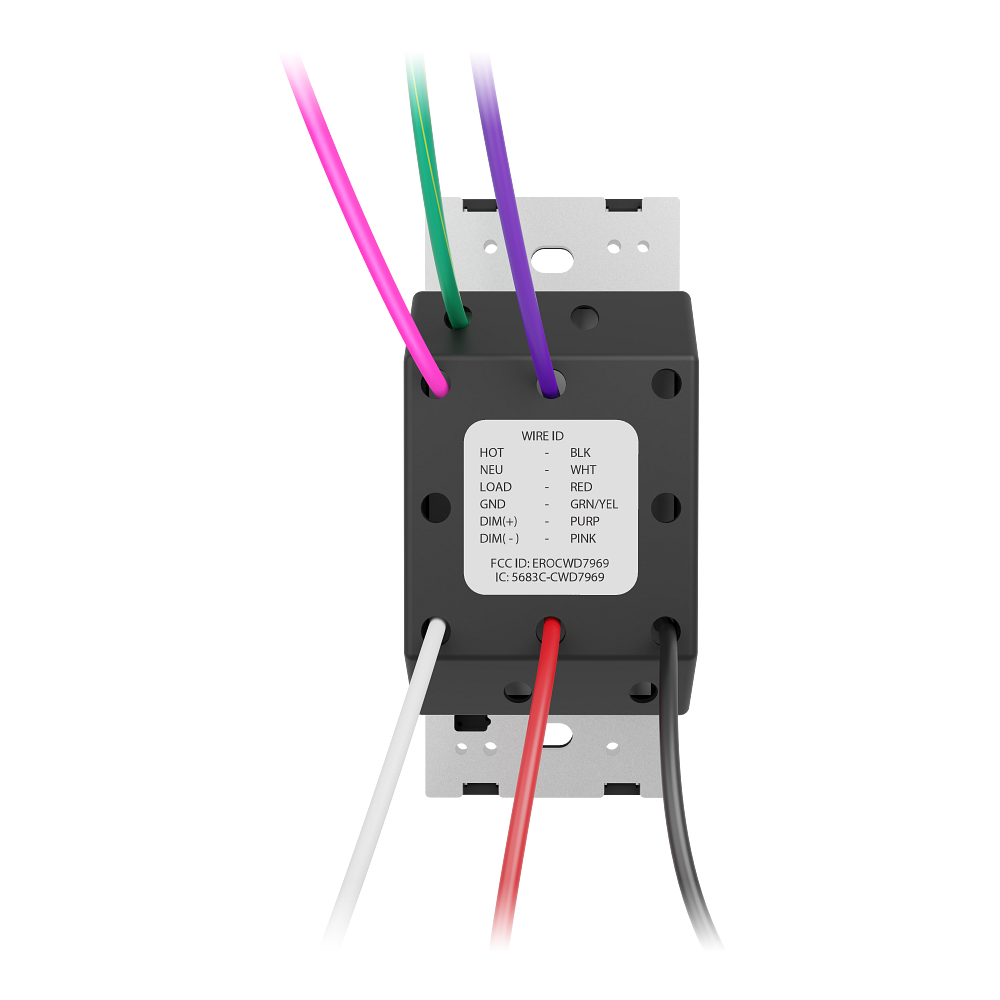

The HZ2-DIMLVEX is a Horizon 2 in-wall dimmer and switch for 0-10V ballasts and LED drivers, controlled over an infiNET EX wireless network. It switches up to 10 A with no minimum load and drives the dimming pair with a 0-10 VDC output rated 60 mA sink or source, so it suits the LED drivers and fluorescent ballasts that dominate commercial retrofits. Everything terminates on 12 AWG flying leads with wire nuts included: black HOT, white NEU, red LOAD, green and yellow GND, purple DIM+, and pink DIM-.

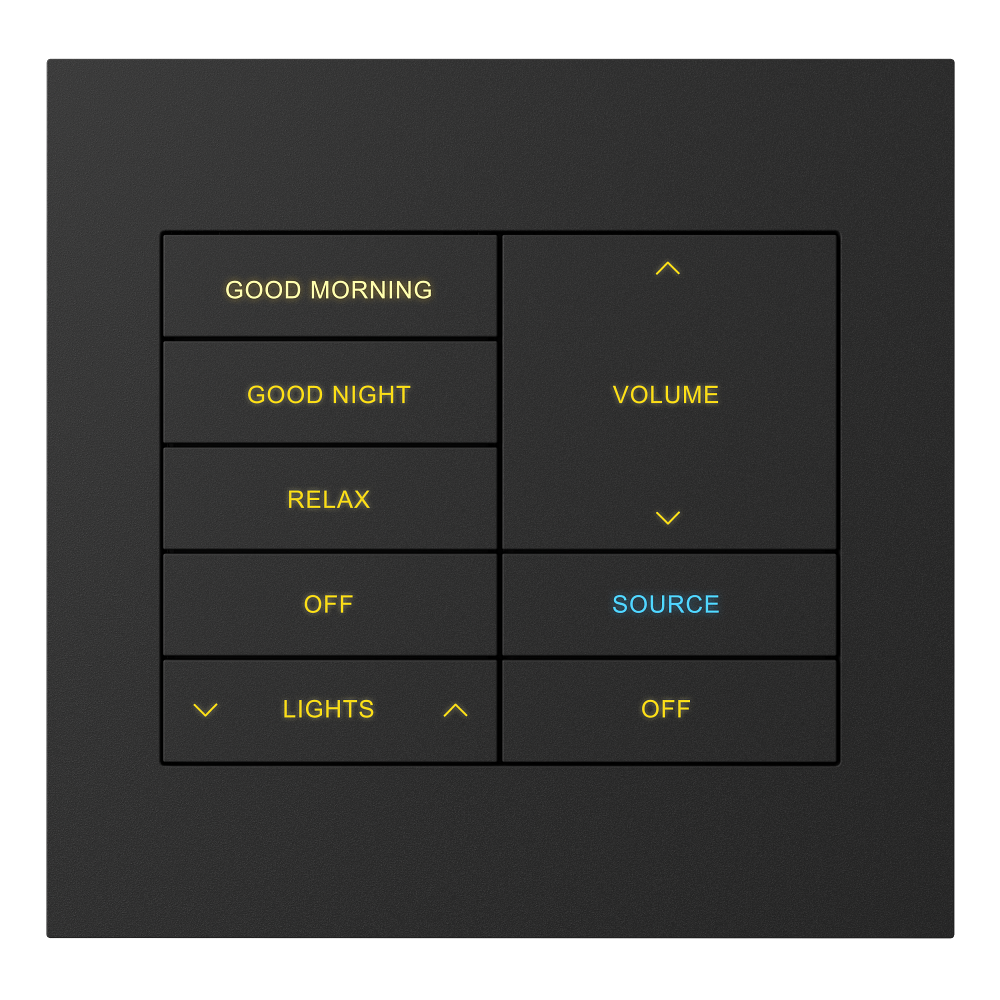

Like the rest of the Horizon 2 line, the face is a keypad rather than a paddle, reading up to five buttons through any of the six HZ2-BTNS styles with RGB backlights, a local color theme, and a photosensor that switches day and night backlight modes. Standard models arrive with default dot engraving on a Style 6 large rocker; ENGRAVED models arrive with your own laser-etched legends. infiNET EX reaches roughly 150 ft indoors to the nearest mesh device and needs a Crestron wireless gateway, and up to four devices gang side by side behind an HZ2-FP-G faceplate, which is sold separately.
