Crestron CLWI-DIMUEX Universal Phase In-Wall Dimmer, 230 VAC

The CLWI-DIMUEX dims essentially anything on a 230 Volt circuit: incandescent, tungsten-halogen, magnetic and electronic low-voltage, dimmable CFL, and phase control dimmable LED, up to 450 VA per channel with a 50 Watt minimum. Universal operation means it works out forward or reverse phase for the connected load rather than asking the installer to commit at specification time. A ramp rate of 5 seconds and a 2 second preset fade are the defaults, both adjustable in software.

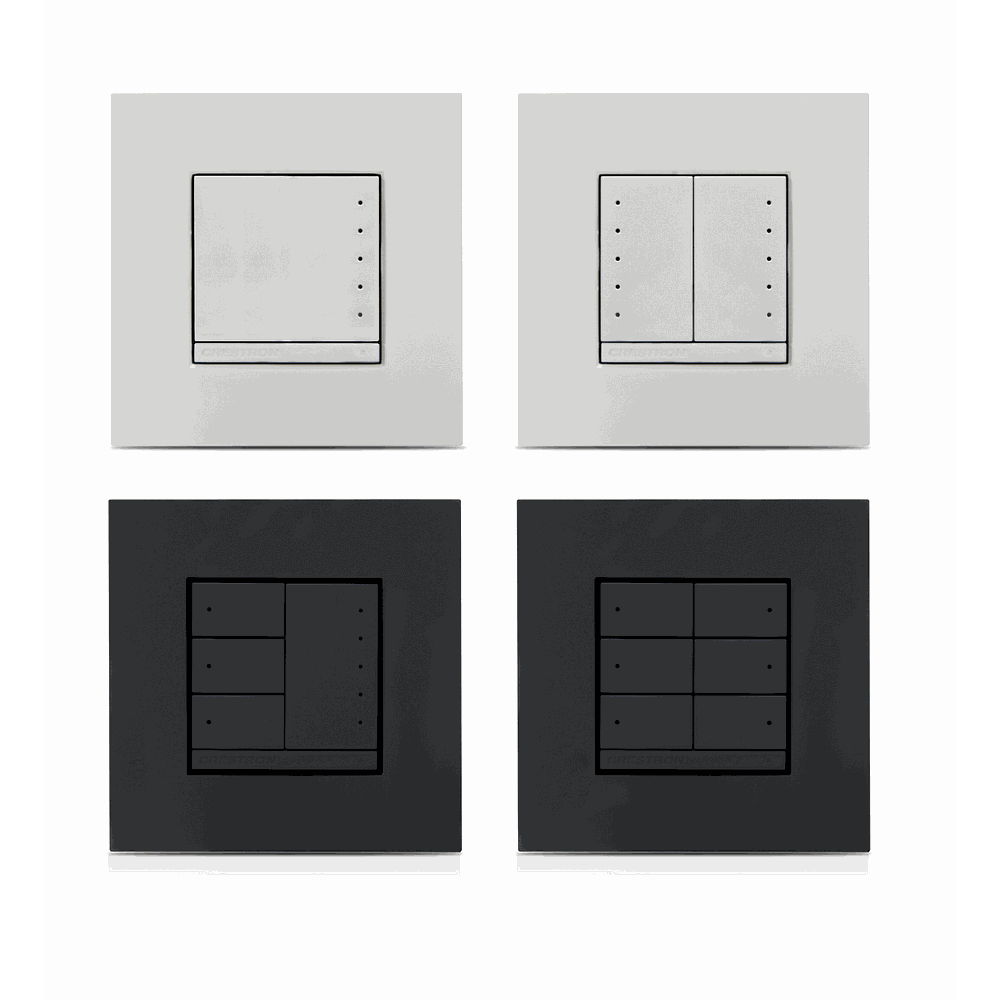

Multiway control does not need a matched remote. Any maintained or momentary switch wired to the REMOTE terminal gives on and off from a second location, and a momentary push-button gives full dim up and down as well, which is what makes replacing a traditional three-way run straightforward. Buttons are field-replaceable and engravable, so what the station does can change long after it was installed. Snap-on fittings need no tools, and the face configures as one large rocker, up to two adjacent half-size rockers, or a triple button pad, up to six positions in all. Each unit ships with a full assortment of blank buttons. Because it sits on the Crestron network it also works as a keypad, sending scene and audio commands rather than only driving its own load. A faceplate is not included; the FP-INTENSE and FP-PURE ranges cover it in 18 colors and finishes up to five gang.
