Crestron CM2-DIMEX Cameo 2 In-Wall Forward Phase Dimmer

The CM2-DIMEX is the forward phase member of the Cameo 2 in-wall family. It joins a Crestron system over infiNET EX, the 2.4 GHz mesh that reaches roughly 150 ft indoors to the nearest node, and dims incandescent, magnetic low voltage and tungsten halogen loads up to 750 W/VA at 120-240VAC. It will also drive a non-dim load such as a small exhaust fan, and a 1/4 HP motor. Minimum and maximum light levels are settable, and the dimming curve can be linear, logarithmic, or a custom shape the programmer defines.

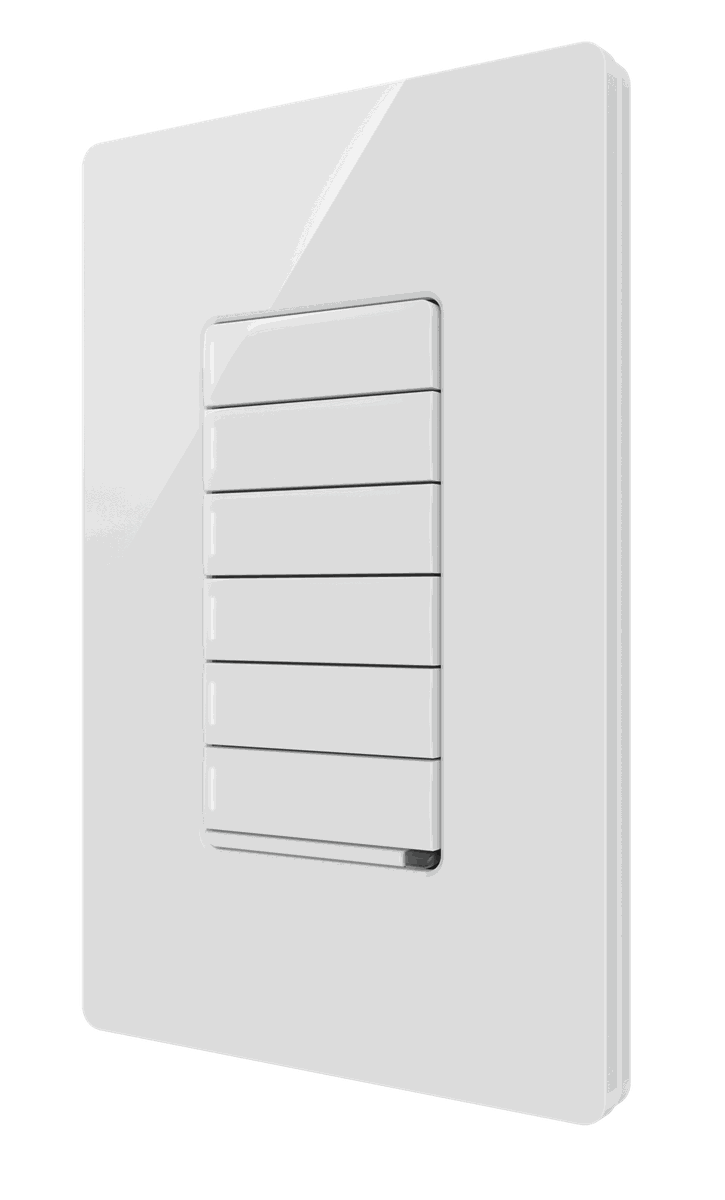

Order it as a full keypad or as a large single rocker. The full keypad carries up to six programmable buttons with RGB backlit text regions and matching indicator LEDs; the bottom four can be paired into side-to-side rockers. Buttons respond to normal, tap, double-tap and press-and-hold events. The ENGRAVED variants take custom engraving on small, medium or large button caps in any combination. Wiring is five screw terminals (hot, remote, load, neutral, ground) at 14-12 AWG into any gang US electrical box, 3.5 in deep recommended. A Cameo 2 faceplate and a Crestron wireless gateway are both required and sold separately.
