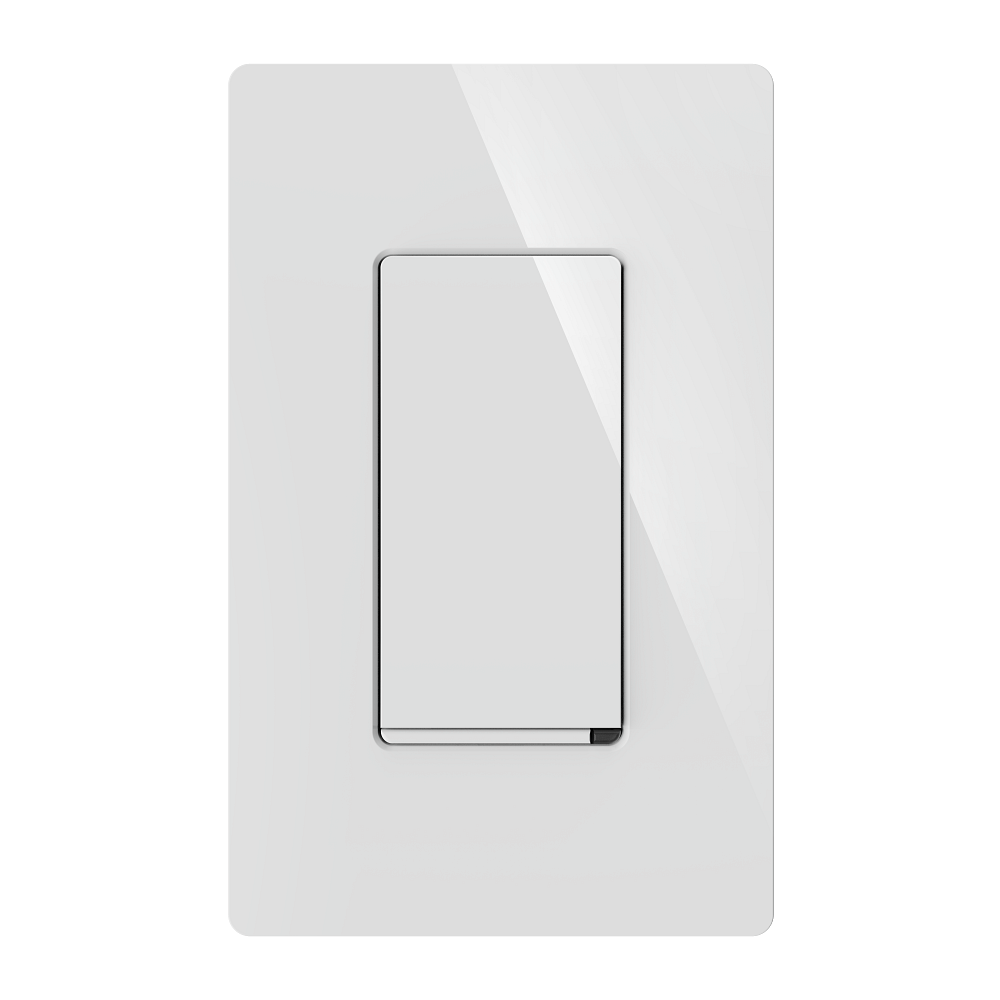

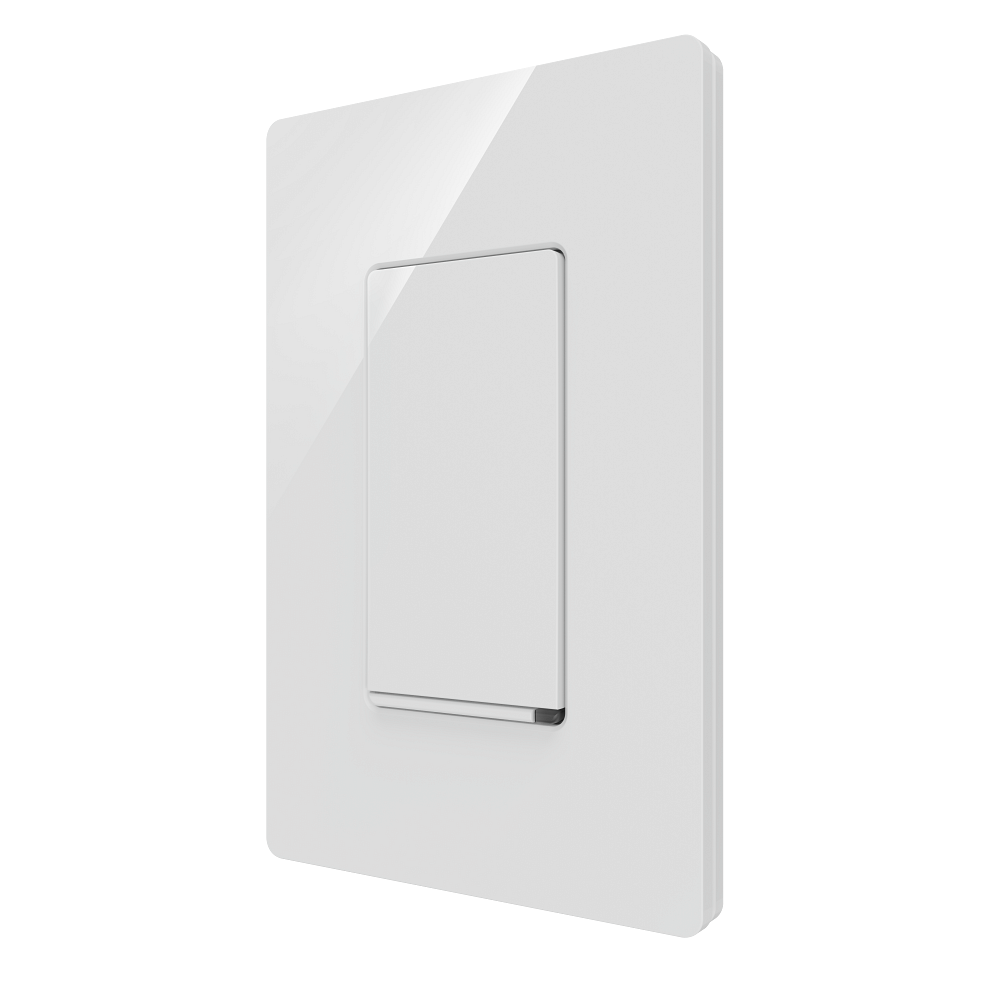

Crestron CM2-AUX-RKR Cameo 2 In-Wall Multiway Remote
The CM2-AUX-RKR is the second and third wall station in a multiway lighting circuit. It carries no dimmer of its own; it connects to the REMOTE terminal of a CM2-DIMEX, CM2-DIMUEX, or CM2-SWEX over the traveler wire already in a conventional three- or four-way run, and drives that device from wherever it is mounted. Because the control is line based rather than an added low-voltage bus, it behaves the same across every load type the host device supports.
A large rocker button is preinstalled. The standard model arrives with default engraving; ENGRAVED models are laser-etched with the legend supplied at order time. The rocker is field-replaceable, so a change of function, color, or engraving does not mean a new device, and blank large rockers are available for third-party engraving. The remote mounts in a 1- to 4-gang U.S. wall box behind a Cameo 2 multi-gang faceplate or any decorator-style plate, both sold separately.
| Type | In-wall multiway remote for Cameo 2 dimmers and switches |
|---|---|
| Host Devices | CM2-DIMEX, CM2-DIMUEX, or CM2-SWEX, sold separately; cannot control a load directly |
| Control Method | Line based multiway control via the traveler wire of a three- or four-way circuit |
| Power | Powered from the REMOTE terminal of the host device plus line power input |

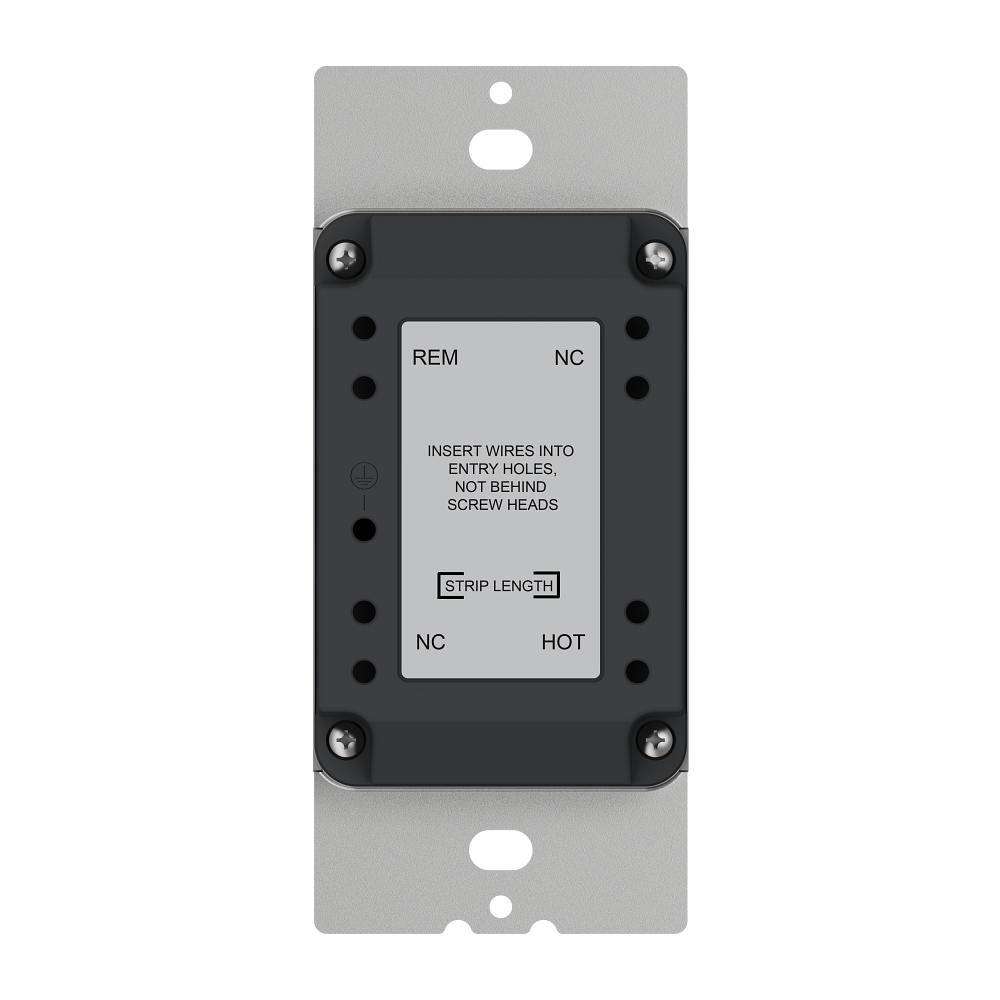

| Connections | HOT, REM, and GND screw terminals, 14-12 AWG |
| Buttons | One large rocker, preinstalled; programmable for Normal, Tap, Double-Tap, and Press and Hold |
| Finishes | Eight color and finish options |
| Mounting | 1- to 4-gang U.S. wall box; requires a CM2-FP-G series or decorator-style faceplate, sold separately |
| Environmental | 32 to 86 degrees F (0 to 30 degrees C), 10% to 95% RH noncondensing |
