Crestron CLWI-KPLEX In-Wall Wireless Keypad, 230 VAC Line Powered
The CLWI-KPLEX is the wireless companion keypad to the CLWI dimmers and switches, matched to them aesthetically and running on infiNET EX rather than a control cable. Line power comes from the 230 Volt feed already in the box, so the only wiring is the mains, and because it is mains powered it acts as a mesh repeater for the rest of the infiNET EX network rather than only a client.

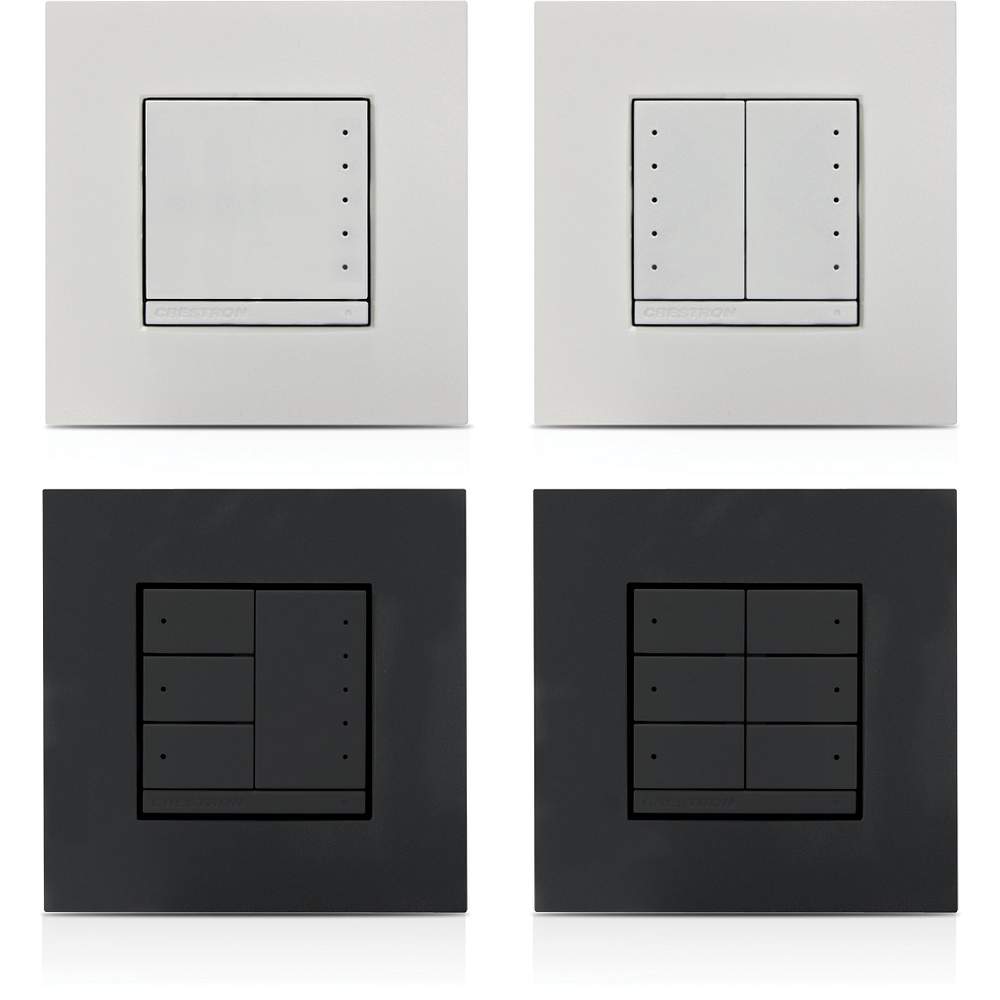

Buttons are field-replaceable and engravable. The face configures as one rocker, or any combination of up to two small rockers and two three-button strips, six positions maximum, and each press is programmable for three discrete actions through single tap, double tap, and press and hold. Faceplates are sold separately. It fits a 1-gang UK BS 4662 or European DIN 49073 box and measures 2.80 by 2.80 by 1.24 inches including the button face.
| Type | In-wall lighting and audio keypad, infiNET EX wireless |
|---|---|
| Wireless | infiNET EX 2-way RF, 2.4 GHz ISM channels 11-26 (2400 to 2483.5 MHz), IEEE 802.15.4 compliant; requires an infiNET EX gateway |
| Power Requirements | 220-240 Volts AC, 50/60 Hz, line power |
| Buttons | One rocker, or any combination of up to two small rocker switches and two three-button strips; six positions maximum; three actions per button via tap, double tap, and press and hold |
| Mounting | 1-gang UK (BS 4662) or European (DIN 49073) electrical box |
| Faceplate | Not included; requires an FP-INTENSE or FP-PURE style faceplate, sold separately |
| Dimensions | 2.80 in (72 mm) H x 2.80 in (72 mm) W x 1.24 in (32 mm) D including the button face |
| Environmental | 32 to 104 degrees F (0 to 40 degrees C), 10% to 90% RH non-condensing |
