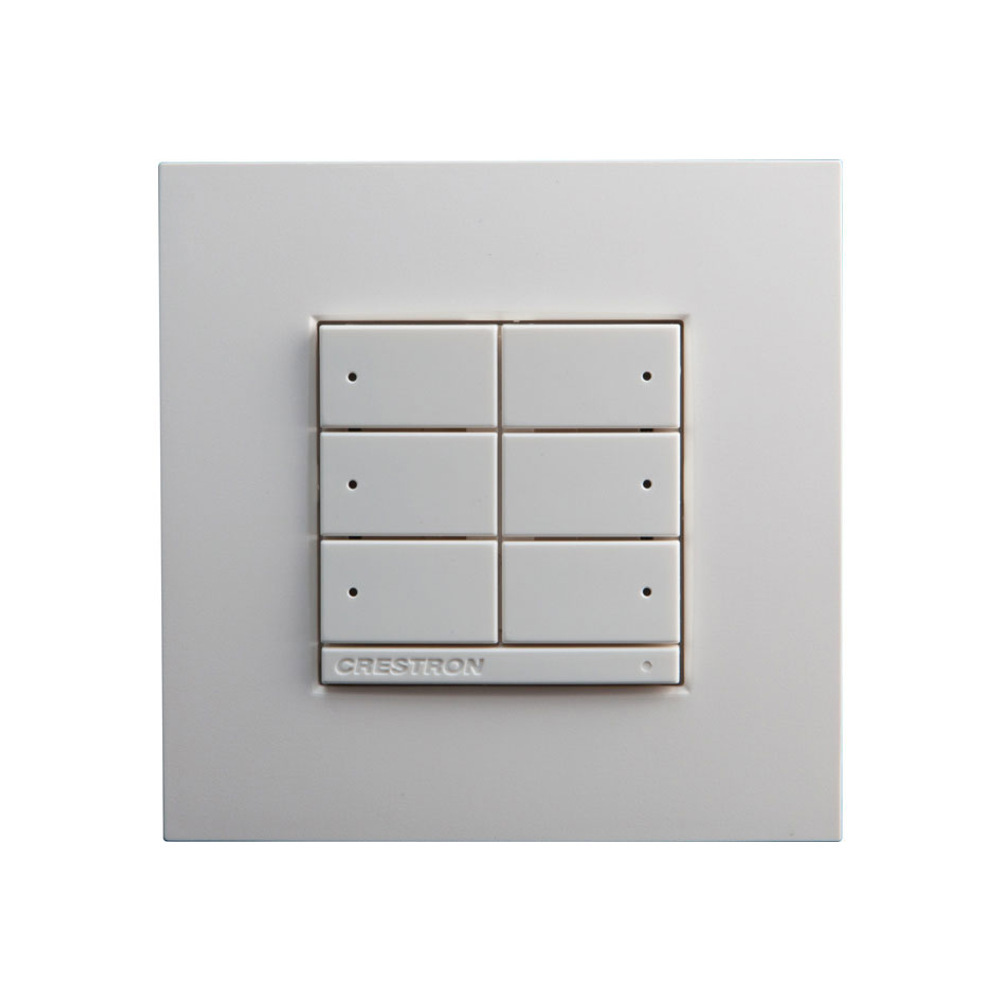

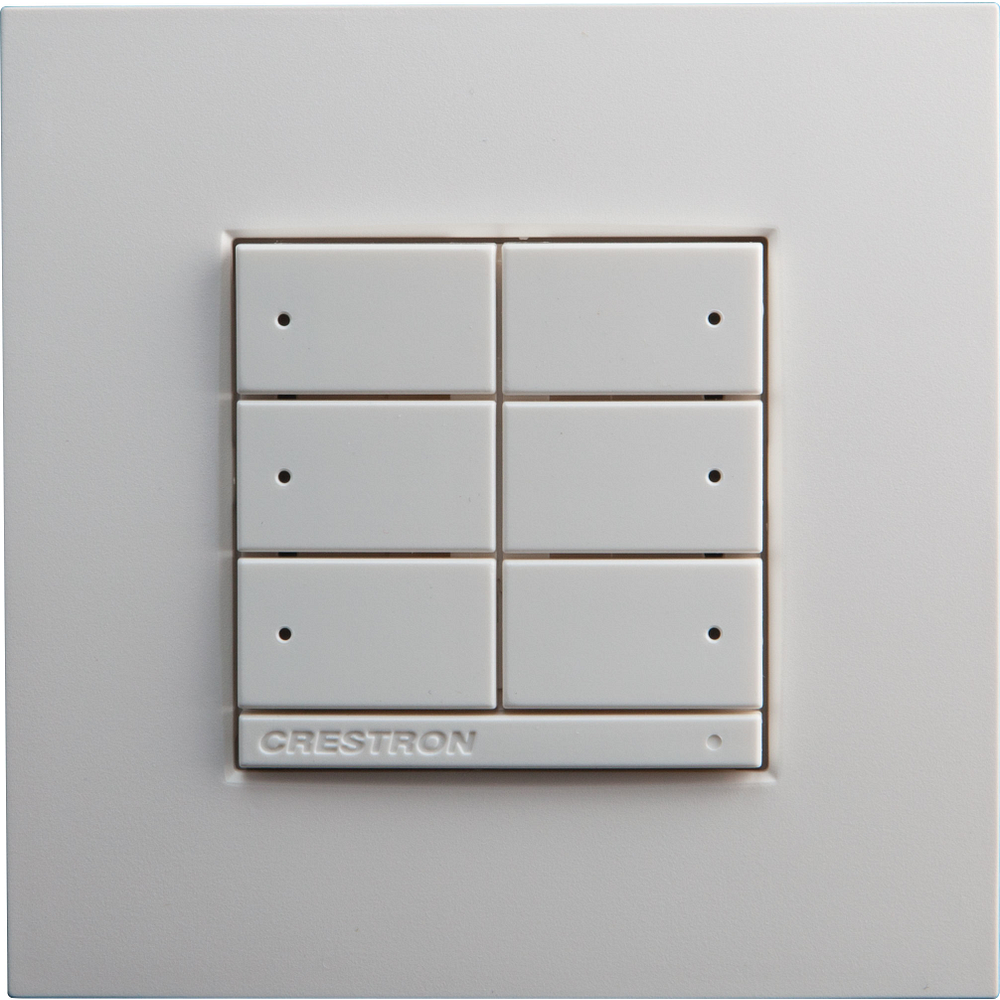

Crestron CLWI-KPLEX-BATT On-Wall Wireless Keypad, Battery Powered

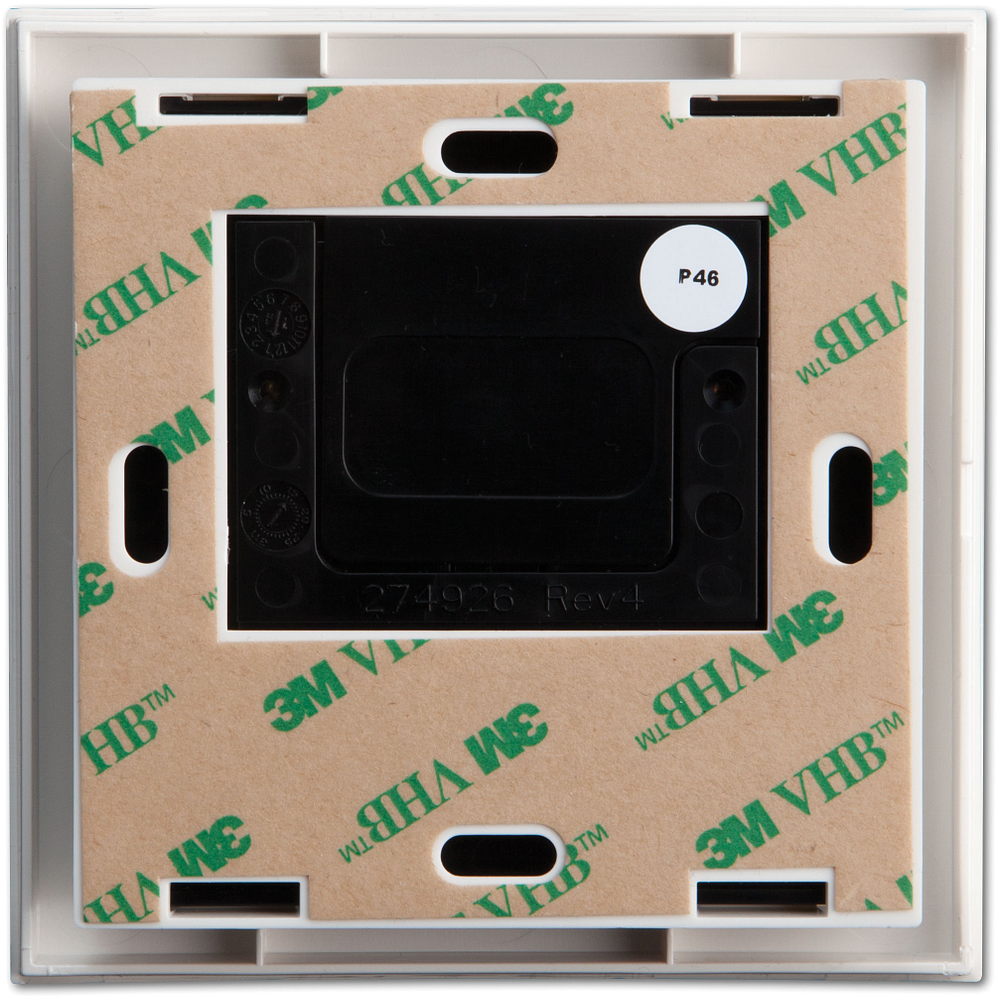

The CLWI-KPLEX-BATT is the CLWI keypad with no wiring at all. A CR2450 lithium coin cell powers it and infiNET EX carries the commands, and preinstalled double-sided tape holds it to glass, plaster, tile, or joinery, which is how a control point appears on the far side of a room that has no back box. It matches the wired CLWI keypads and dimmers exactly, so an added station does not look added.
Buttons are field-replaceable and engravable. The face configures as one rocker, or any combination of up to two small rockers and two three-button strips, six positions maximum, and each press is programmable for three discrete actions through single tap, double tap, and press and hold. Faceplates are sold separately. Being battery powered it does not repeat for the mesh, so plan the network around the mains-powered devices. It measures 2.85 by 2.85 by 0.76 inches and weighs 2 ounces.
| Type | On-wall lighting and audio keypad, battery powered, infiNET EX wireless |
|---|---|
| Wireless | infiNET EX 2-way RF, 2.4 GHz ISM channels 11-26 (2400 to 2483.5 MHz), IEEE 802.15.4 compliant; requires an infiNET EX gateway |
| Power Requirements | CR2450 3 Volt lithium coin cell, 40 mA |
| Buttons | One rocker, or any combination of up to two small rockers and two three-button pads; six positions maximum; three actions per button via click, double click, and hold |
| Mounting | Surface mount on preinstalled double-sided tape; no back box required |
| Faceplate | Requires an FP-INTENSE, FP-PURE, CLWIA-FP-1G-ANTH, or CLWIA-FP-1G-W faceplate, all sold separately |
| Dimensions | 2.85 in (73 mm) H x 2.85 in (73 mm) W x 0.76 in (20 mm) D including the button face |
| Weight | 2 oz (55 g) |
| Environmental | 32 to 104 degrees F (0 to 40 degrees C), 10% to 90% RH non-condensing |
