Crestron CM2-KPFCN Cameo 2 Flush Cresnet Keypad
The CM2-KPFCN is the flush version of the Cresnet Cameo 2 keypad, for rooms where the finish detail matters as much as the control. At 3.56 by 2.33 in it uses its own trim rather than a standard gang faceplate, and it sits closer to the wall plane than the surface models. Power and data both arrive on one four-conductor Cresnet run at 2 W, and it operates as a Cresnet client under the control processor.

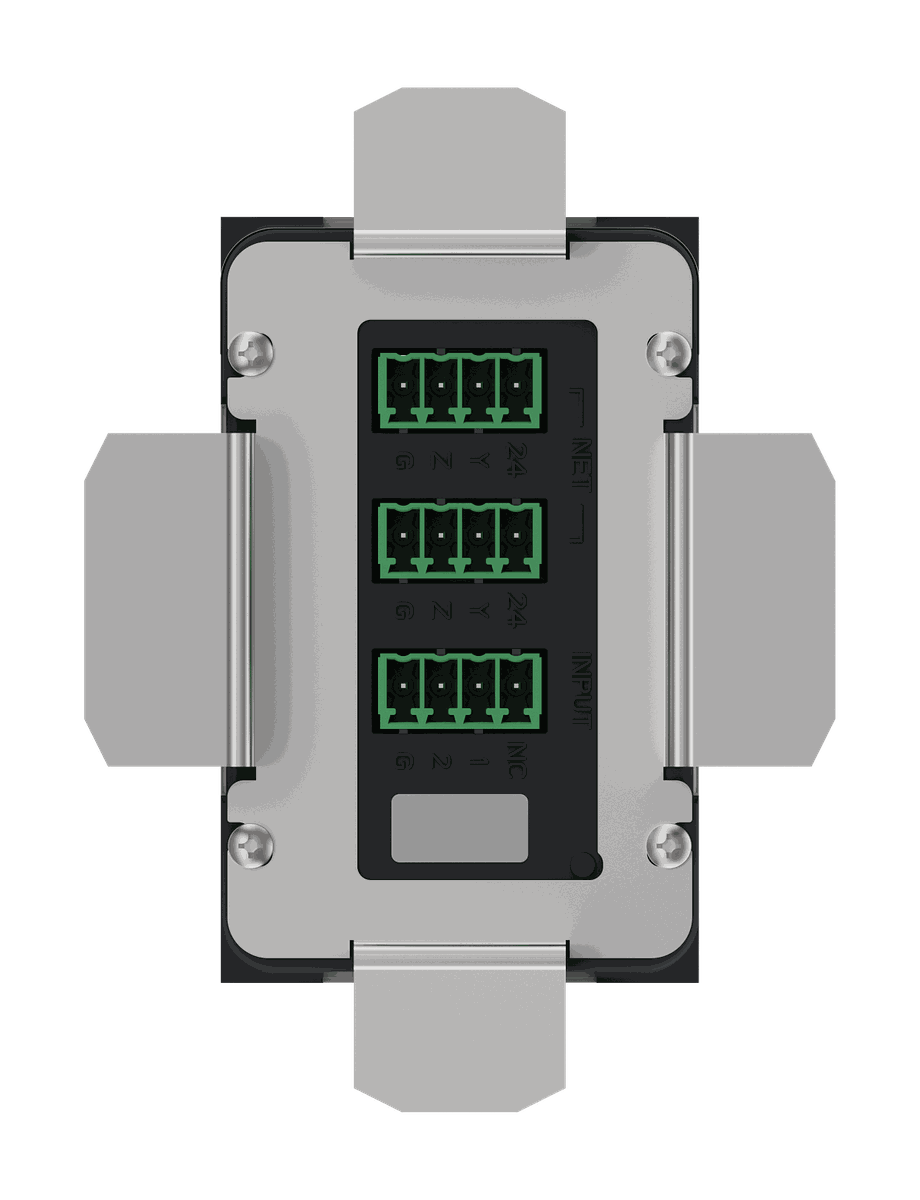

Control behavior matches the rest of the line: buttons over RGB backlit text regions with matching indicator regions, and normal, tap, double-tap and press-and-hold events so one cap can carry more than one scene. Two paralleled NET terminal blocks let the Cresnet bus pass through the box to the next device. A separate 4-pin INPUT block adds two digital or analog input ports rated 0-24VDC for a contact closure or sensor. Order it standard engraved in white textured or as ENGRAVED for custom legends on small, medium or large caps.
| Communications | Cresnet, client mode |
|---|---|
| Cresnet Power Usage | 2 W (83 mA at 24VDC) |
| NET Ports | (2) 4-pin 3.5 mm detachable terminal blocks, paralleled for pass through |
| Auxiliary Inputs | (1) 4-pin 3.5 mm terminal block, (2) digital/analog input ports rated 0 - 24VDC |
| Button Events | Normal, Tap, Double-Tap, Press and Hold |
| Operating Temperature | 32 to 86 deg F (0 to 30 deg C), 10% to 95% RH noncondensing |
| Dimensions | 3.56 in. H x 2.33 in. W x 1.33 in. D (90 x 59 x 34 mm) |
