Crestron CLWI-DIMFLVEX In-Wall 0-10V Dimmer, 230 VAC
The CLWI-DIMFLVEX brings 0-10V fixtures under Crestron control in new or retrofit 230 Volt installations. It drives 4-wire fluorescent ballasts and LED drivers directly from one gang, sinking up to 30 mA per channel with a 7 Watt minimum load, and can switch the load as well as dim it. infiNET EX mesh networking means no control wiring back to the rack: each mains-powered device relays for the others, roughly 150 feet indoors between hops, and the dimmer reports to the processor through an infiNET EX gateway. A bargraph LED array on the face shows level at a glance.

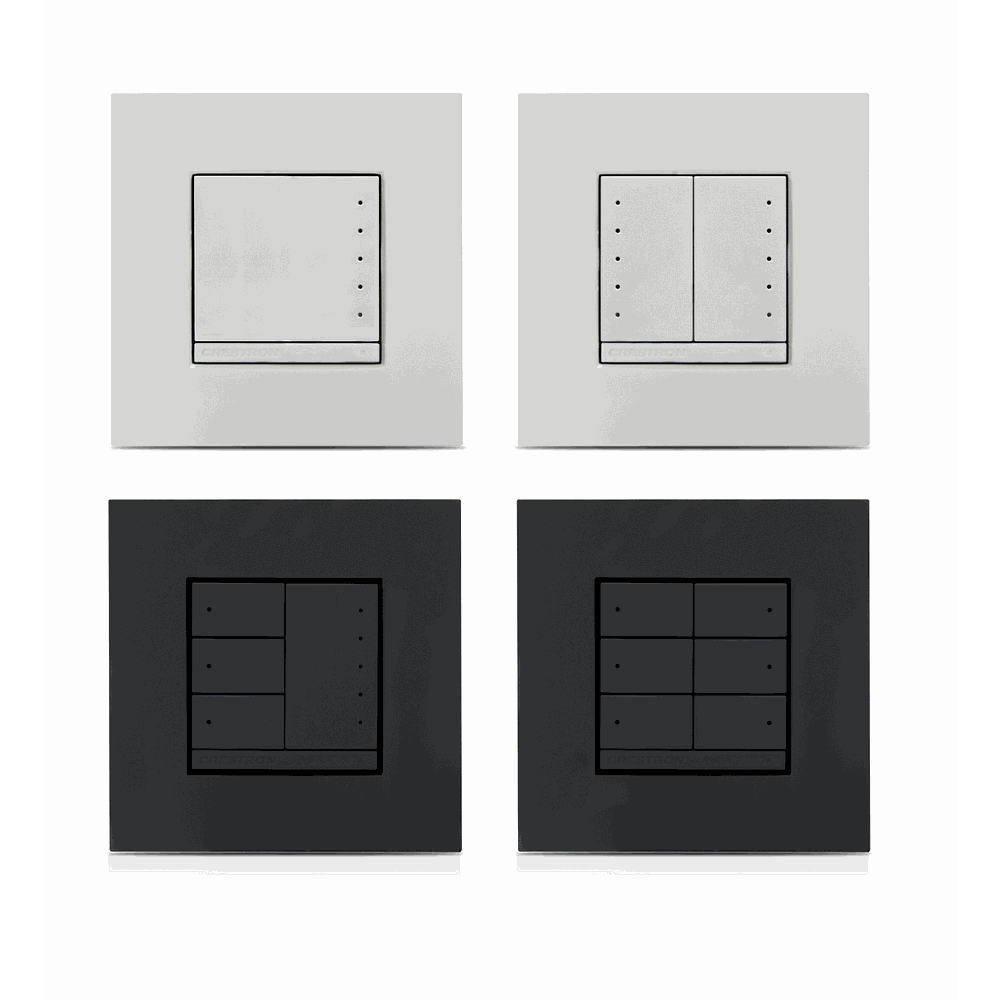

Buttons are field-replaceable and engravable, so what the station does can change long after it was installed. Snap-on fittings need no tools, and the face configures as one large rocker, up to two adjacent half-size rockers, or a triple button pad, up to six positions in all. Each unit ships with a full assortment of blank buttons. Because it sits on the Crestron network it also works as a keypad, sending scene and audio commands rather than only driving its own load. A faceplate is not included; the FP-INTENSE and FP-PURE ranges cover it in 18 colors and finishes up to five gang.
| Type | In-wall 0-10V dimmer, 230 Volt, infiNET EX wireless |
|---|---|
| Load Types | 0-10 Volt fluorescent ballast or LED driver (4-wire) |
| Load Rating | 2 Amps/AX maximum; 30 mA sink only per channel |
| Minimum Load | 7 Watts |
| Power Requirements | 220-240 Volts AC, 50/60 Hz, line power |
| Wireless | infiNET EX 2-way RF, 2.4 GHz ISM channels 11-26 (2400 to 2483.5 MHz), IEEE 802.15.4 compliant; requires an infiNET EX gateway |
| Buttons | Configurable for one rocker, or any combination of up to two small rockers and two three-button pads; six button positions maximum; each press programmable for three discrete functions via click, double click, and hold |
| Feedback | Up to 10 white LEDs, depending on button configuration |
| Connections | Screw-clamp terminals, 14-12 AWG (1.5 - 2.5 mm2) |
| Faceplate | Not included; requires an FP-INTENSE or FP-PURE faceplate, sold separately |
| Environmental | 32 to 104 degrees F (0 to 40 degrees C), 10% to 90% RH non-condensing |
