Crestron CLX-1MC4 4-Channel Motor Control Module, 120V
The CLX-1MC4 drives four 3-wire bidirectional motors, the kind used for drapery tracks, blinds, projection screens, and equipment lifts. Each channel has its own OPEN and CLOSE output rated 10 Amps or half a horsepower, with a 16 Amp module total on one 120 Volt single-phase feed, and a pair of red LEDs per channel shows which direction is live.

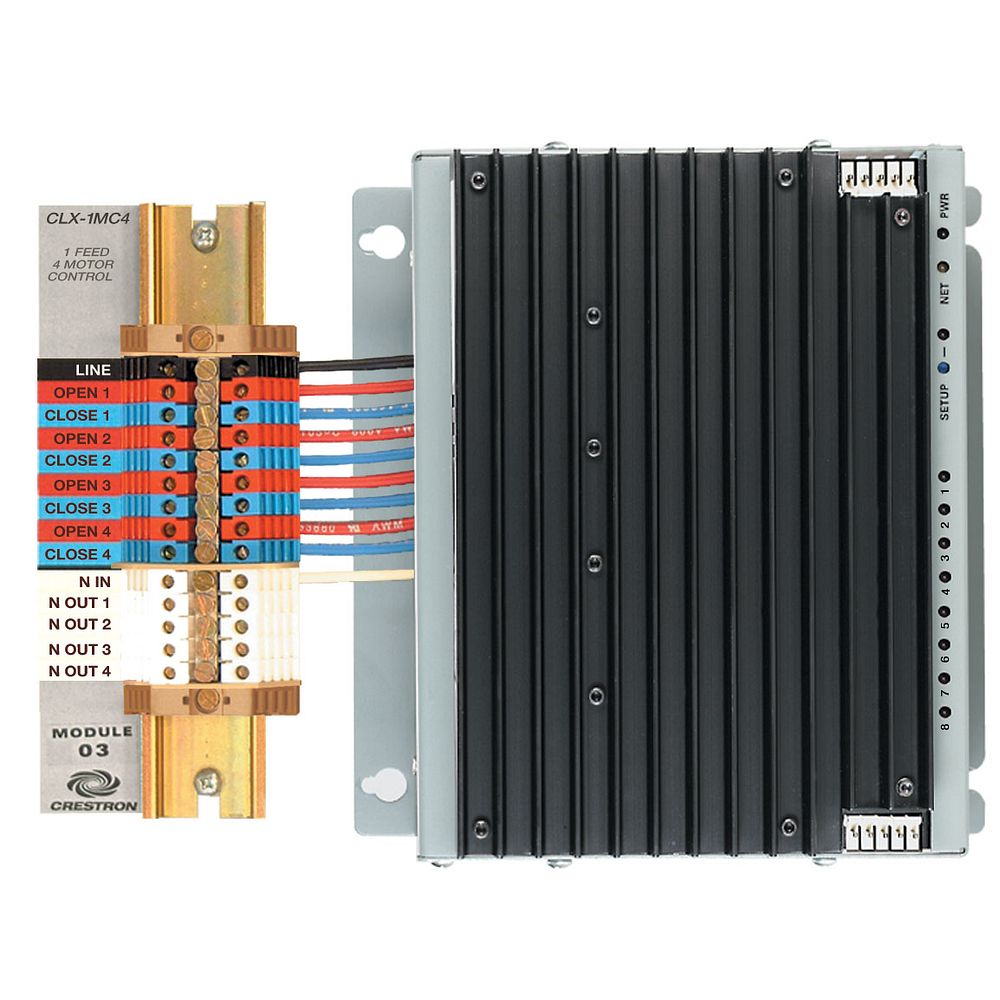

CLX modules mount in a Crestron CAEN or CAEN-MLO wall enclosure and bus their low-voltage control between one another on a five-wire link, terminating at a CAEN-BLOCK at the bottom of the cabinet, which is what keeps a large centralized system to one Cresnet drop. High-voltage wiring lands on a separate CLT terminal block, sold separately, so the electrician can terminate the feeders before the module is ever fitted.
| Type | 4-channel motor control module, single feed |
|---|---|
| Load Types | 3-wire bidirectional motors for drapes, blinds, projection screens, and lifts |
| Load Rating | 10 Amps, 1/2 HP per channel; 16 Amps per module |
| Line/Load Voltage | 120 Volts AC, 60 Hz; one single-phase feed |
| Outputs | OPEN 1-4 and CLOSE 1-4 screw terminals via a CLT terminal block, sold separately; one 14-10 AWG wire per terminal |
| Indicators | PWR (green), NET (yellow), SETUP, and (8) red LEDs showing open or closed status per channel |
| Module Interconnect | (2) 5-pin 0.156 inch headers, Cresnet and override ports; interconnect jumpers included |
| Communications | Cresnet, via the module interconnect and a CAEN-BLOCK, sold separately |
| Enclosure | Occupies one module space in a CAEN or CAEN-MLO wall mount automation enclosure |
| Environmental | 32 to 104 degrees F (0 to 40 degrees C), 10% to 90% RH non-condensing |
