Crestron CLX-1DIMU4-HP 4-Channel High-Power Universal Dimmer Module, 120V
The CLX-1DIMU4-HP is the high-power member of the CLX universal dimmer family: four channels off a single 120 Volt feed, each rated 10 Amps or 1,200 Watts, with a 16 Amp module total. Universal operation covers LED, incandescent, electronic and magnetic low-voltage, and 2-wire dimmable fluorescent loads, and non-dimmable lighting can simply be switched. Minimum load is zero Watts, so a nearly empty channel behaves the same as a full one.

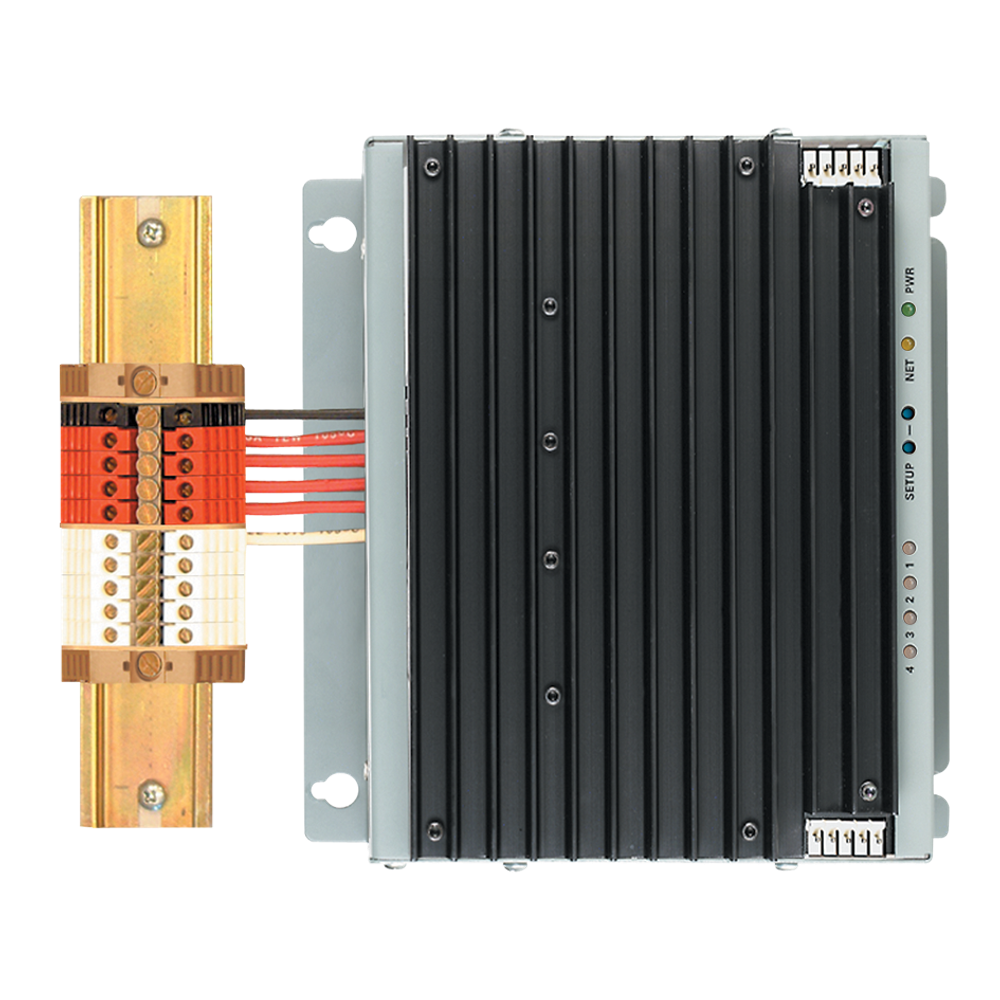

CLX modules mount in a Crestron CAEN or CAEN-MLO wall enclosure and bus their low-voltage control between one another on a five-wire link, terminating at a CAEN-BLOCK at the bottom of the cabinet, which is what keeps a large centralized system to one Cresnet drop. High-voltage wiring lands on a separate CLT terminal block, sold separately, so the electrician can terminate the feeders before the module is ever fitted.
| Type | 4-channel high-power universal dimmer module, single feed |
|---|---|
| Dimmable Load Types | LED, incandescent, electronic low voltage, magnetic low voltage, 2-wire fluorescent |
| Switched Load Types | Non-dimmable lighting |
| Load Rating | 10 Amps (1,200 Watts) per channel; 16 Amps (1,920 Watts) per module |
| Minimum Load | 0 Watts |
| Line/Load Voltage | 120 Volts AC, 60 Hz; one single-phase feed |
| Connections | Via a CLT terminal block, sold separately; each terminal accepts one 14-10 AWG wire |
| Module Interconnect | (2) 5-pin 0.156 inch headers, Cresnet and override ports; interconnect jumpers included |
| Communications | Cresnet, via the module interconnect and a CAEN-BLOCK, sold separately |
| Enclosure | Occupies one module space in a CAEN or CAEN-MLO wall mount automation enclosure |
| Environmental | 32 to 104 degrees F (0 to 40 degrees C), 10% to 90% RH non-condensing |
