Crestron CLX-1FAN4 4-Channel Fan Speed Control Module
The CLX-1FAN4 puts ceiling fans on the Crestron lighting bus instead of leaving them on a pull chain or a separate wall control. Each of its four channels drives one fan motor at 2 Amps with four preset speeds plus off, for an 8 Amp module total on a 120 Volt single-phase feed. Because the speeds are presets rather than a continuous ramp, a scene can call a room to a known state and get it every time.
CLX modules mount in a Crestron CAEN or CAEN-MLO wall enclosure and bus their low-voltage control between one another on a five-wire link, terminating at a CAEN-BLOCK at the bottom of the cabinet, which is what keeps a large centralized system to one Cresnet drop. High-voltage wiring lands on a separate CLT terminal block, sold separately, so the electrician can terminate the feeders before the module is ever fitted.
| Type | 4-channel fan speed control module, single feed |
|---|---|
| Load Types | Ceiling fan motors |
| Load Rating | 2 Amps per channel; 8 Amps per module |
| Speeds | Four preset speed settings plus off, per channel |
| Power Requirements | 120 Volts AC, 50/60 Hz, single-phase |

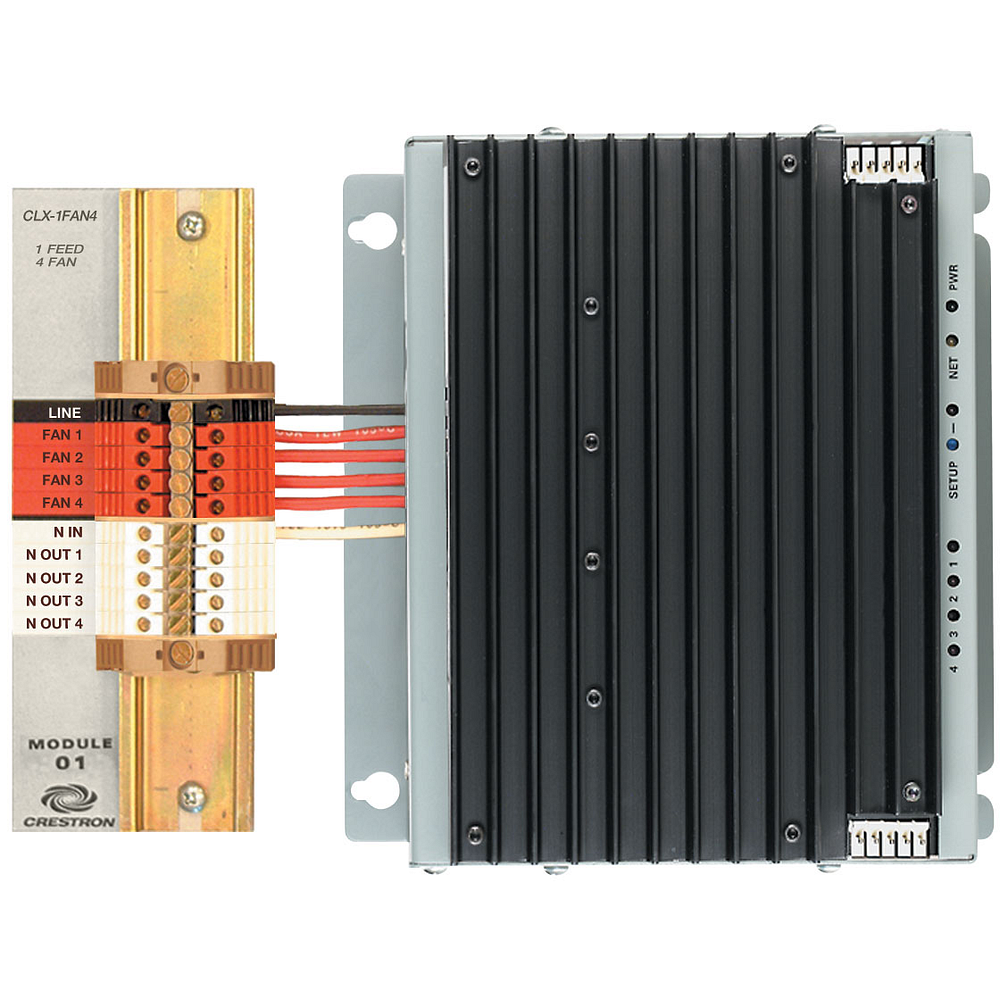

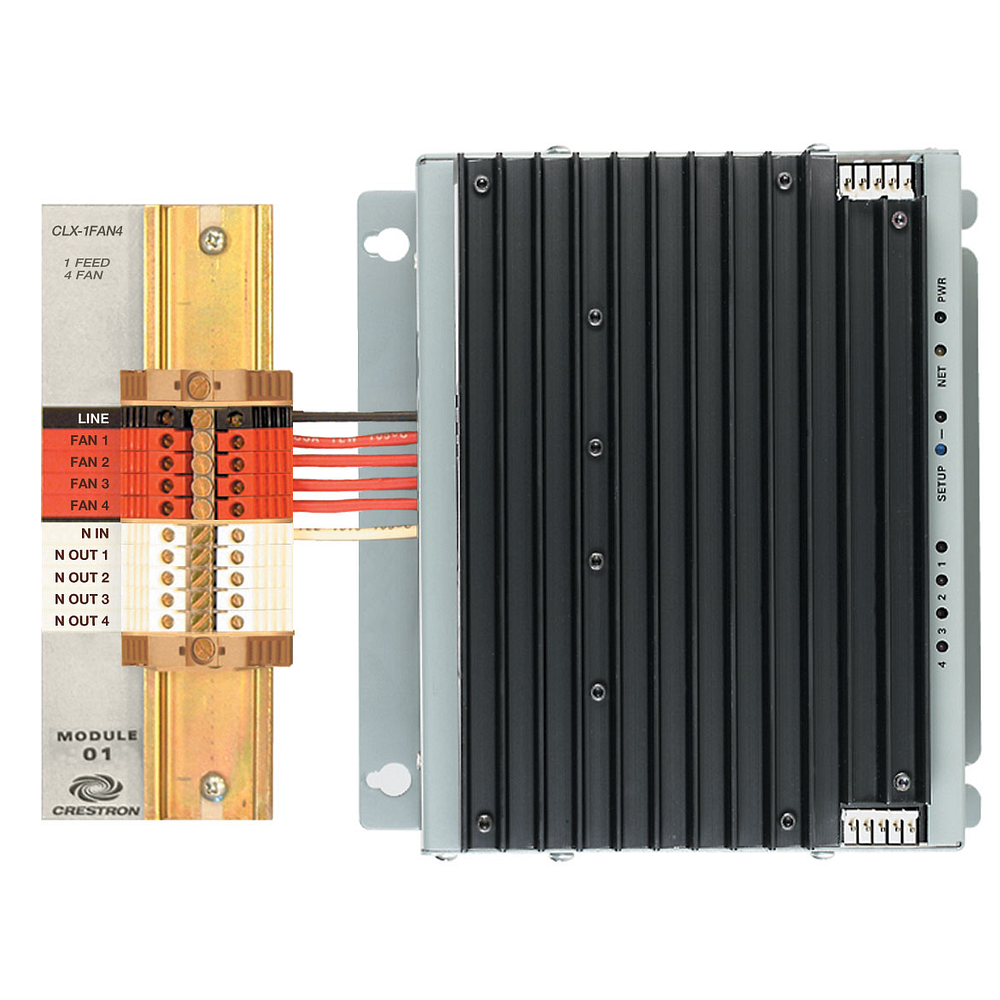

| Connections | Via a CLT terminal block, sold separately; LINE, FAN 1-4, N IN, and N OUT 1-4 DIN rail terminals |
| Indicators | PWR (green), NET (yellow), channel 1-4 status (red), SETUP (red) |
| Module Interconnect | (2) 5-pin 0.156 inch headers, Cresnet and override ports; interconnect jumpers included |
| Enclosure | Occupies one module space in a CAEN or CAEN-MLO wall mount automation enclosure |
