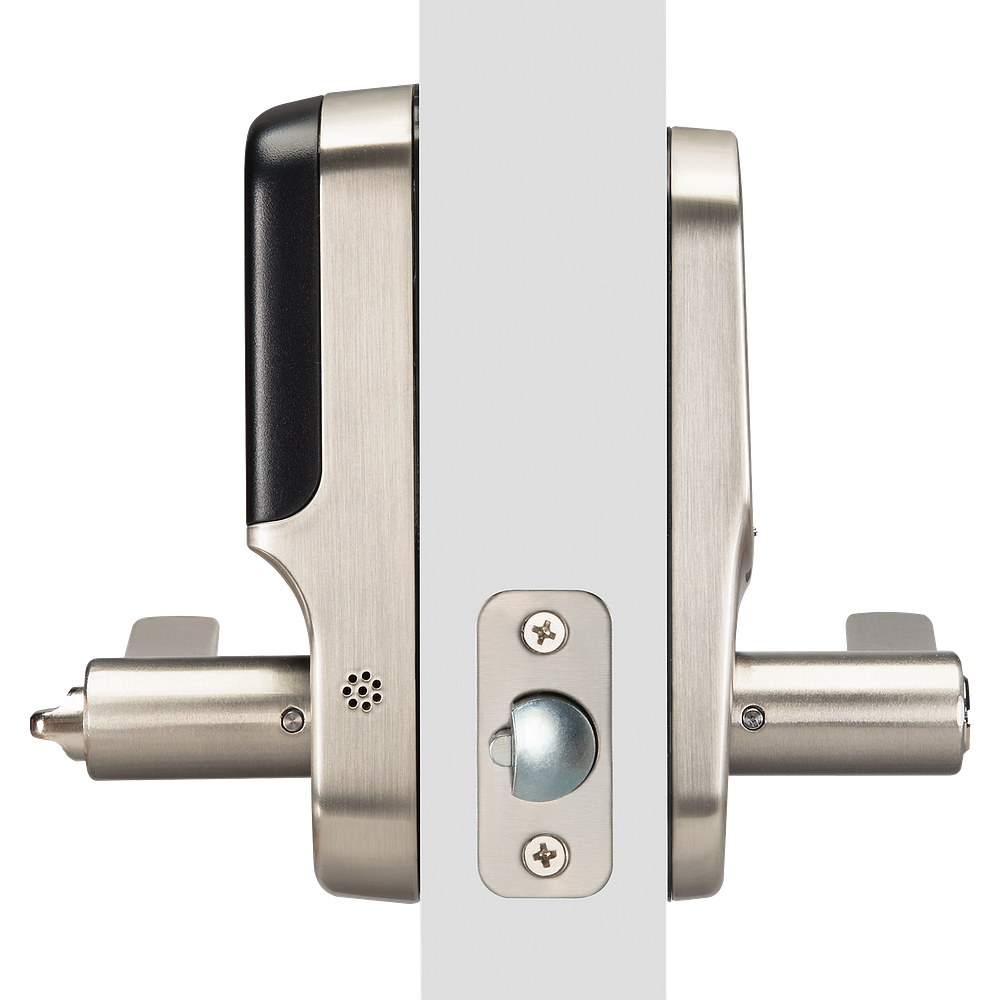

Crestron CLK-YL-YRL226-CR2 Yale Assure Lever Lock, Touchscreen Keypad
The CLK-YL-YRL226-CR2 is the touchscreen version of the Yale Real Living Assure lever lock, a projected-capacitive keypad on a BHMA Grade 2 commercial lever and latch. It suits the doors that carry no deadbolt, installs with a screwdriver on any 1 3/8 to 1 3/4 inch door, and reports to a Crestron control system over infiNET EX so lock state shows on touch screens and mobile devices.
The lock holds up to 250 unique PIN codes including a master code, and codes can be scheduled, revoked, or set to trigger a text or email alert whenever a particular door is used. Pressing any keypad button locks the door without a code, and a thumbturn works the latch from inside. A tamper alarm sounds if the exterior escutcheon is forced. Four AA alkaline cells are included, and a 9V battery held to the external terminals will power the lock if they run flat. An infiNET EX wireless gateway is required and sold separately. Stocked in satin nickel and oil rubbed bronze.
| Lock Type | Key free lever lock, reversible handing |
|---|---|

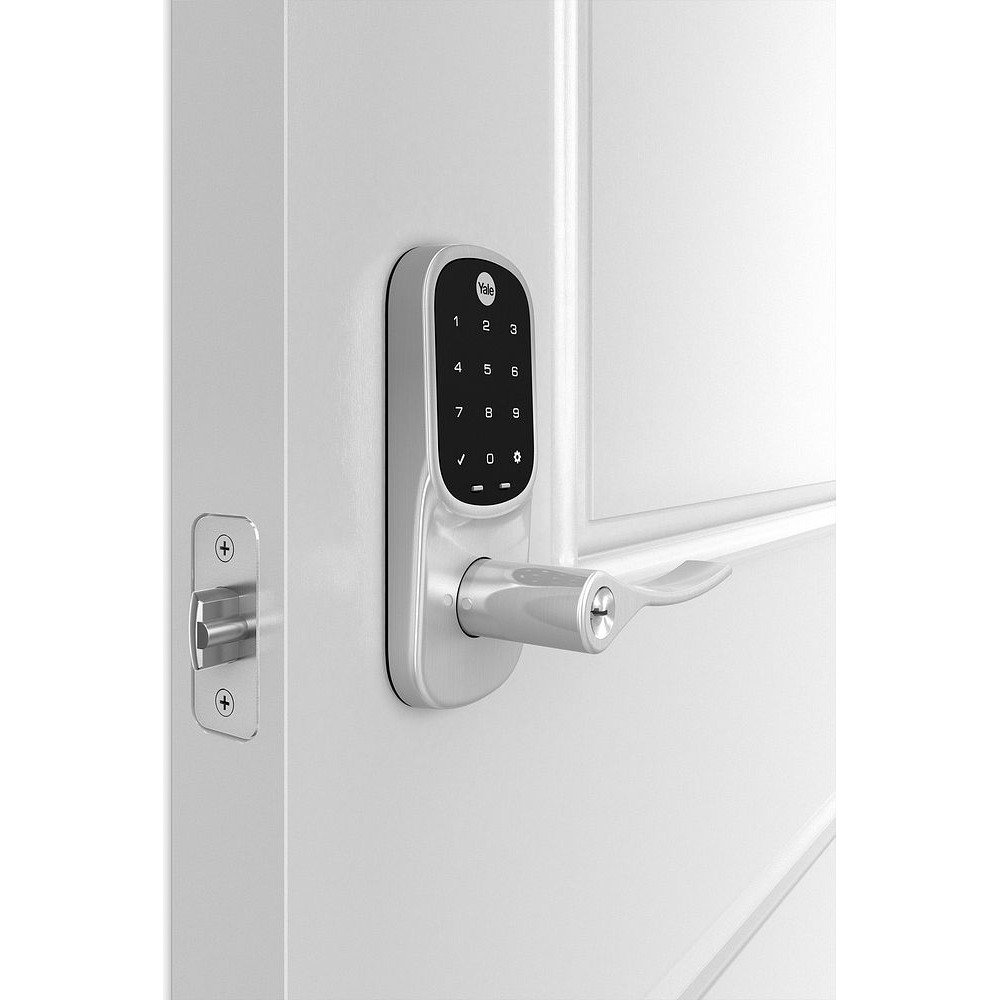

| Keypad | Projected capacitive touch screen, PIN code entry |
| Wireless | infiNET EX 2-way RF, 2.4 GHz ISM channels 11-26, IEEE 802.15.4 compliant |
| Range | 150 ft (46 m) indoor, 250 ft (76 m) outdoor to nearest mesh network device |
| Gateway | Requires an infiNET EX wireless gateway, sold separately |
| Power | (4) 1.5V AA alkaline batteries included; 9V terminals for emergency power |
| Door Thickness | 1 3/8 to 1 3/4 in. (35 to 45 mm) |
| Backset | 2 3/8 or 2 3/4 in. (61 or 70 mm), adjustable latch |
| Keyway | KW-1, 5-pin |
| Grade | Tested to ANSI/BHMA Grade 2 |
| Weight | 5 lb (80 oz) |
