Crestron CLK-YL-ANTB6XXTD-GSK Thin Door Mounting Kit for Yale nexTouch Lever Locks

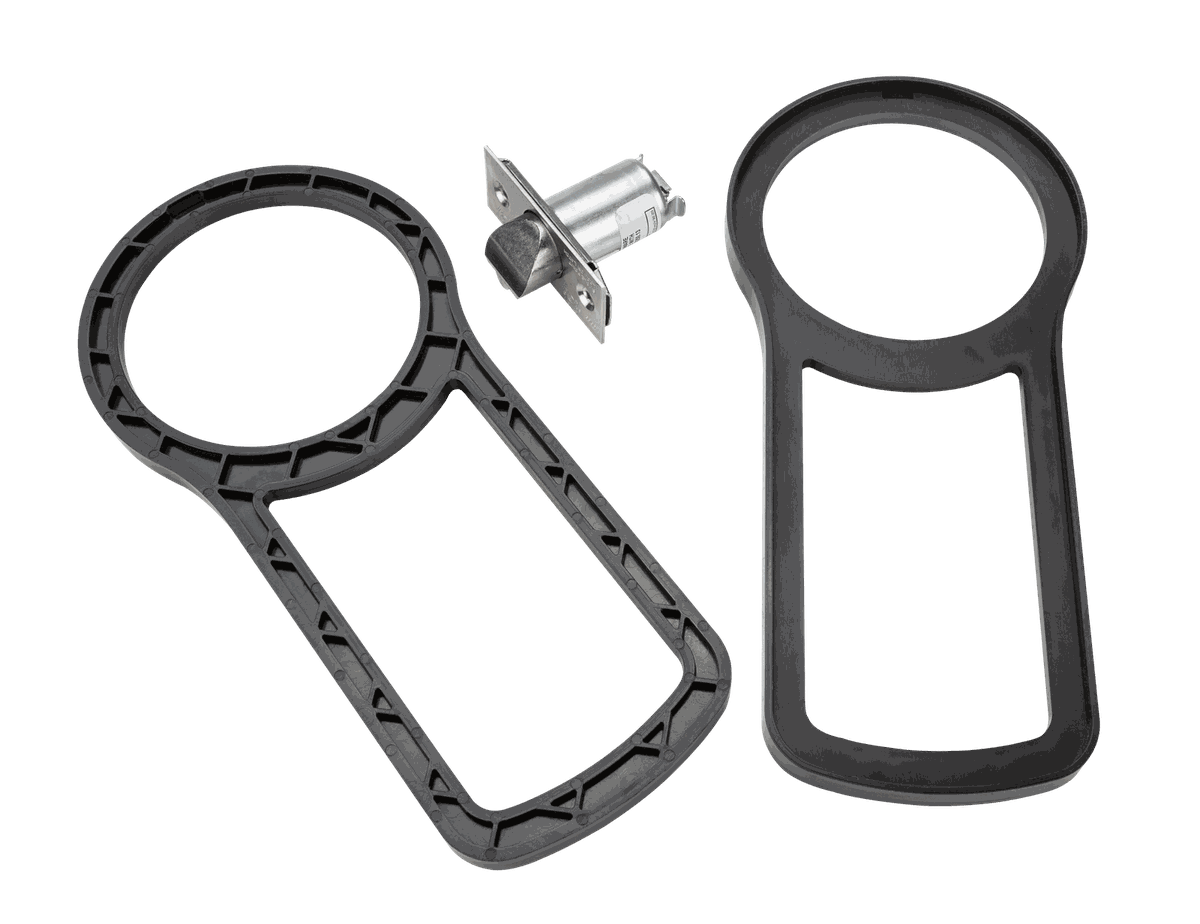

A door thinner than 1.38 in. will not accept a Yale nexTouch lever lock as supplied. The CLK-YL-ANTB6XXTD-GSK is the kit that closes that gap: two escutcheon spacers that build the door out to a usable thickness, plus a 2.36 in. (60 mm) latchbolt to suit. The spacers fit snugly between the lock and the door and also shield both against weather and scratching.

It is intended for the Yale nexTouch Lever Locks with Touchscreen Keypad, models CLK-YL-NTB620-CR2-605, -613E, -626 and -676, all sold separately. The kit is supplied in black finish only. Note that fitting the 2.36 in. latchbolt results in ANSI/BHMA Grade 2 performance from the lock.
