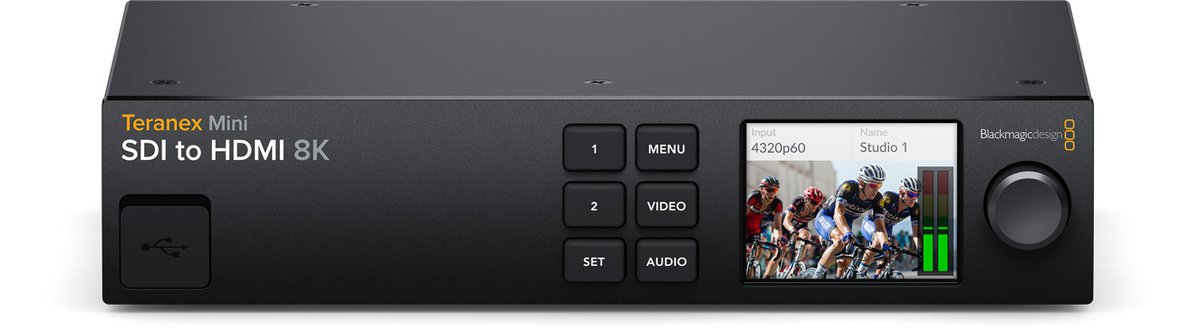

Blackmagic Teranex SDI to HDMI 8K HDR Converter

The Teranex Mini SDI to HDMI 8K HDR is an 8K monitoring converter that takes SDI sources and drives HDMI displays in all HD, Ultra HD and 8K formats up to 4320p60. Four 12G-SDI inputs auto switch across HD, 2K, 4K and 8K, with dual and quad link 12G-SDI used for 8K, and four HDMI 2.0 outputs feed single link HD, Ultra HD and 4K displays or a quad link 8K display.

Beyond format conversion it includes a built in down converter, HDR output formats, 33 point 10-bit RGB LUTs and monitor calibration for compatible displays. Built in waveform, parade, vector and histogram scopes give on-screen signal analysis, and analog audio is available on RCA. Four 12G-SDI loop outputs pass the source on to other devices.
