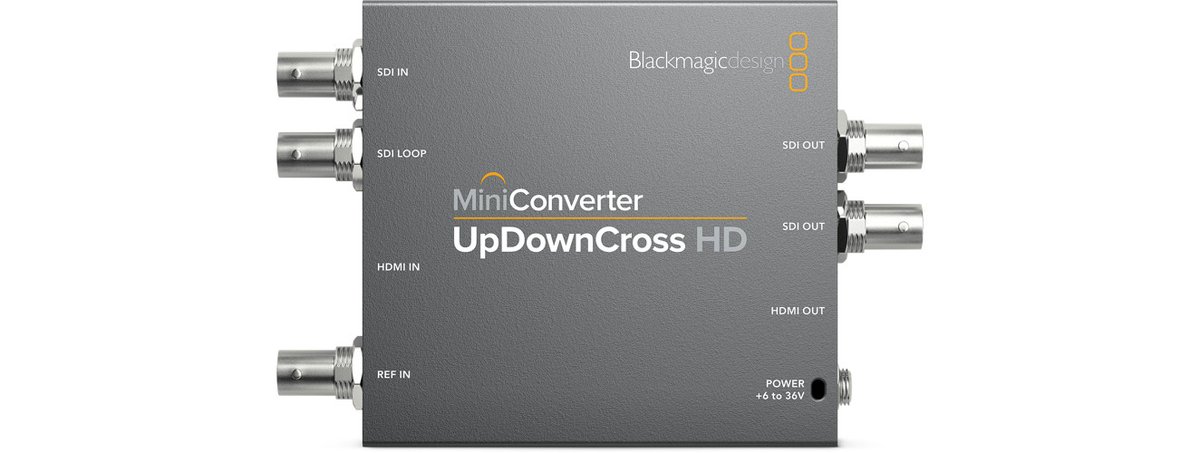

Blackmagic UpDownCross HD Mini Converter

The Blackmagic UpDownCross HD Mini Converter is a full standards converter that changes any SD or HD video format into any other SD or HD format. It handles up, down, and cross conversion, so mismatched sources and displays can be reconciled without tying up a larger frame synchronizer.

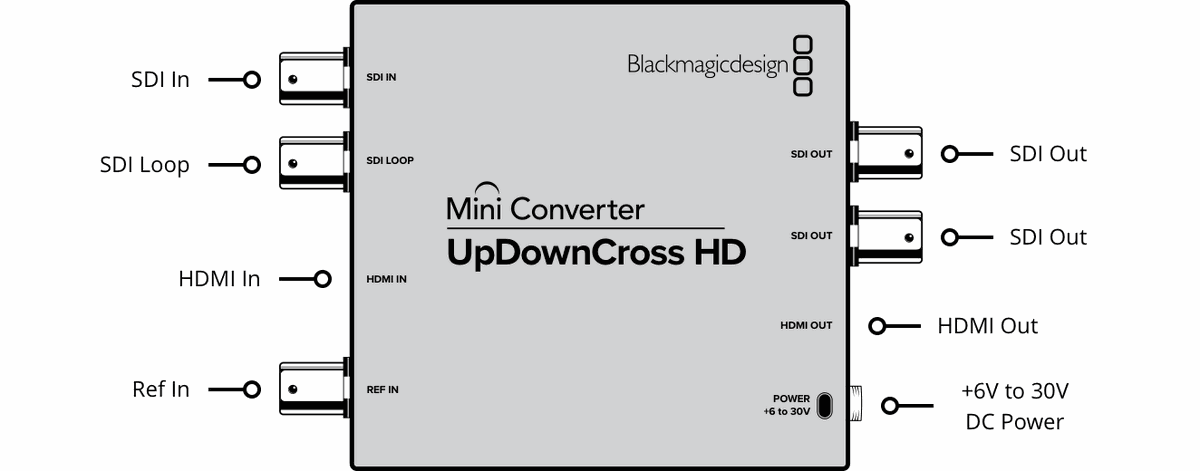

It accepts SDI up to 3G plus an HDMI Type A input, and an external reference input lets the output genlock to house sync. Outputs include an SDI loop, two additional SDI outputs, and an HDMI Type A output that reads the connected monitor's EDID. The unit runs on an included +12V universal power supply.
