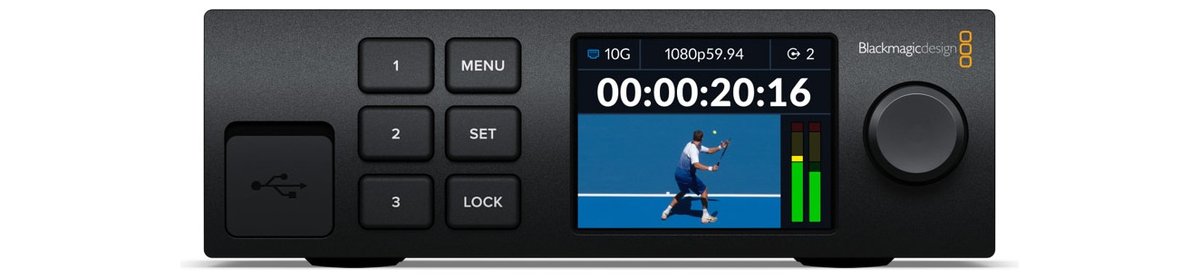

Blackmagic 2110 IP Converter 3x3G

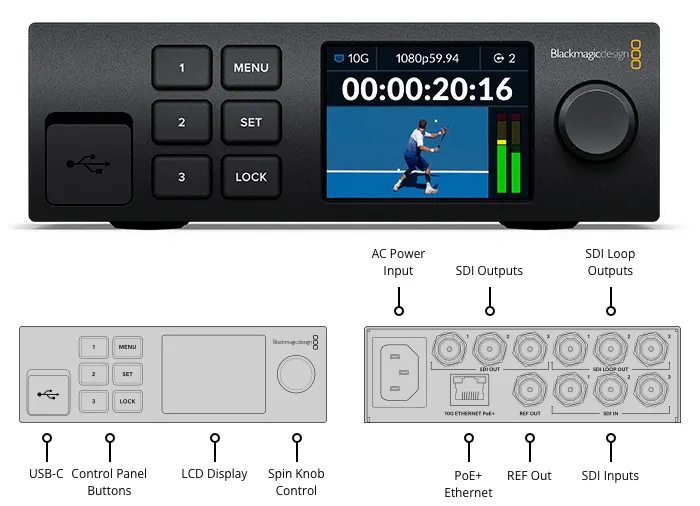

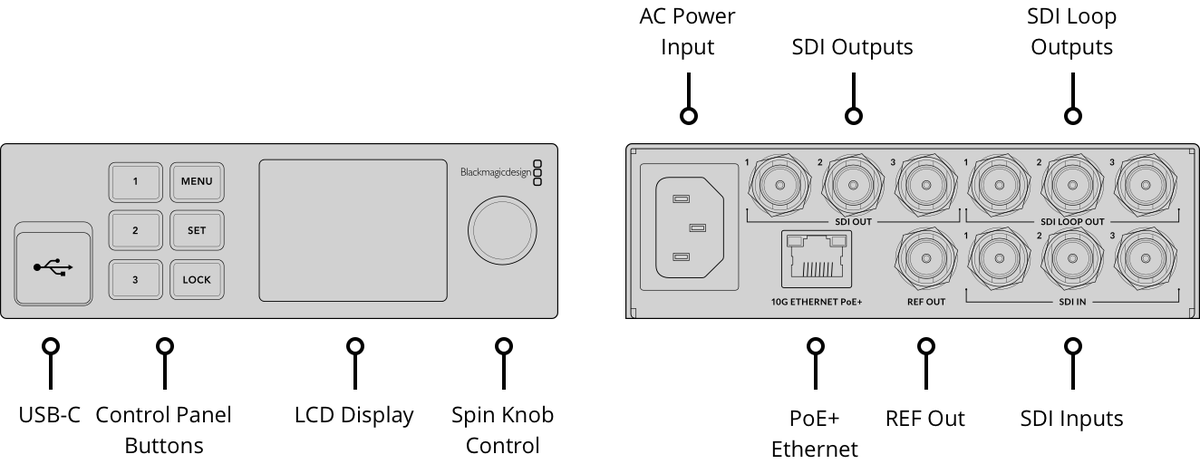

The Blackmagic 2110 IP Converter 3x3G moves three SDI signals onto a SMPTE-2110 IP network and back again over a single 10G Ethernet connection. Each of the three 3G-SDI inputs includes a loop output, so the converter drops into an existing SDI chain without breaking it, while the 10G Ethernet link carries three video inputs and three video outputs, each up to 1080p60 with up to 16 channels of embedded audio plus ancillary data. It is a compact, cost-effective way to bring cameras and other SDI sources into an IP broadcast plant.

The converter is fully standards-based, supporting SMPTE-2110-20 uncompressed video, 2110-21 timing, 2110-30 audio and 2110-40 ancillary data, with a reference output for Tri-Sync or Black Burst to lock it to house sync. A front-panel color LCD handles monitoring, menus and diagnostics, and a USB-C port covers updates, configuration and control. It runs on standard 100 to 240V AC.
