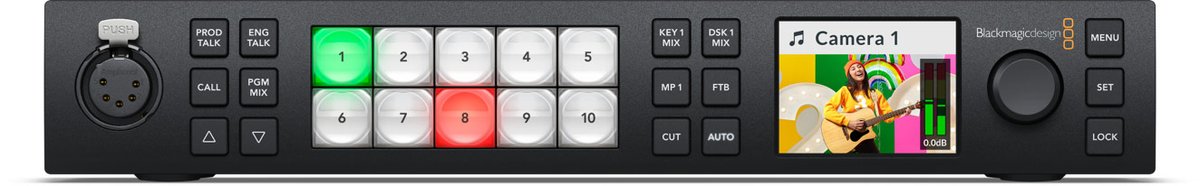

Blackmagic ATEM 1 M/E Constellation HD

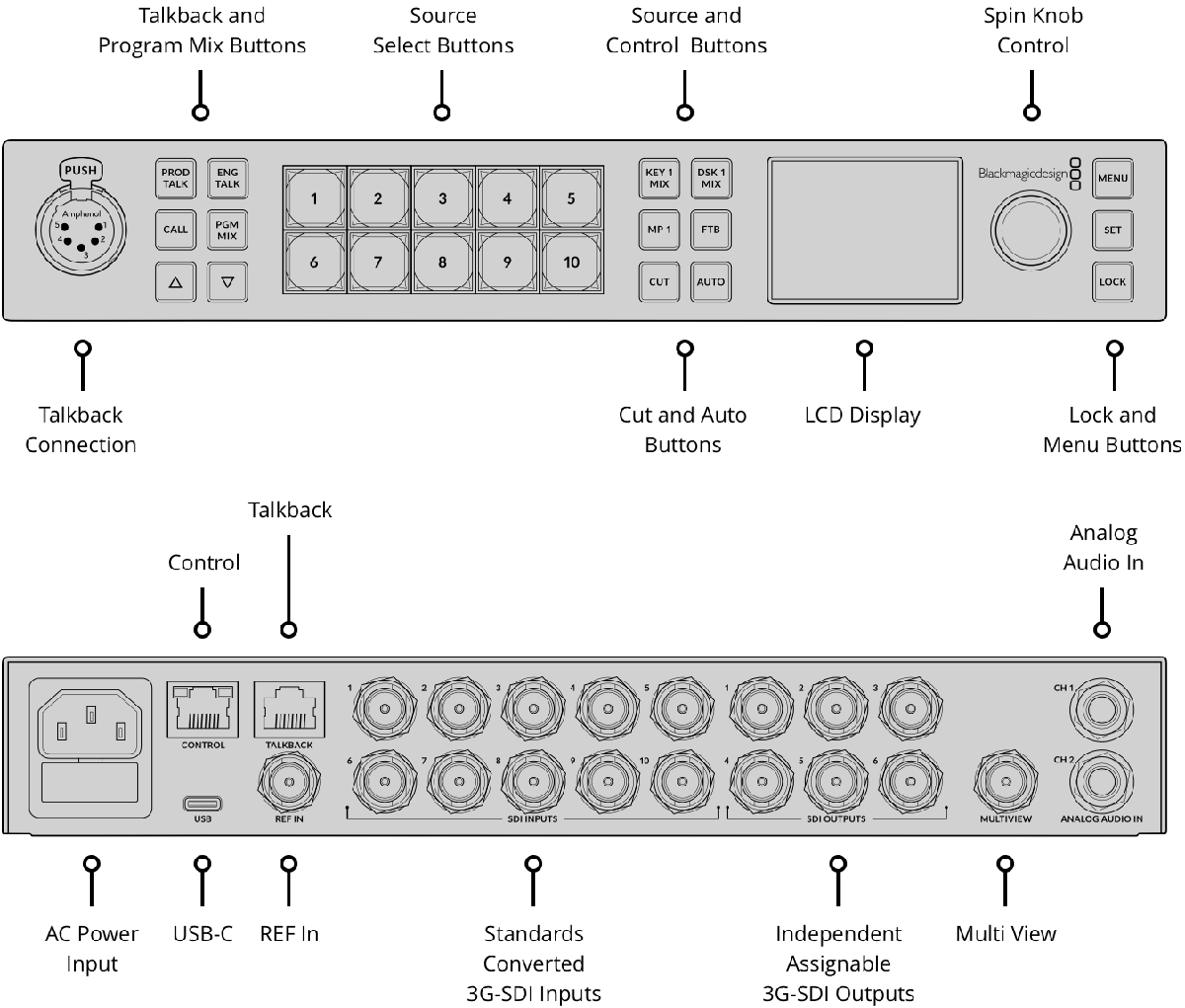

The ATEM 1 M/E Constellation HD is a single M/E live production switcher built for HD broadcast and streaming work. Its ten 3G-SDI inputs each carry standards conversion and frame resync, so you can feed in cameras and sources running different HD formats and the switcher locks them together. Alongside the ten inputs are six independent 3G-SDI aux outputs and a USB webcam output, plus DVE, ATEM Advanced Keyers, media players, and a multiview for confident program cutting.

Audio runs through a built in 28 channel Fairlight mixer with EQ and dynamics, and talkback is integrated for communicating with camera operators. The reference input accepts Tri-Sync or Black Burst, and the webcam output delivers 720p or 1080p over USB-C. The 1RU chassis connects to the optional ATEM 1 M/E Advanced Panel over Ethernet, directly or across a network. Blackmagic part number BMD-SWATEMSCN2/1ME1/HD.
