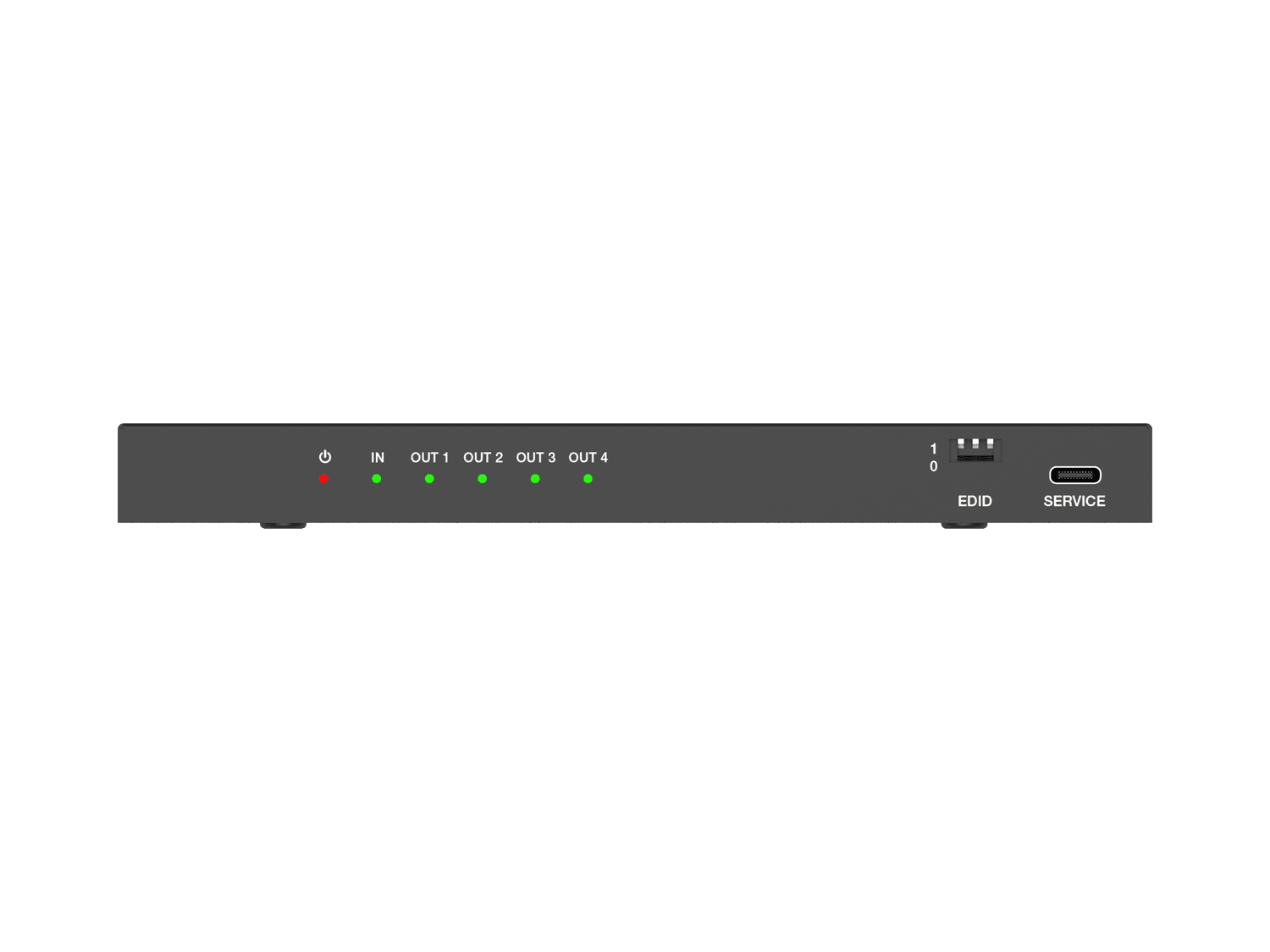

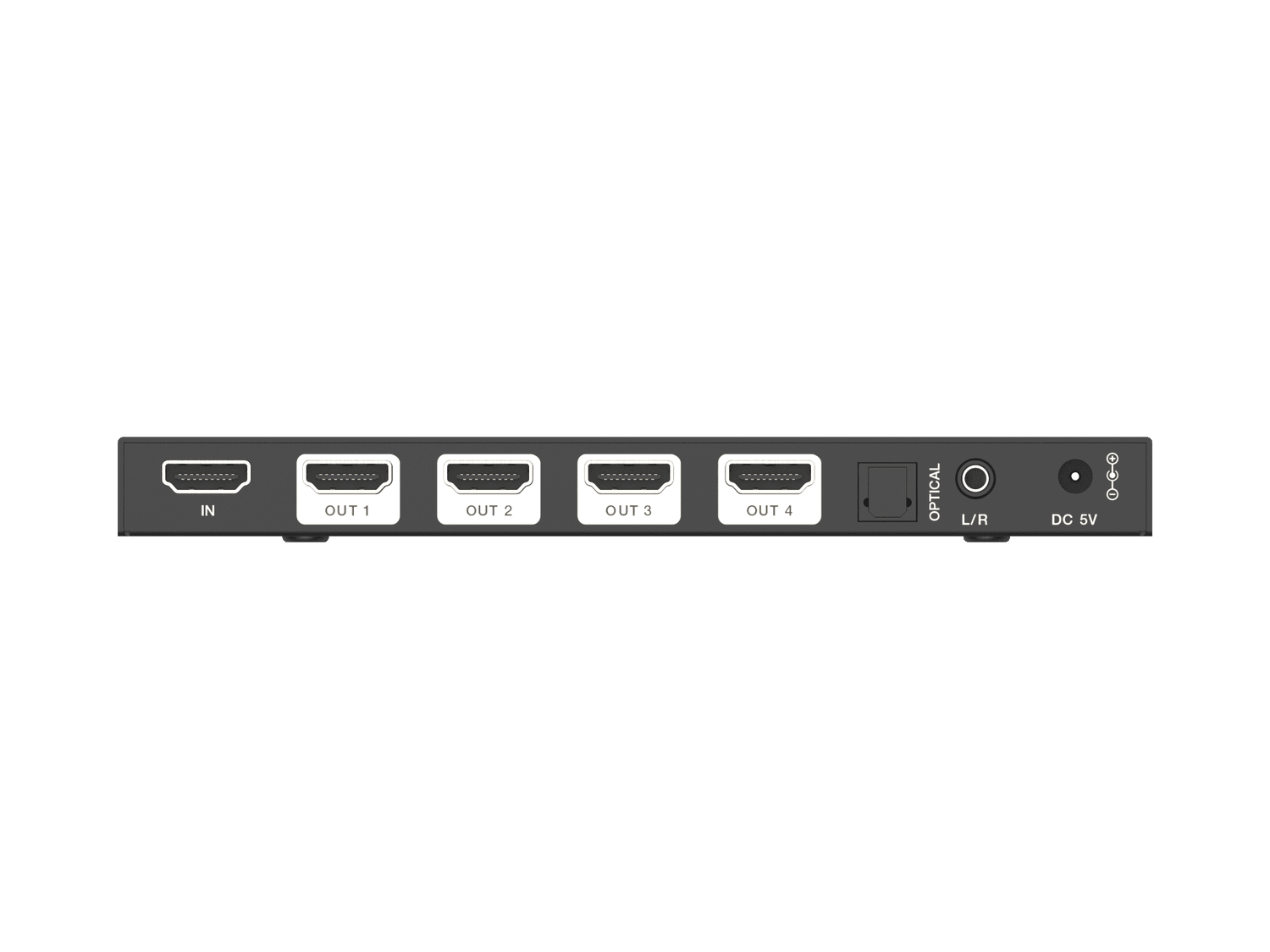

VigilLink VLSP-14H21SA 1x4 HDMI 2.1 Splitter with Audio De-Embedder

The VLSP-14H21SA distributes a single 8K HDMI source to up to four displays at resolutions to 8K@60Hz 4:2:0 12-bit and data rates to 48Gbps, under HDMI 2.1 and HDCP 2.3.

It adds EDID management, cable equalization, and resolution downscaling so a lower-resolution display on one output stays compatible, plus audio de-embedding for an external sound system.

HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2/1.x
Video Bandwidth	594MHz/18Gbps
Video Resolution	Up to 4k2k@50/60Hz 4:4:4
Input	1xHDMI Type A (19-pin female)
Output	16xHDMI Type A (19-pin female)
HDMI Audio Formats	PCM2.0/5.1/7.1CH, Dolby 5.1, DTS5.1, Dolby- TrueHD
Color Space	RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2/4:2:0
