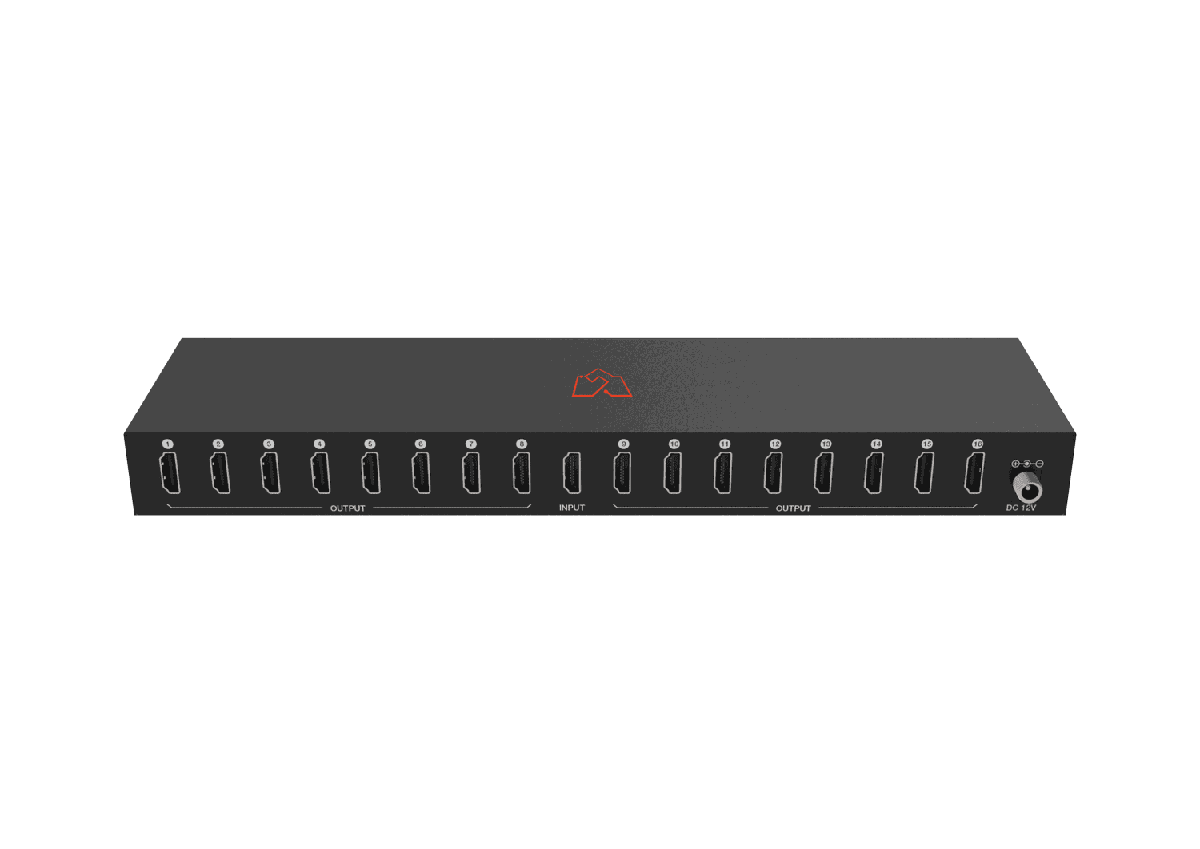

VigilLink VLSP-16H20 1x16 HDMI 2.0 Splitter, 18Gbps

The VLSP-16H20 distributes one HDMI source to as many as sixteen displays at up to 4K@60Hz 4:4:4 across 18Gbps of bandwidth. It is the piece for a sports bar, a retail wall, or a signage run where one feed has to land everywhere at once.

EDID management handles the mixed displays such a system usually ends up with, and HDR, HDR10, HDR10+, HLG, and Dolby Vision all pass through. Digital audio support includes DTS-HD, Dolby TrueHD, and LPCM 7.1, and the unit is HDMI 2.0b, HDCP 2.2/1.x, and DVI 1.0 compliant.

HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2/1.x
Video Bandwidth	594MHz / 18Gbps
Video Resolution	Up to 4k2k@50/60Hz 4:4:4
Input	1x HDMI Type A (19-pin female)
Output	16x HDMI Type A (19-pin female)
HDMI Audio Formats	PCM2.0/5.1/7.1CH, Dolby 5.1, DTS5.1, Dolby- TrueHD, DTS-HD
Color Depth	8-bit,10-bit,12-bit(1080p@60Hz) 8-bit (4K2K@60Hz YUV4:4:4) 8-bit,10-bit,12-bit (4K2K@60Hz YCbCr 4:2:2/4:2:0)
