VigilLink VLWP-DHU-TR 2x1 HDBaseT Wall Plate with Mini DisplayPort, HDMI and USB 2.0

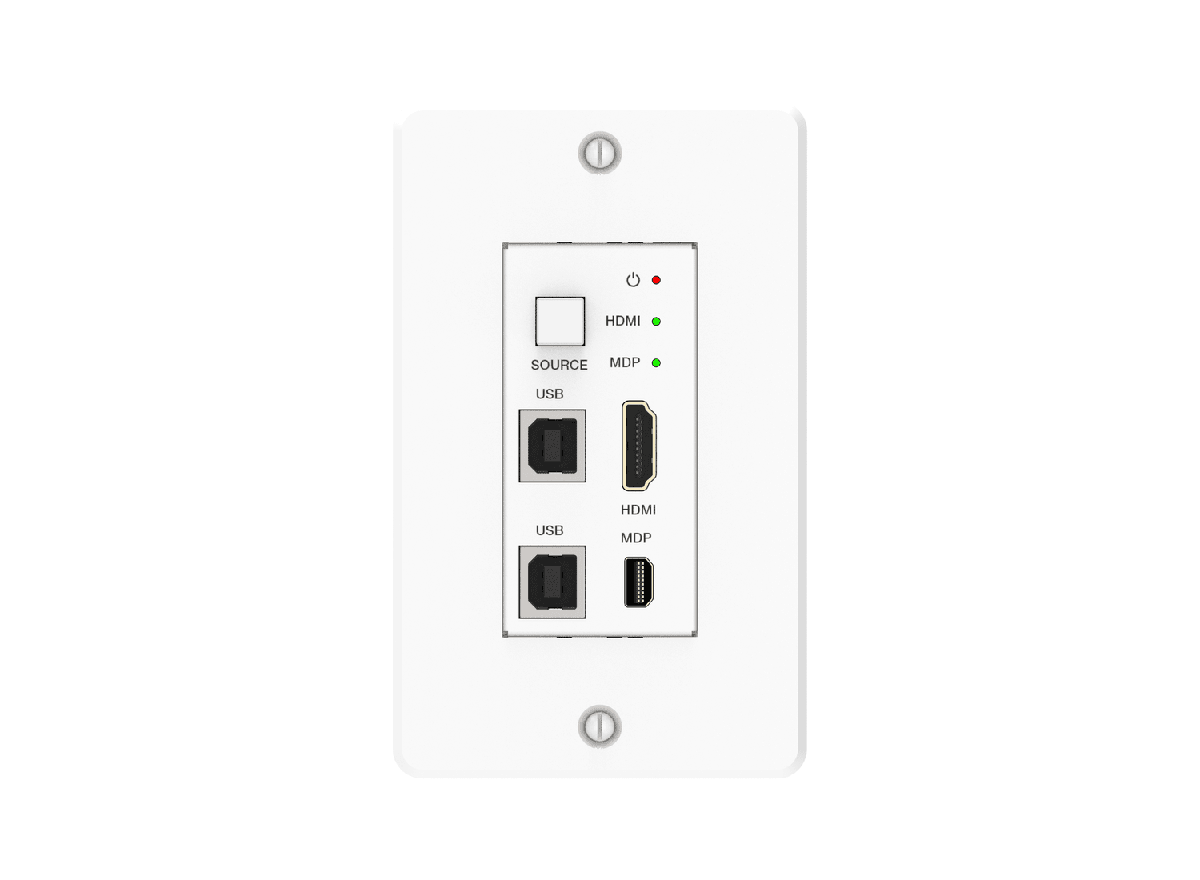

The VLWP-DHU-TR is a 2x1 in-wall switcher and HDBaseT transmitter with HDMI and DisplayPort inputs, in a US one-gang Decora enclosure with interchangeable black and white faceplates.

Video runs to 4K UHD at 60Hz 4:4:4 and USB 2.0 extension travels with it, so a camera, a touch panel, or a keyboard at the display end reaches the laptop at the plate. Auto-switching handles source selection.

HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2
Video Bandwidth	18Gbps
Video Resolution	4096x2160@24/25/30/50/60Hz, 3840x2160@24/25 /30/50/60Hz, 2048x1080p, 1080p@23.98/24/25/ 29.97/30/50/59.94/60Hz, 1080i@50/59.94/60Hz, 720p@50/59.94/60Hz, 576p, 576i, 480p, 480i
Inputs	1 x HDMI Type A [19-pin female] 2 x USB-B 1 x miniDP [20-pin female]
Outputs	1x HDMI OUT [Type A, 19-pin female] 1x AUDIO OUT [Phoenix jack]
Output	1 x HDBaseT Out [RJ45, 8-pin female]
Transmission Distance	Max distance (1080p) : 230ft / 70m over CAT6/6a/7 Max
