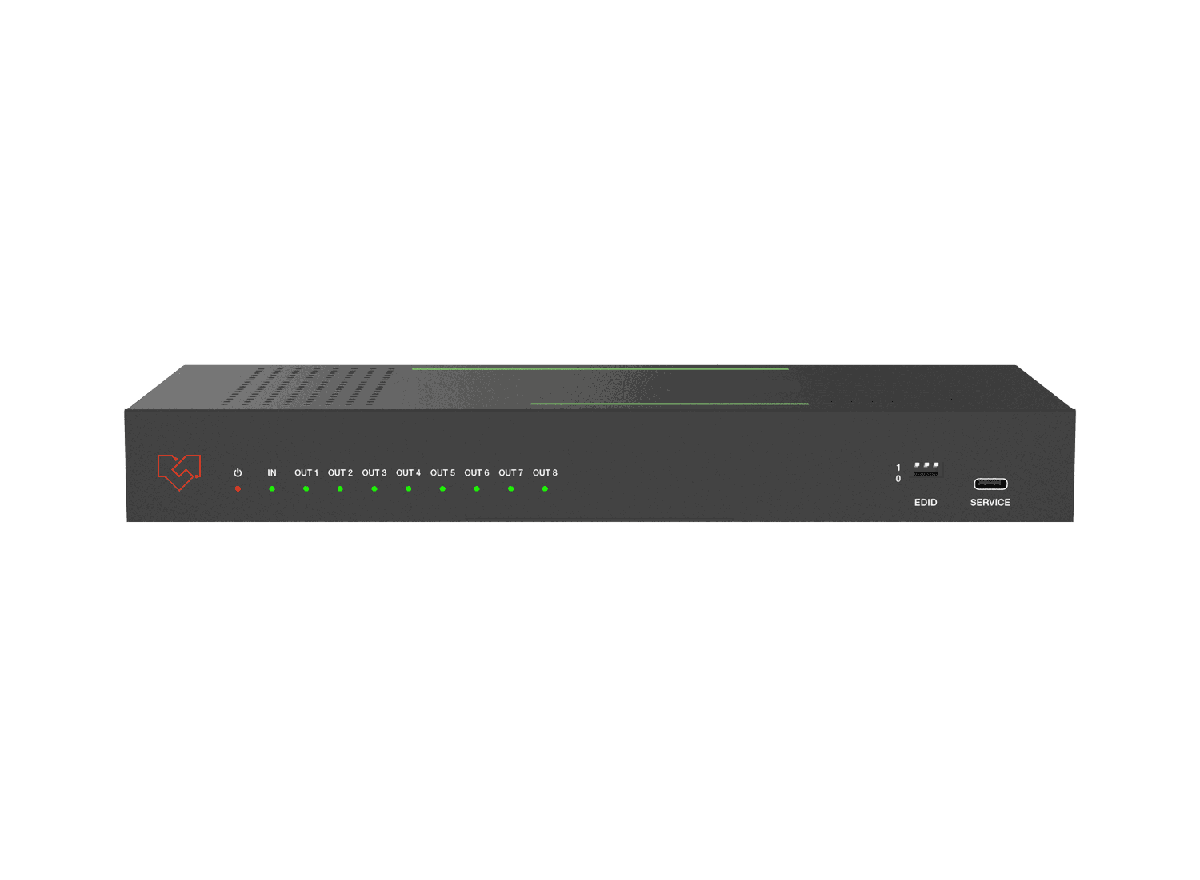

VigilLink VLSP-18H21S 1x8 HDMI 2.1 Splitter, 48Gbps

The VLSP-18H21S distributes a single HDMI source to as many as eight displays at up to 8K@60Hz 4:2:0 12-bit and 4K@120Hz 4:4:4, with 48Gbps FRL and 18Gbps TMDS bandwidth under HDCP 2.3.

HDMI 2.1 features including VRR, ALLM, QMS, QFT, and SBTM are supported, so gaming and variable-frame sources behave correctly on every output. EDID management and cable equalization hold the signal together across eight legs.

HDMI Compliance	HDMI 2.1
HDCP Compliance	HDCP 2.3
Video Bandwidth	48Gbps
Video Resolution	Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit
Output	8 x HDMI OUT [Type A, 19-pin female]
Audio Formats	HDMI input/output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
Color Space	RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0
Color Depth	8/10/12bit
