VigilLink VLSP-AS12H20 1x2 HDMI 2.0 Splitter with Audio De-Embedding

The VLSP-AS12H20 distributes one HDMI source to two displays at up to 4K@60Hz 4:4:4 under HDCP 2.2, and pulls the audio out to optical and analog outputs at the same time. That covers the common case of two screens and a separate sound system.

Output bypass and a 4K-to-1080p downscale function let a legacy display share the splitter with a UHD one. EDID settings handle the negotiation between mixed sources and displays, and the unit is HDMI 2.0b with HDCP 2.2 and 1.4 compliance.

HDMI Compliance	HDMI 2.1
HDCP Compliance	HDCP 2.2 and HDCP 1.4
Video Bandwidth	18Gbps
Video Resolution	720P50/60Hz, 1080P50/60Hz, 4K2K24Hz, 4K2K30Hz, 4K2K@50/60Hz (4:4:4)
Input ports	1x HDMI Type A [19-pin female]

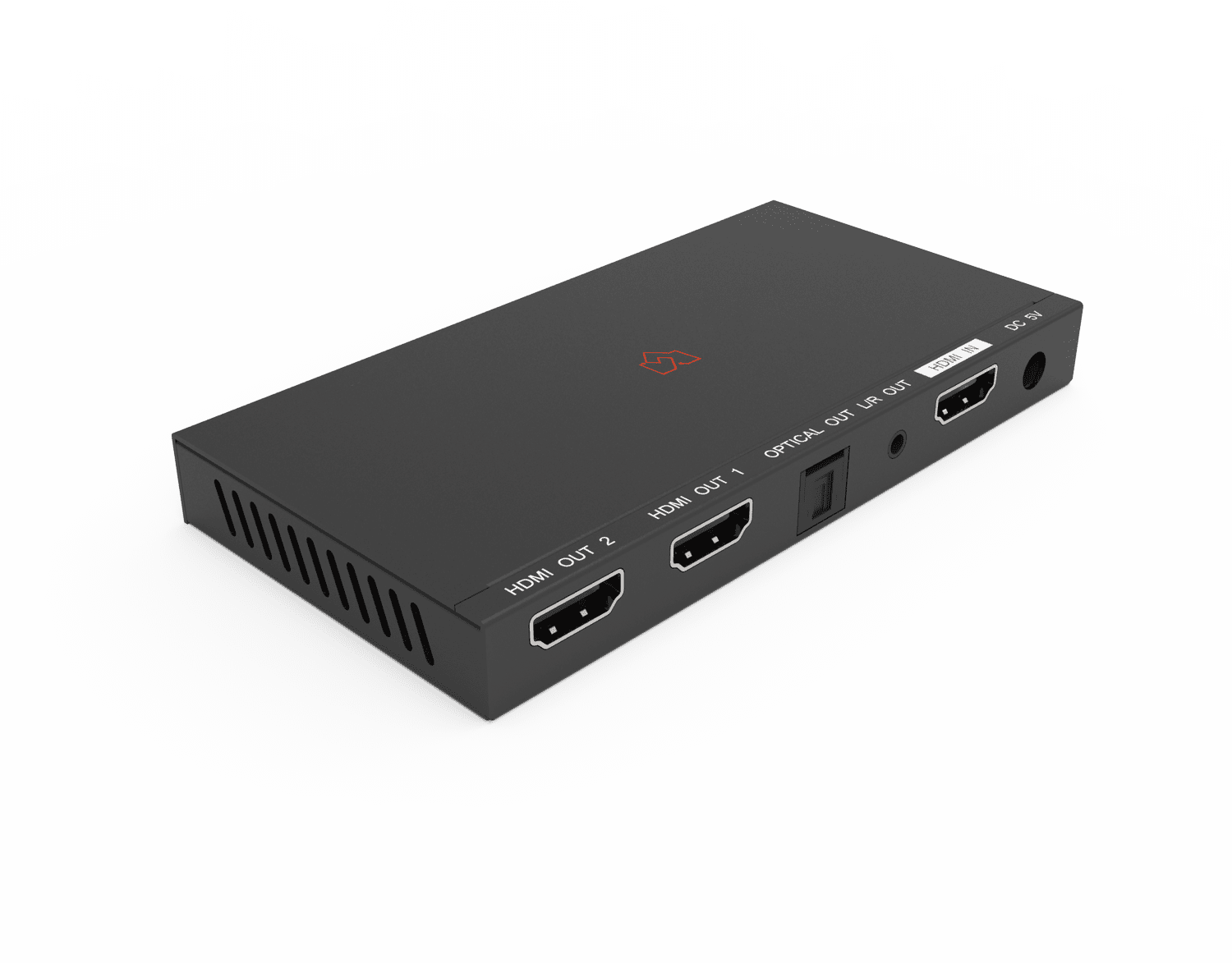

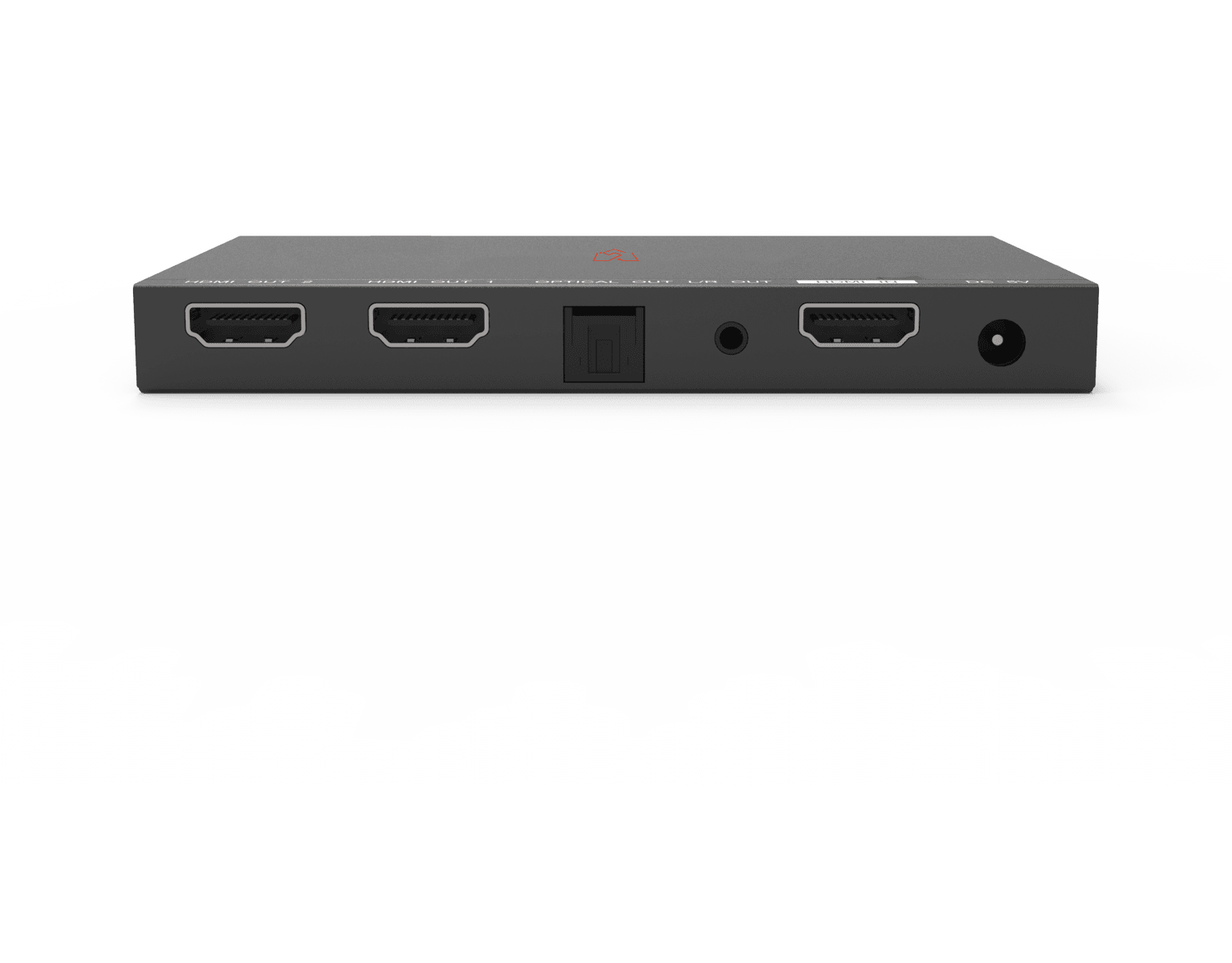

Output ports	2x HDMI Type A [19-pin female] 1x L/R Audio out [3.5mm Stereo Mini-jack] 1x Optical out [S/PDIF]
HDMI Audio Formats	LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
Optical Audio Formats	LPCM [2.0/2.1]CH, Dolby 5.1, Dolby True HD, Dolby DD+, DTS 5.1, DTS-ES 6, DTS-HDMA 5.1, DTS HD-HRA 5.1
