VigilLink VLSP-AS14H20 1x4 HDMI 2.0 Splitter with Audio De-Embedding

The VLSP-AS14H20 distributes a single HDMI source to four displays at up to 4K@60Hz 4:4:4 under HDCP 2.2, extracting audio to both optical and analog outputs for an external sound system.

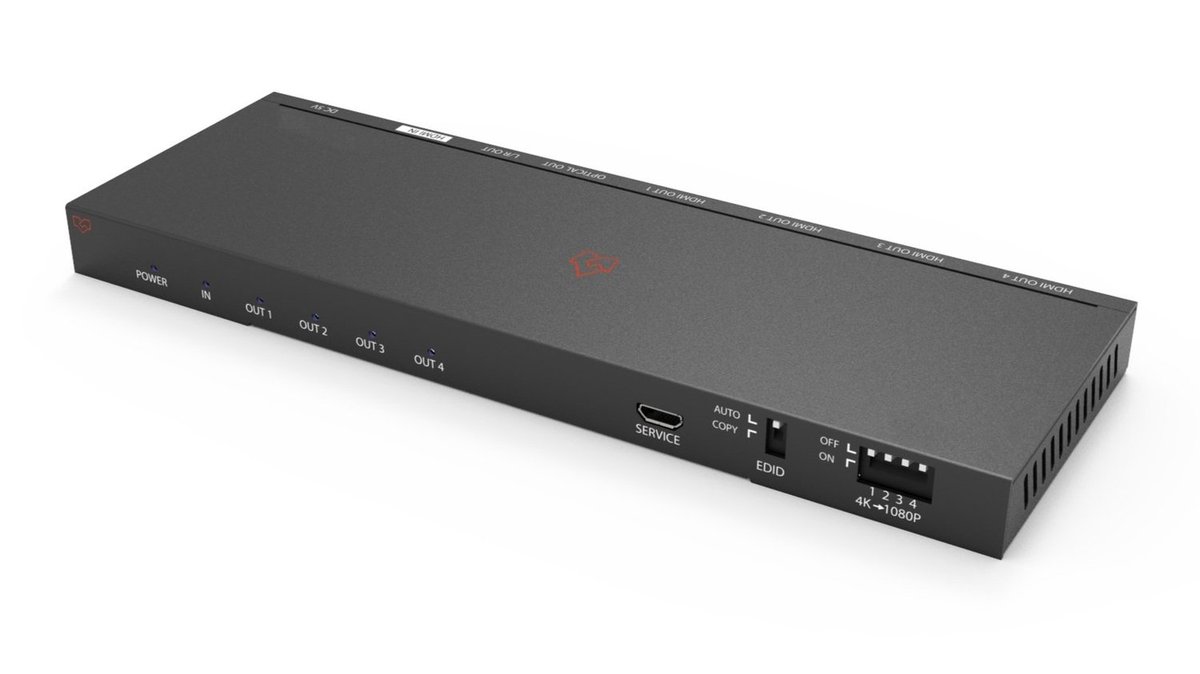

EDID management includes COPY and AUTO modes, and output bypass with 4K-to-1080p downscaling keeps a lower-resolution display compatible. The unit is HDMI 2.0b with HDCP 2.2 and 1.4 compliance.

HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2 and HDCP 1.4
Video Bandwidth	18Gbps
Video Resolution	720P50/60Hz, 1080P50/60Hz, 4K2K24Hz, 4K2K30Hz, 4K2K@50/60Hz (4:4:4)
Input ports	1xHDMI Type A [19-pin female]

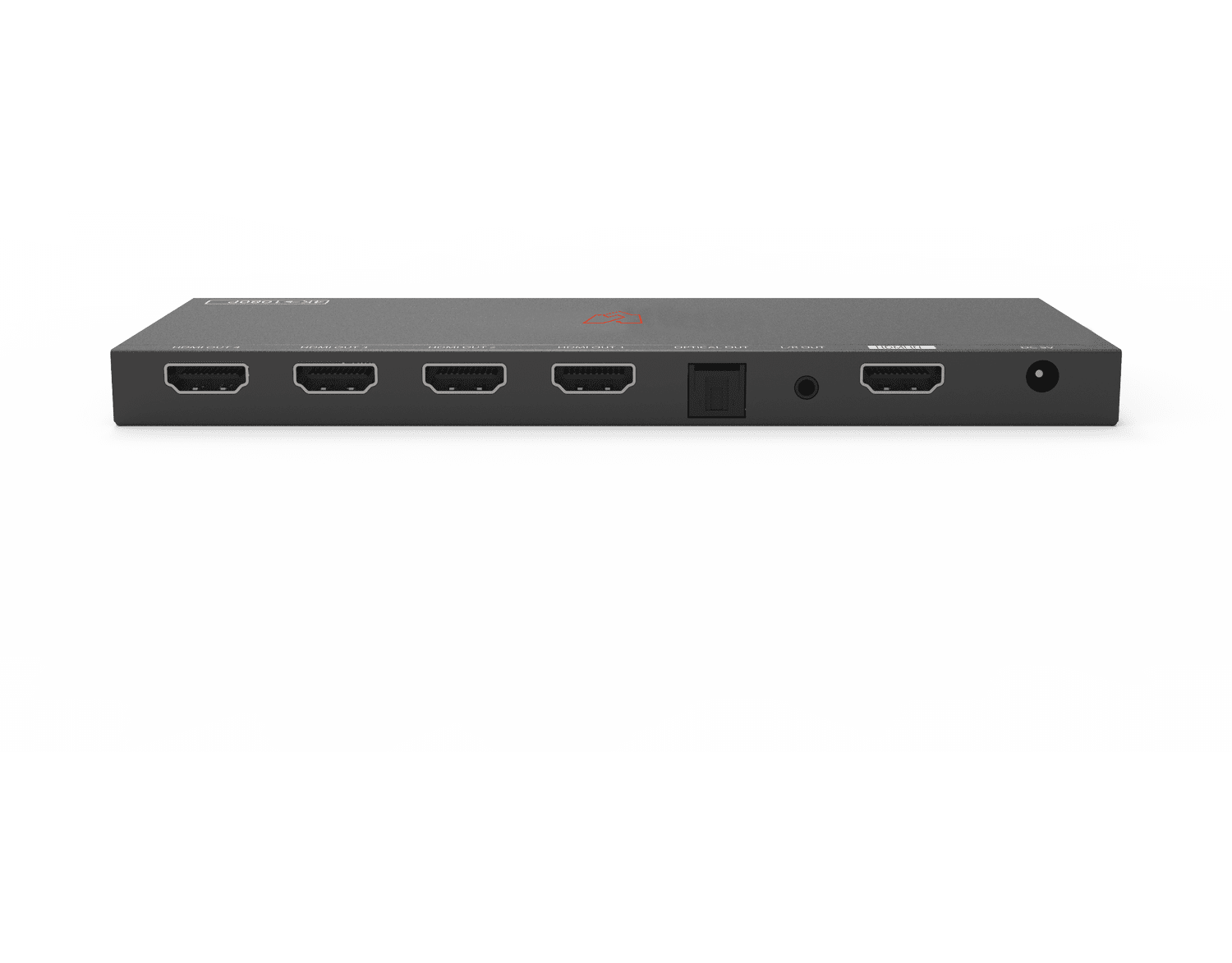

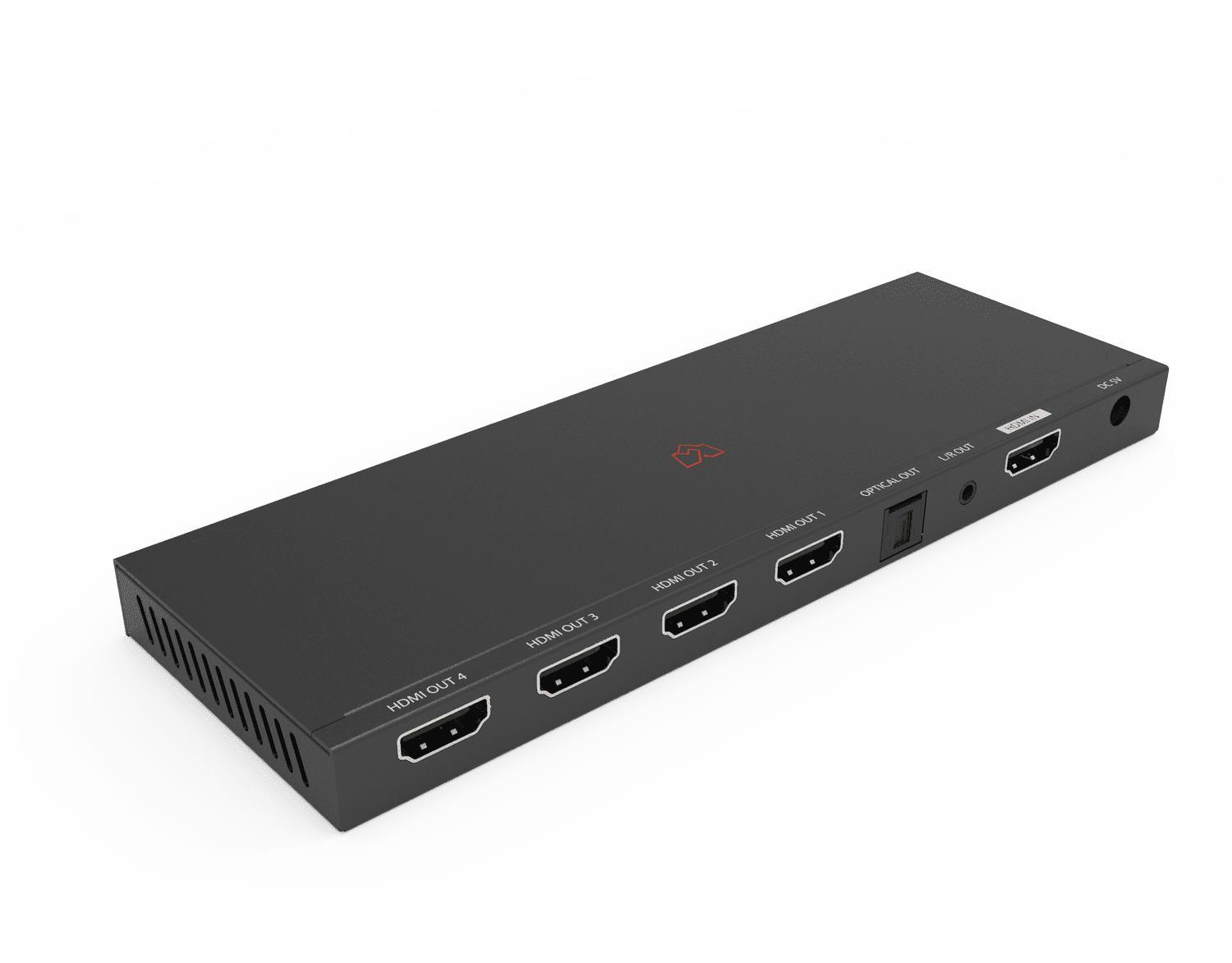

Output ports	4xHDMI Type A [19-pin female] 1xL/R Audio out [3.5mm Stereo Mini-jack] 1xOptical out [S/PDIF]
HDMI Audio Formats	LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
Optical Audio Formats	LPCM [2.0/2.1]CH, Dolby 5.1, Dolby True HD, Dolby DD+, DTS 5.1, DTS-ES 6, DTS-HDMA 5.1, DTS HD-HRA 5.1
