VigilLink VLWP-DHS-TR 2x1 HDBaseT Wall Plate with Mini DisplayPort, HDMI and RS-232

The VLWP-DHS-TR is a 2x1 in-wall switcher and HDBaseT transmitter taking HDMI and DisplayPort inputs in a US one-gang Decora opening, with interchangeable black and white faceplates supplied.

Video reaches 4K2K at 50/60Hz 4:4:4 over the HDBaseT link, with RS-232 pass-through alongside it so a control system can reach the display from the rack. Auto-switching selects whichever source has just been connected.

HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2
Video Bandwidth	DP: 5.4 Gbps
Video Resolution	480i~1080p50/60Hz, 4Kx2K@24/30Hz, 4k2k@60Hz
Inputs	1 x HDMI Type A [19-pin female] 1 x miniDP [20-pin female]
Outputs	1x HDMI OUT [Type A, 19-pin female] 1x AUDIO OUT [Phoenix jack]

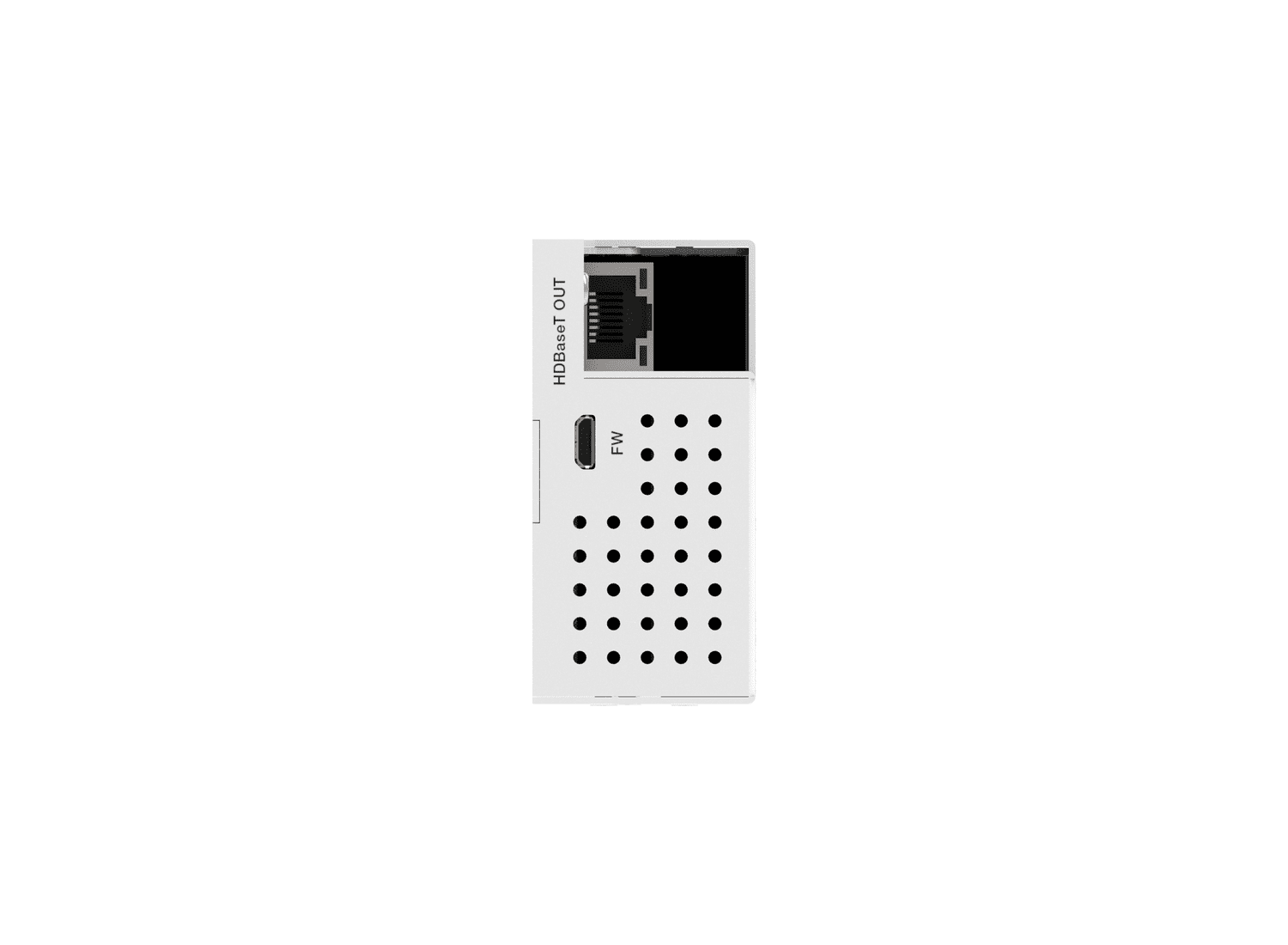

Output	1 x HDBaseT Out [RJ45, 8-pin female]
Transmission Distance	Max distance (1080P) : 230ft / 70m over CAT6/6a/7 Max
