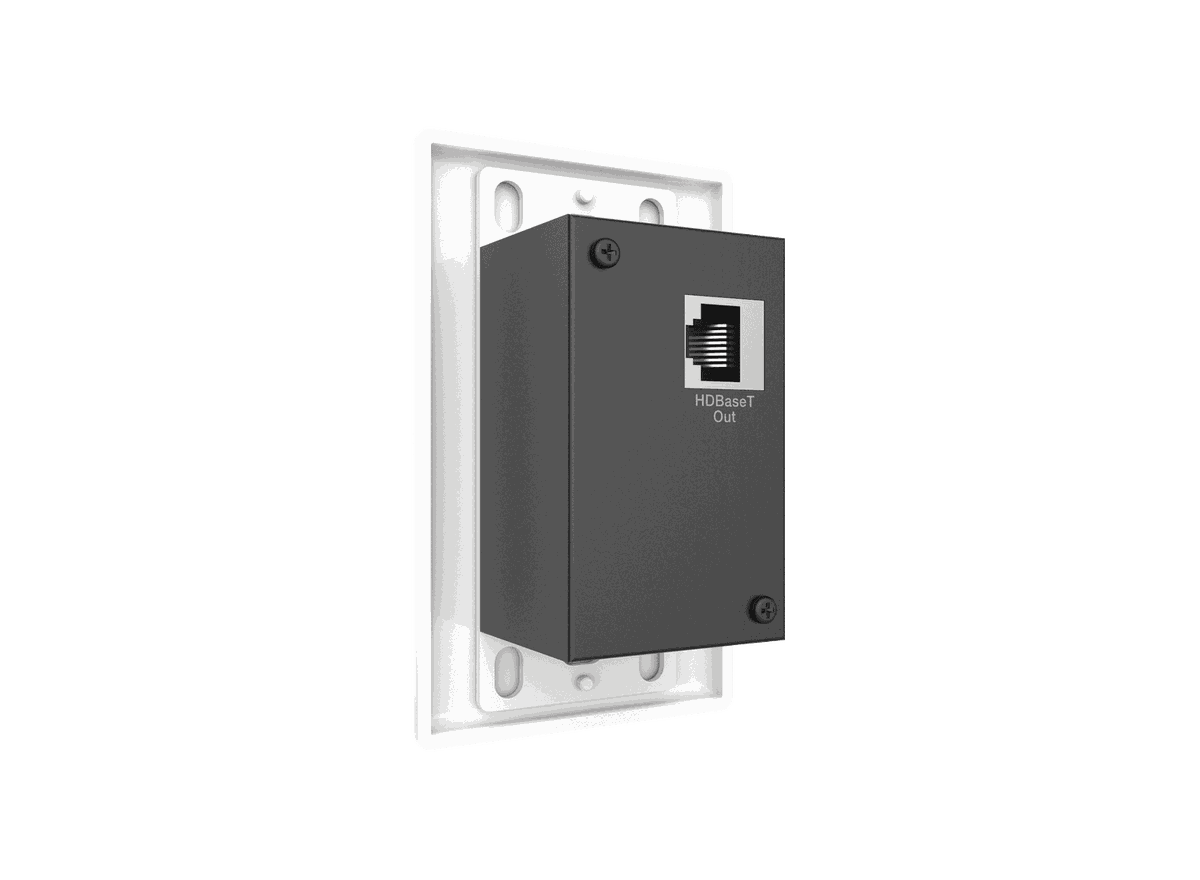

VigilLink VLWP-UHC-TR 2x1 HDBaseT Wall Plate with USB-C and HDMI

The VLWP-UHC-TR is a 2x1 in-wall switcher and CAT transmitter with HDMI and USB-C inputs, in a US one-gang Decora opening with interchangeable black and white faceplates supplied.

Video runs to 4K2K at 50/60Hz 4:4:4 over standard Cat6 cable, with auto or manual source switching. Power over Cable removes the need for a supply at the plate.

HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2
Video Bandwidth	USB-C: 5.4 Gbps
Video Resolution	480i~1080p50/60Hz, 4Kx2K@24/30Hz, 4k2k@60Hz
Inputs	1 x HDMI Type A [19-pin female] 1 x USB-C
Input	1x CAT IN [RJ45, 8-pin female]
Outputs	1 x CAT6 OUT [RJ45, 8-pin female] 1x USB-C (only for charging)
Output	1x HDMI OUT [Type A, 19-pin female]
