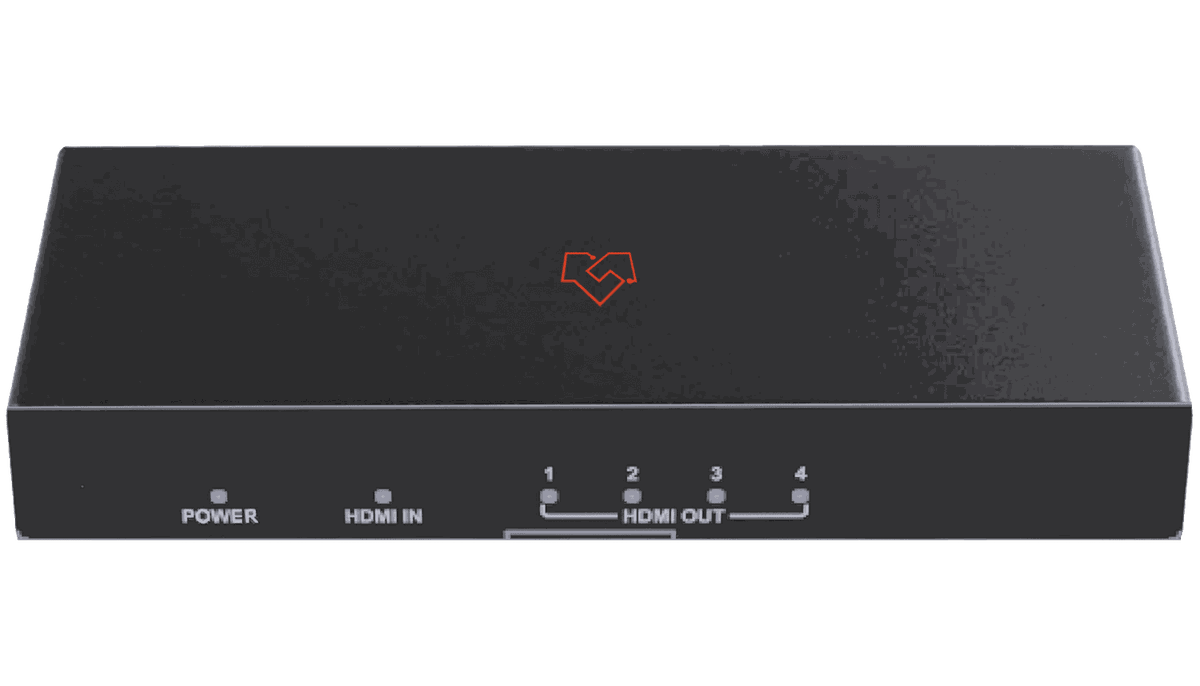

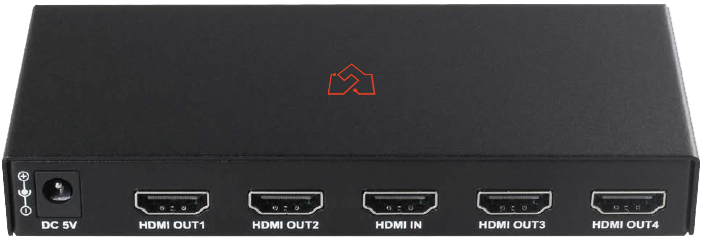

VigilLink VLSP-14H20D 1x4 HDMI 2.0 Splitter with Integrated Scaler
The VLSP-14H20D distributes one HDMI input to four HDMI outputs at up to 4K@60Hz 4:4:4, HDMI 2.0b and HDCP 2.2 compliant at data rates to 18Gbps. Its distinguishing feature is a built-in scaler that adjusts the output resolution for each connected display.
That means a 1080p display on output three does not drag the other three outputs down to 1080p, which is the usual behaviour of a splitter negotiating a common EDID. HDR and 3D pass through.
| Transport Distance | 100m |
|---|---|
| Cable | Range |
| Product Dimension | 140mm x 20mm x 65.2mm/ 5.5'' x 0.8'' x 2.6'' |
| Product Weight | 0.24kg/0.53lb |
| Power Supply | DC 5V 1A |
| Power Consumption | 4K: 1.8W 1080P: 1.1W |
| Input/Output Signal Type | HDMI with 4K@60Hz 4:4:4, HDCP 2.2, HDR, 3D, Scaler |
| Input/Output Resolution Supported | Up to 4096x2160@60Hz, include 4K@60Hz /4K @30Hz /1080P/ 1080i/720P |
