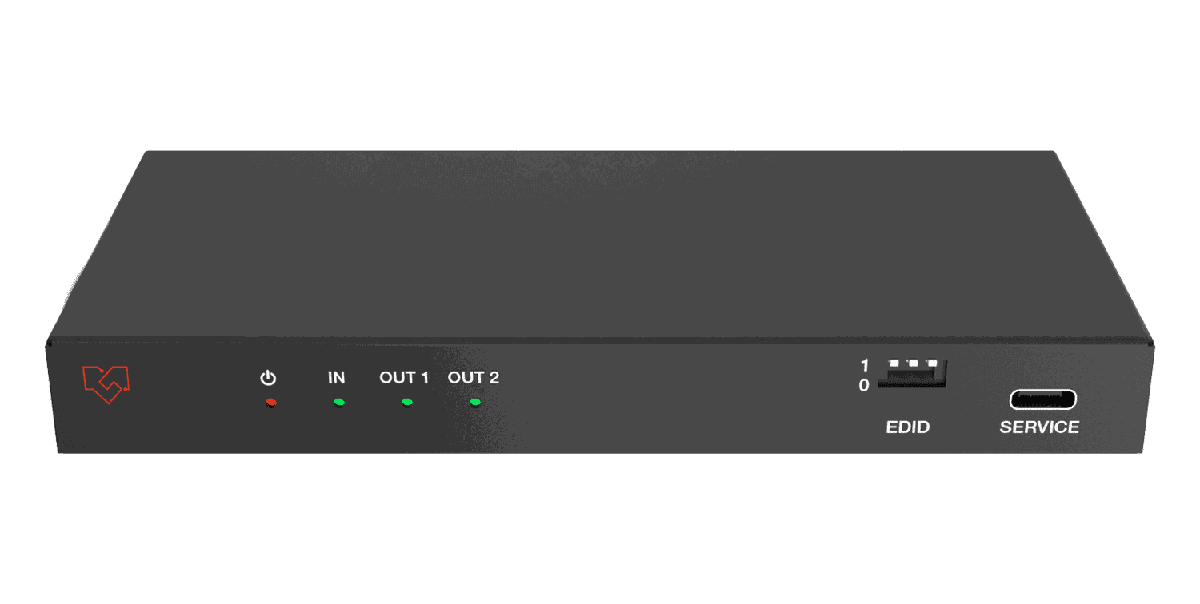

VigilLink VLSP-12H21SA 1x2 HDMI 2.1 Splitter with Audio De-Embedder

The VLSP-12H21SA distributes a single HDMI source to two displays at up to 8K@60Hz 4:2:0 12-bit and data rates to 48Gbps, under HDMI 2.1 and HDCP 2.3. It also supports 4K@120Hz for high refresh rate sources.

Audio de-embedding provides optical and analog outputs alongside the two HDMI feeds, so a sound system can tap the program audio without a separate extractor in the chain.

HDMI Compliance	HDMI 2.1
HDCP Compliance	HDCP 2.3, HDCP1.4
Video Bandwidth	48Gbps FRL and 18Gbps TMDS
Video Resolution	Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit

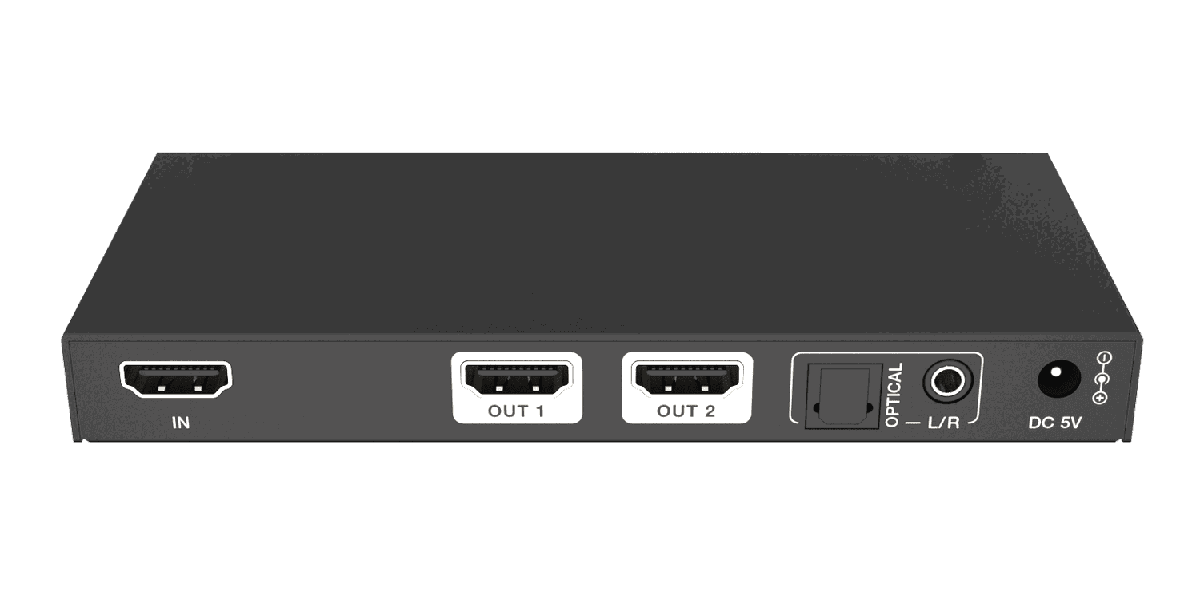

Output	2 x HDMI OUT [Type A, 19-pin female] 1 x OPTICAL [S/PDIF] 1 x L/R [3.5mm Stereo Mini-jack]
Color Space	RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth	8/10/12-bit
HDR	HDR, HDR10, HDR10+, Dolby Vision, HLG
