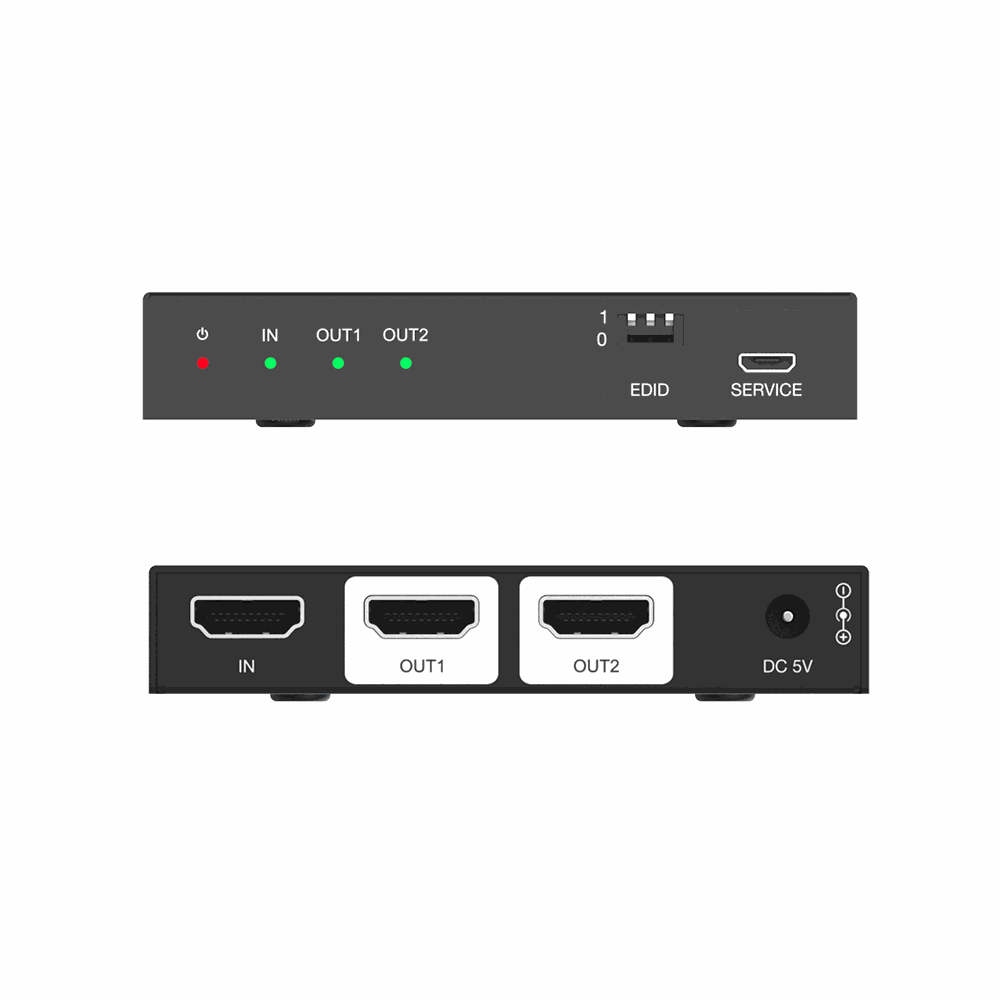

VigilLink VLSP-12H21S 1x2 HDMI 2.1 Splitter, 48Gbps

The VLSP-12H21S splits a single HDMI source to two displays at up to 8K@60Hz 4:2:0 12-bit, fully compliant with HDMI 2.1 and HDCP 2.3. At 48Gbps it has the headroom for next-generation sources rather than throttling them to 4K.

EDID management and cable equalization keep the signal reliable across both outputs and across cable runs that would otherwise be marginal at this bandwidth. High refresh rate support makes 4K@120Hz playback practical for Xbox Series X, PlayStation 5, and compatible displays.

HDMI Compliance	HDMI 2.1
HDCP Compliance	HDCP 2.3
Video Bandwidth	48Gbps
Video Resolution	Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit
Input	1 x HDMI IN [Type A, 19-pin female]
Output	2 x HDMI OUT [Type A, 19-pin female]
Audio Formats	HDMI input/output LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
Color Space	RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0
