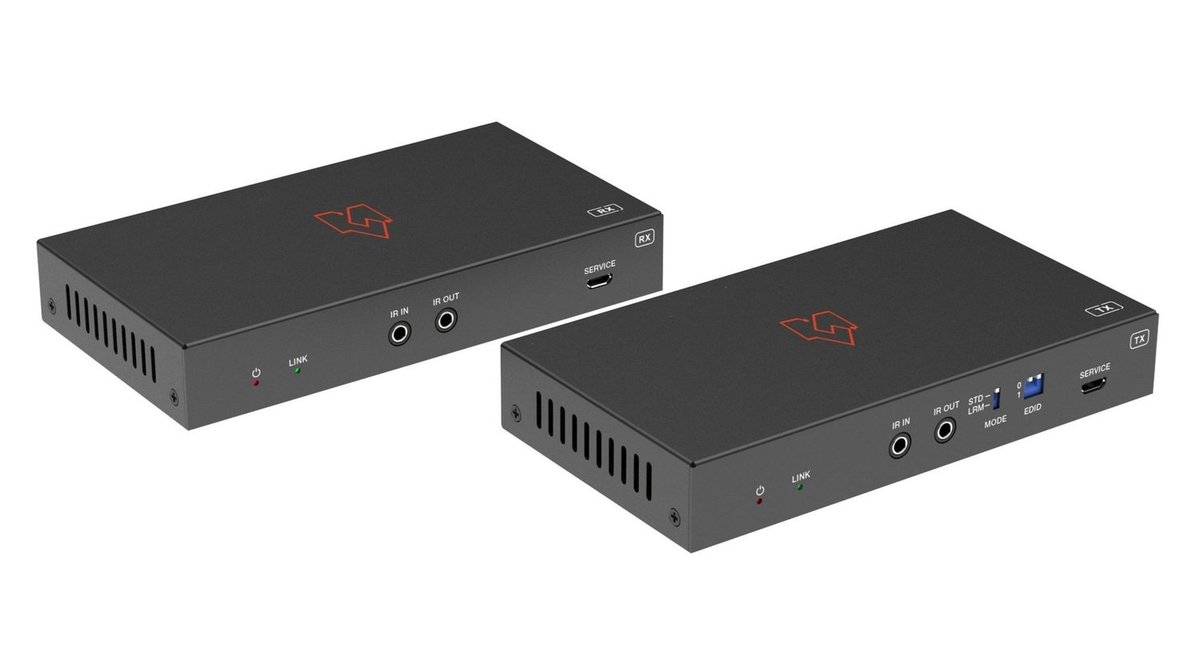

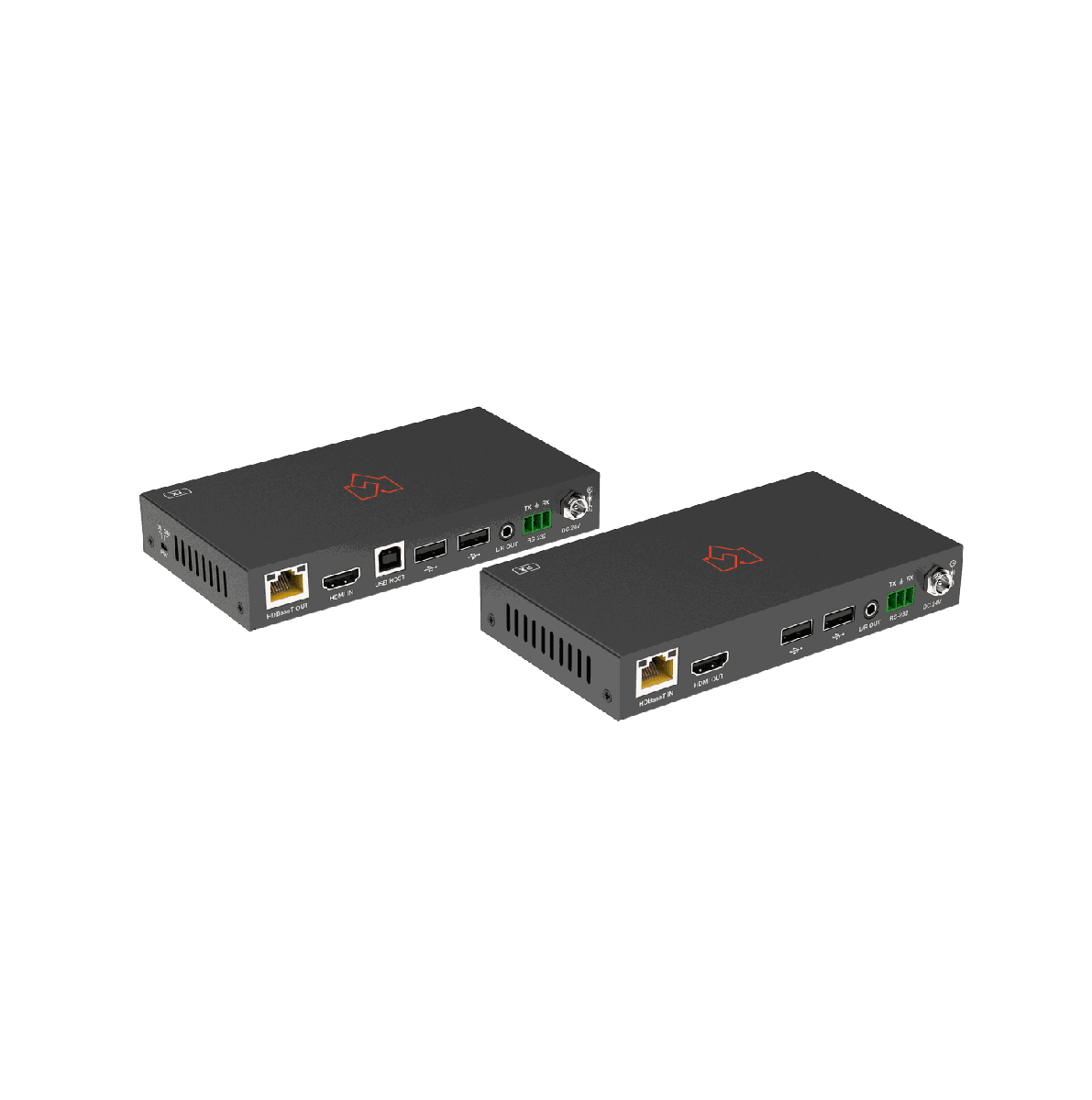

VigilLink VLEX-HT3100U0-TR HDBaseT 3.0 HDMI Extender with USB and eARC, 100m
The VLEX-HT3100U0-TR extends HDMI at up to 4K@60Hz (YUV 4:4:4) together with USB 2.0, RS-232, and bidirectional IR to 328 feet (100 meters), with no compression and low latency. HDR, HDR10, HDR10+, Dolby Vision LLM, and HLG all pass through.
The transmitter supports audio de-embedding and the receiver provides HDMI output with de-embedding of its own, so a local sound system can be fed at either end. EDID management is handled on the unit, and USB 2.0 transport covers a keyboard, mouse, or touch panel at the far position.
| HDMI Compliance | HDCP 2.2 |
|---|---|
| Video Bandwidth | 18Gbps |
| Video Resolution | Up to 4K@60Hz |
| Transmission Distance | HDBT Standard Mode: 4K60 / 100m; 1080P / 100m (CAT6A/7 cable) HDBT Long Reach Mode: 1080P / 150m (CAT6/6A/7 cable) |
| Audio Formats | LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| Color Depth | 8/10/12-bit |
| HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG |
