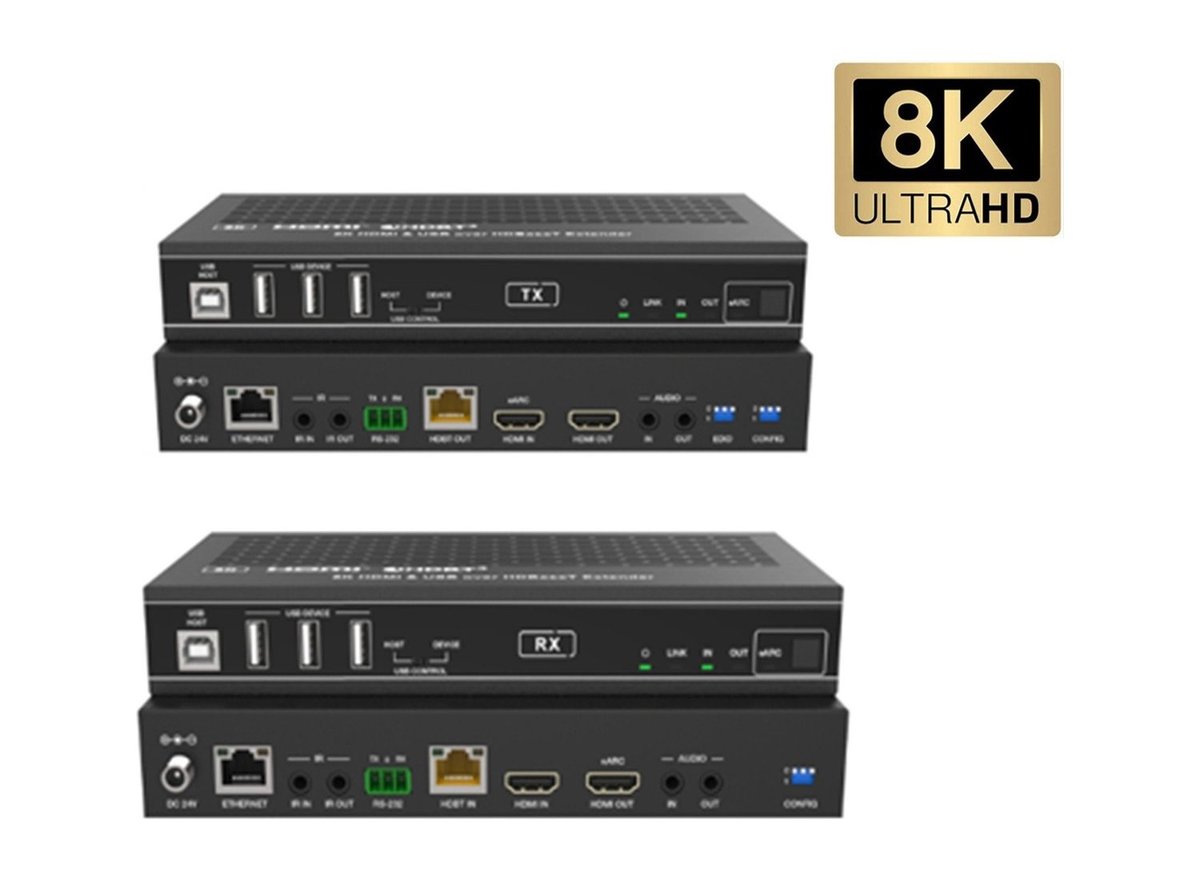

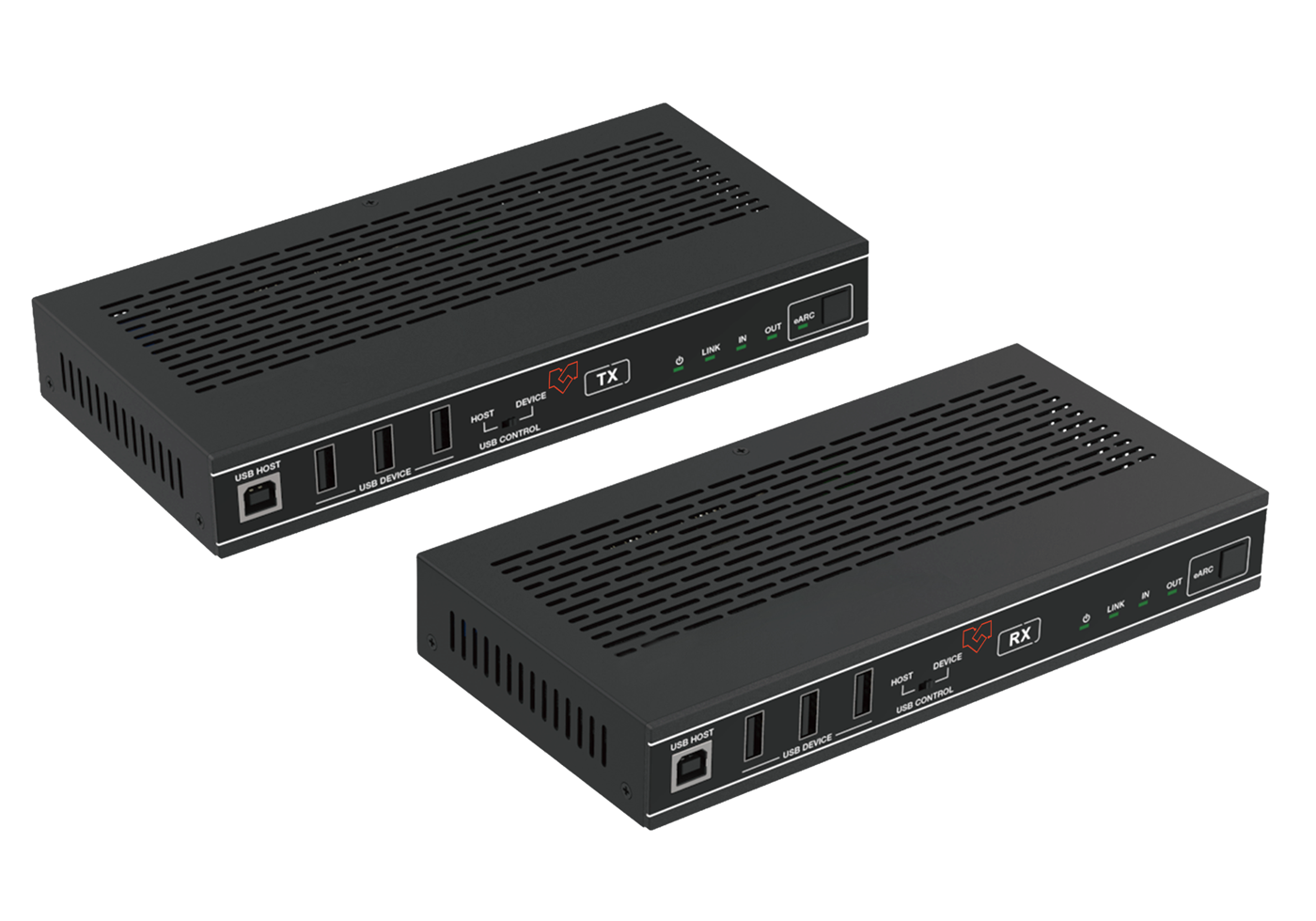

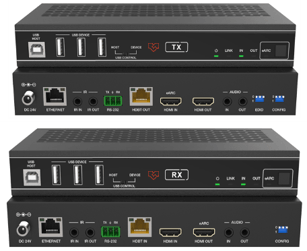

VigilLink VLEX-HT3200U-TR HDBaseT 3.0 8K HDMI 2.1 Extender, 90m

The VLEX-HT3200U-TR is the 8K member of the HDBaseT 3.0 line, carrying up to 8K@30Hz (4:4:4, 10-bit), 4K@120Hz (4:4:4, 10-bit), or 4K@60Hz (4:4:4) across a single Cat6A/7 cable to 295 feet (90 meters). It supports 40Gbps FRL and 18Gbps TMDS bandwidth.

eARC/ARC returns audio from the receiver's HDMI output to the transmitter's HDMI input or its HDMI audio output port. The link is HDMI 2.1, HDCP 2.3, and HDBaseT 3.0 compliant and passes the full range of standard video timings from VGA upward.

HDMI Compliance	HDMI 2.1
HDCP Compliance	HDCP 2.3
Video Bandwidth	Up to 40Gbps FRL and 18Gbps TMDS
Video Resolution	Up to 8K@30 4:4:4 10bit, 4K@120Hz 4:4:4 10bit
Transmission Distance	MAX: CAT 6 -- 60m/197ft CAT 6A/7 -- 90m/295ft
Color Space	RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth	8/10/12-bit
HDR	HDR, HDR10, HDR10+, Dolby Vision, HLG
