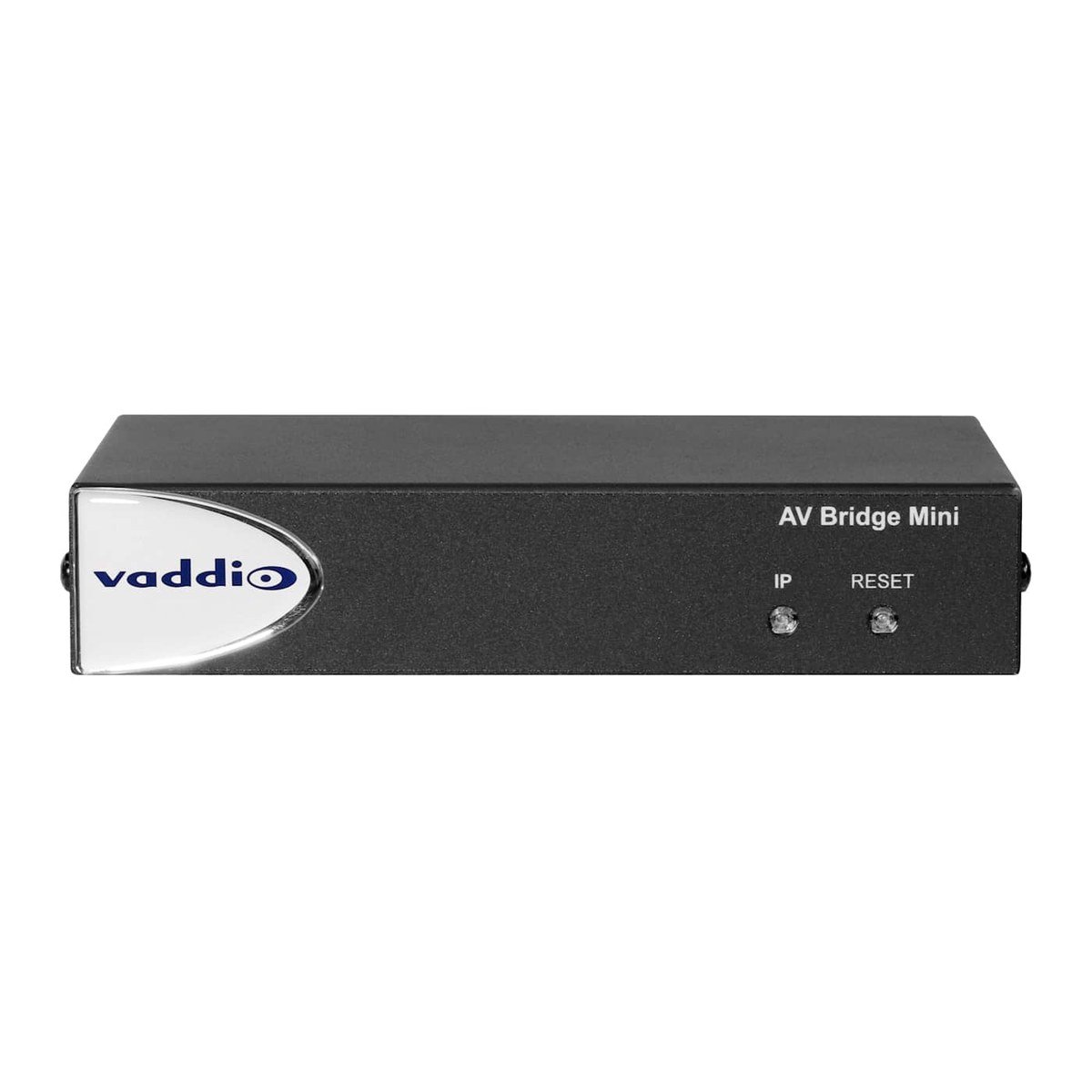

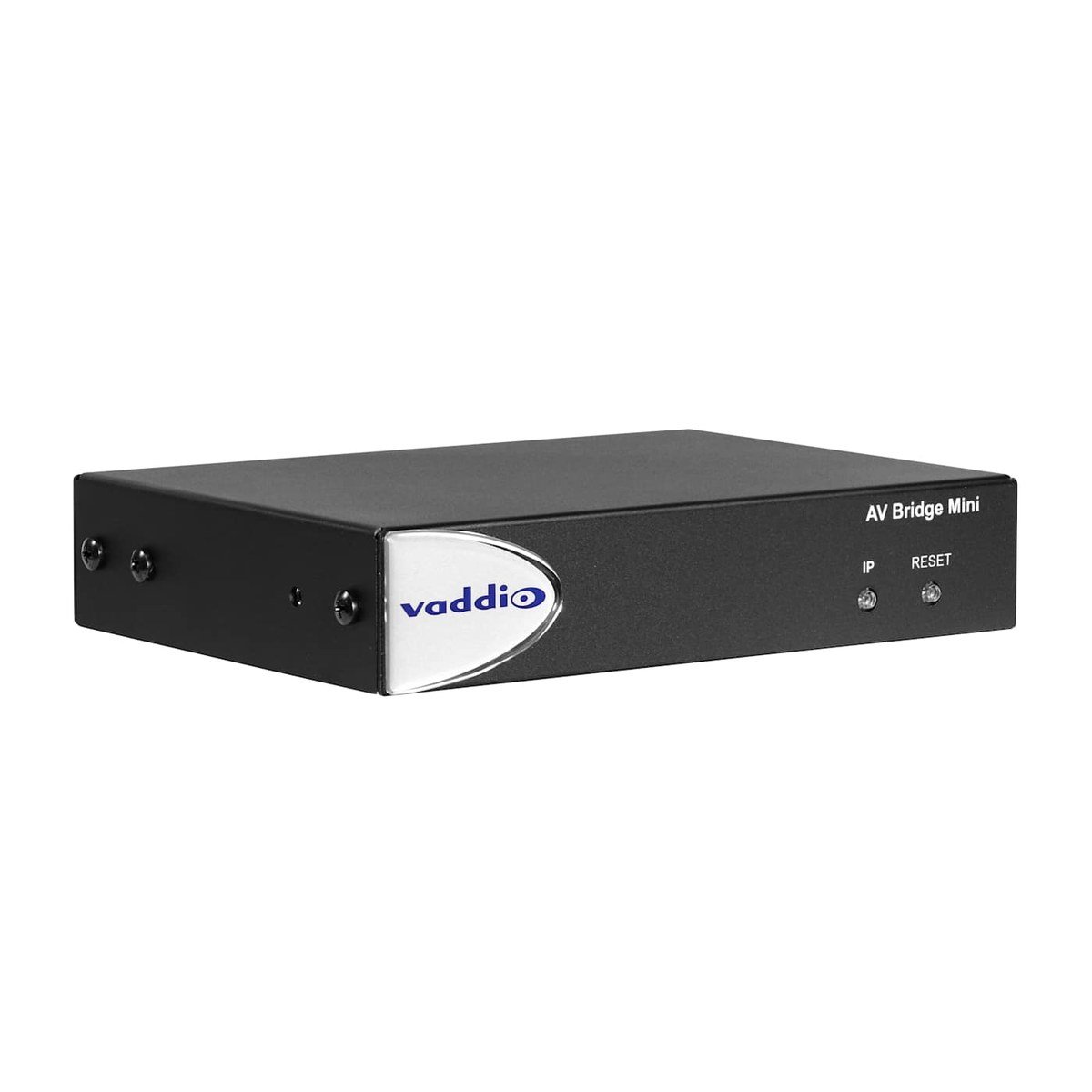

Vaddio AV Bridge Mini

The AV Bridge Mini is a half-rack audio and video encoder that drops a pro AV source into soft conferencing and live streaming. Feed it an HDMI camera or source and it presents itself as a standard UVC/UAC device over USB 3.0, so Zoom, Teams, WebEx, and Skype for Business see it as a webcam with no extra drivers. Its HDMI input accepts signals up to 4K (3840 x 2160) and scales appropriately, while the USB output runs up to 1080p/60.

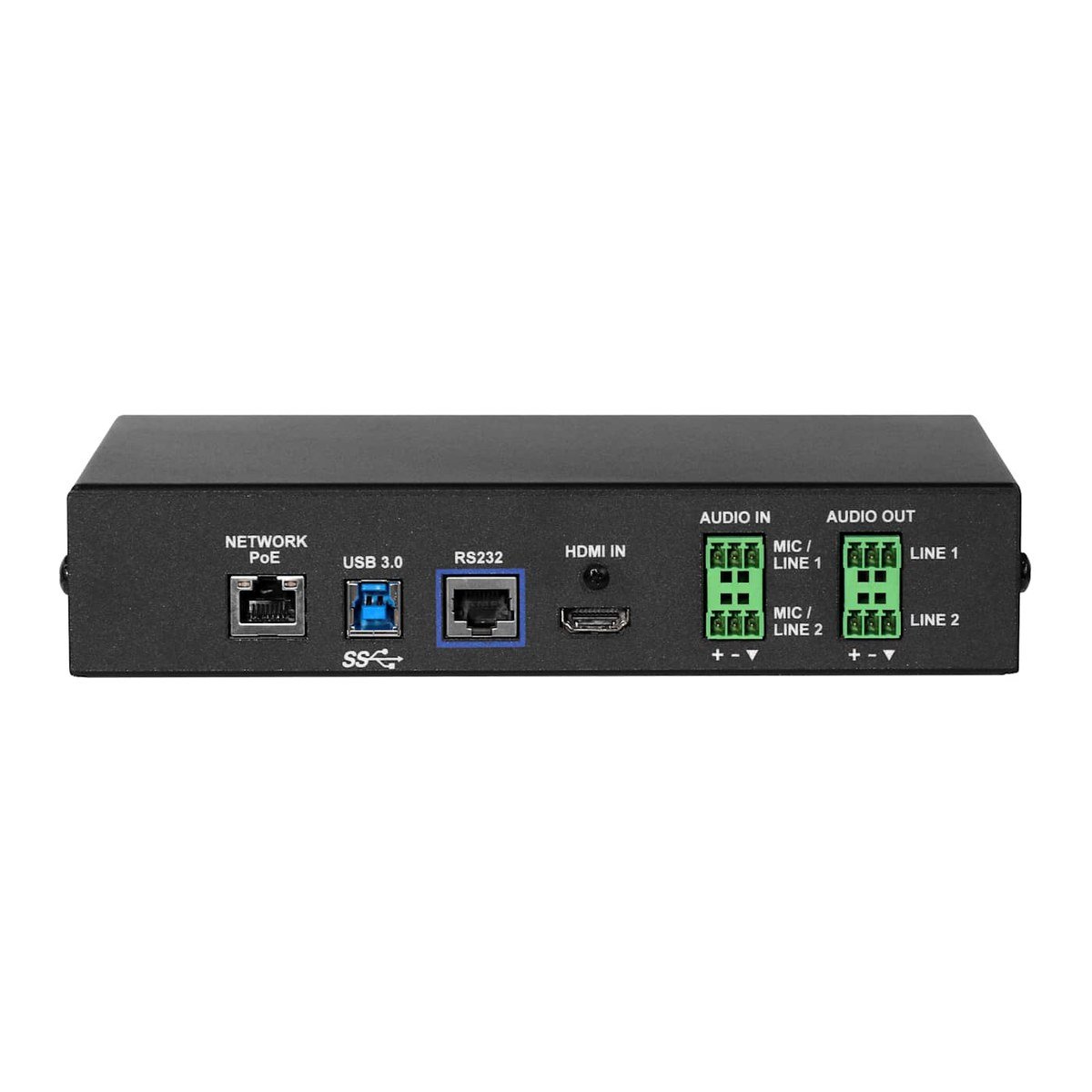

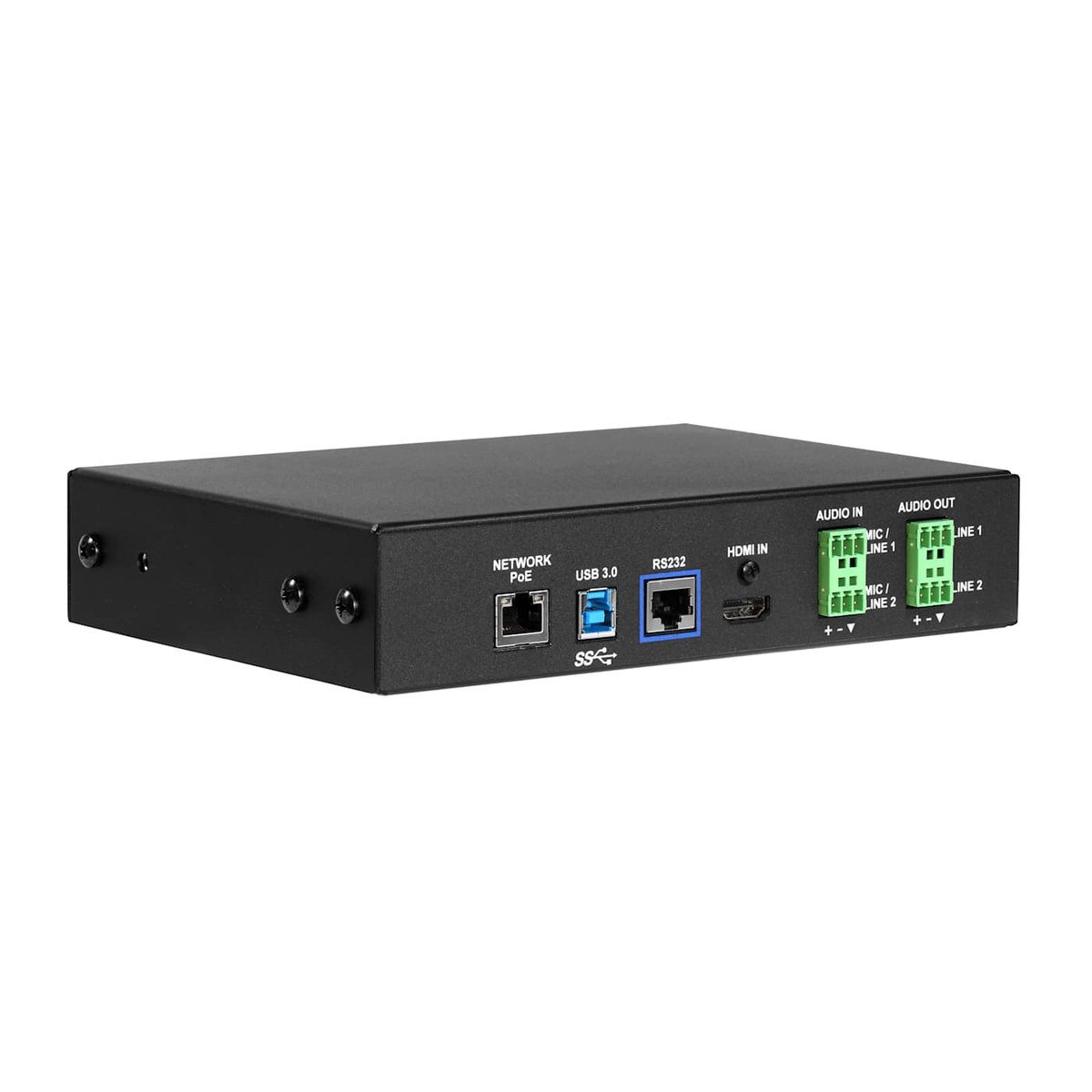

For broadcast and lecture capture it also produces an IP stream in RTSP or RTMP up to 1080p/30 for platforms like YouTube Live and Panopto. Two balanced mic/line inputs with phantom power and two balanced line outputs let it integrate with room DSPs, and a 6x5 audio matrix routes those signals to the USB, IP, and analog outputs. Power and network arrive together over PoE using the included injector. The unit ships with the AV Bridge Mini, a PoE power injector, a 3 ft Cat-5 cable, a 6 ft USB 3.0 cable, four Phoenix connectors, a rack mounting kit, and a Quick-Start Guide.
