Vaddio WideSHOT SE QMini System

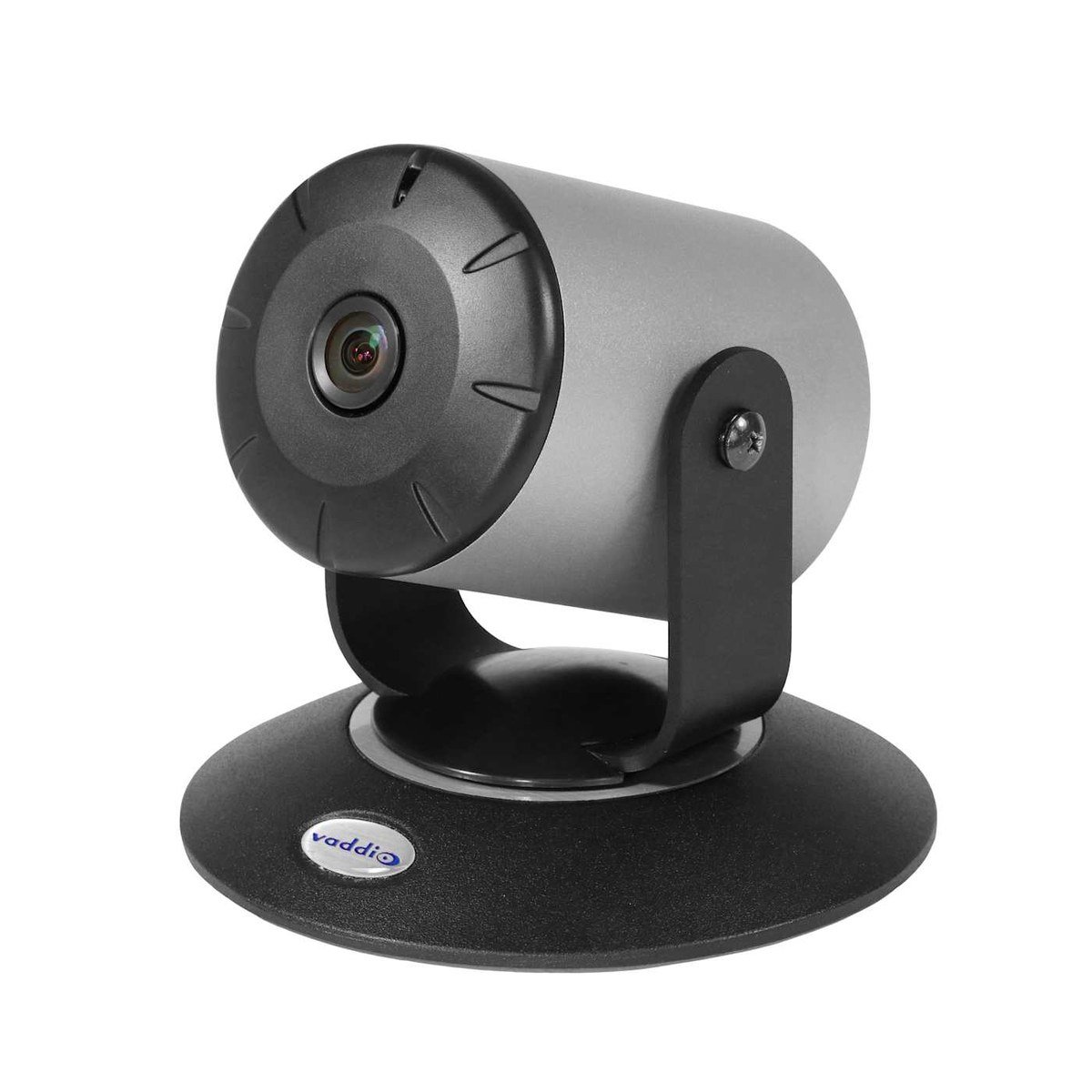

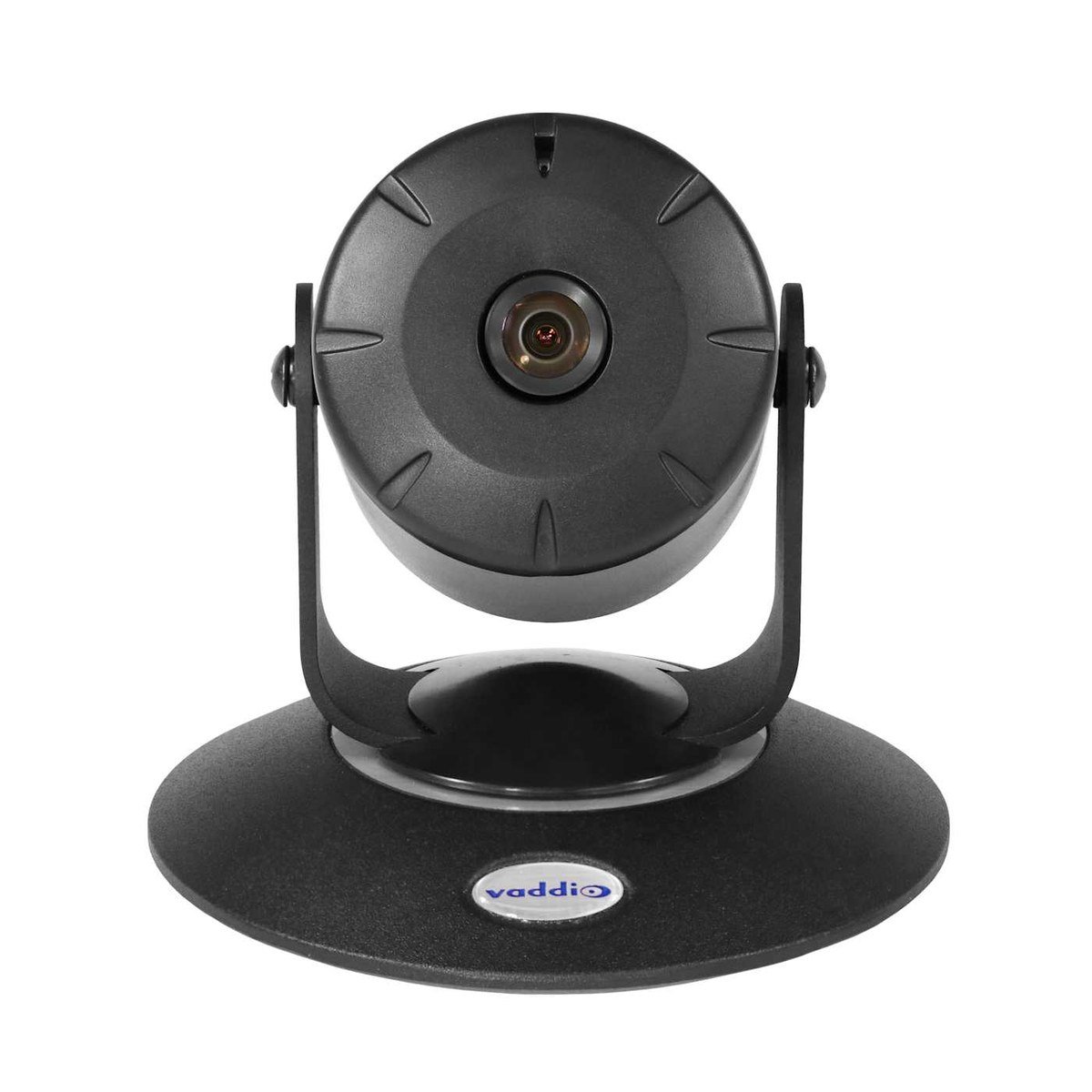

The WideSHOT SE is a fixed, wide-angle point-of-view HD camera built for huddle rooms, small conference spaces, and executive offices where a single fixed shot covers three or four people. Its 1/2-inch CMOS sensor and 111-degree horizontal field of view take in the whole table in a 16:9 frame, with a 3x digital zoom and manual pan/tilt positioning for setup. The sensor is tuned for low light, so it also works for a wide shot of an audience or stage in a dim auditorium, and the camera can be inverted for ceiling mounting.

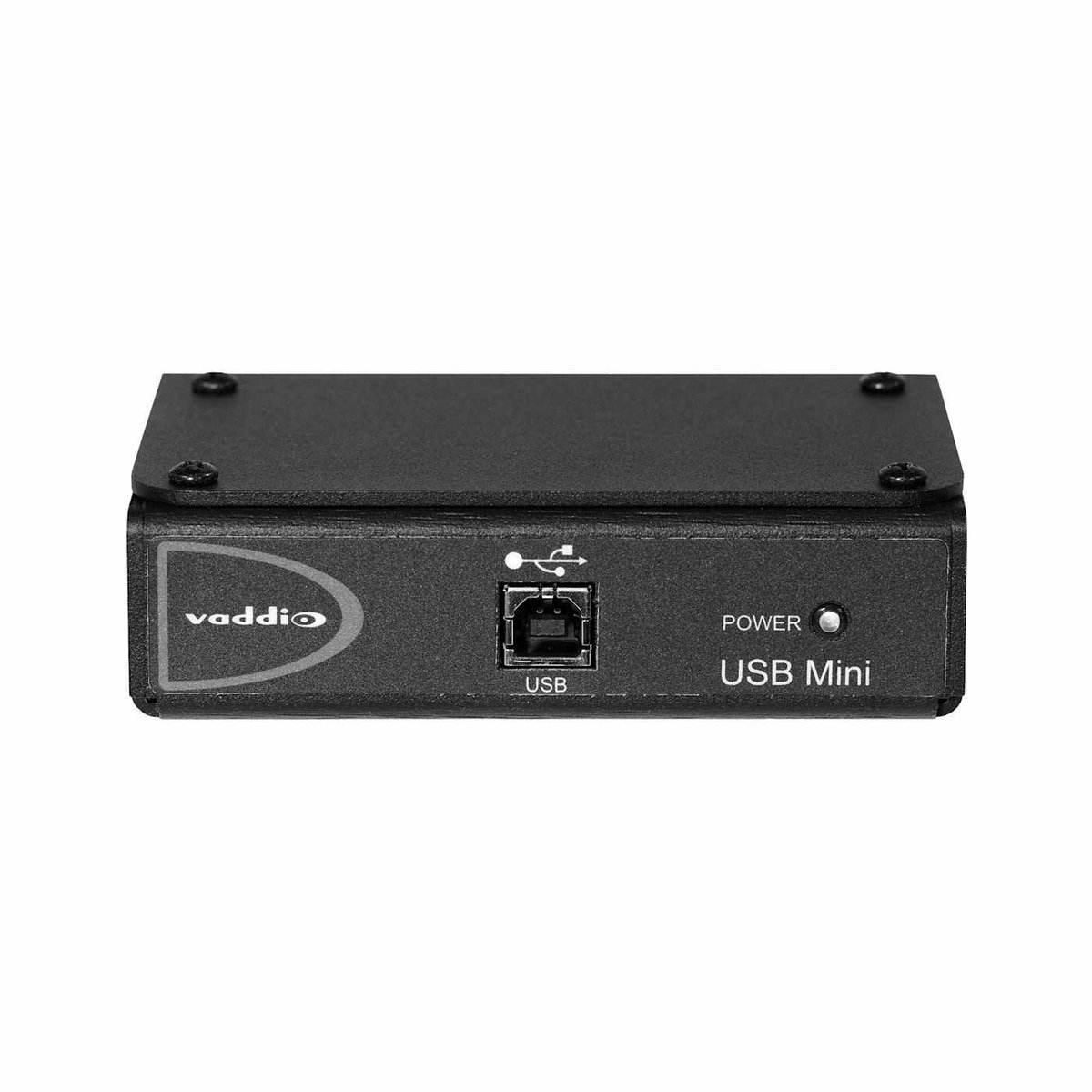

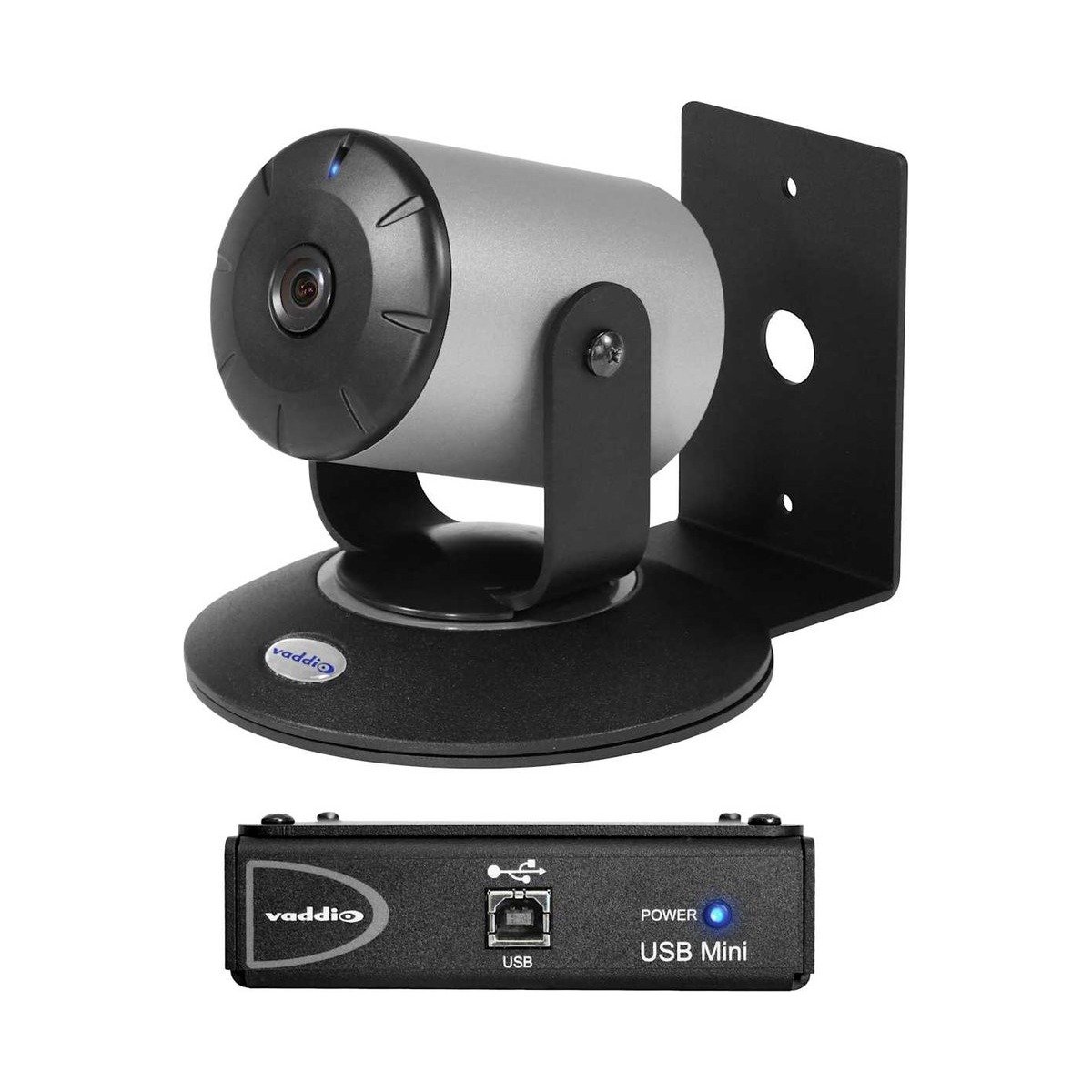

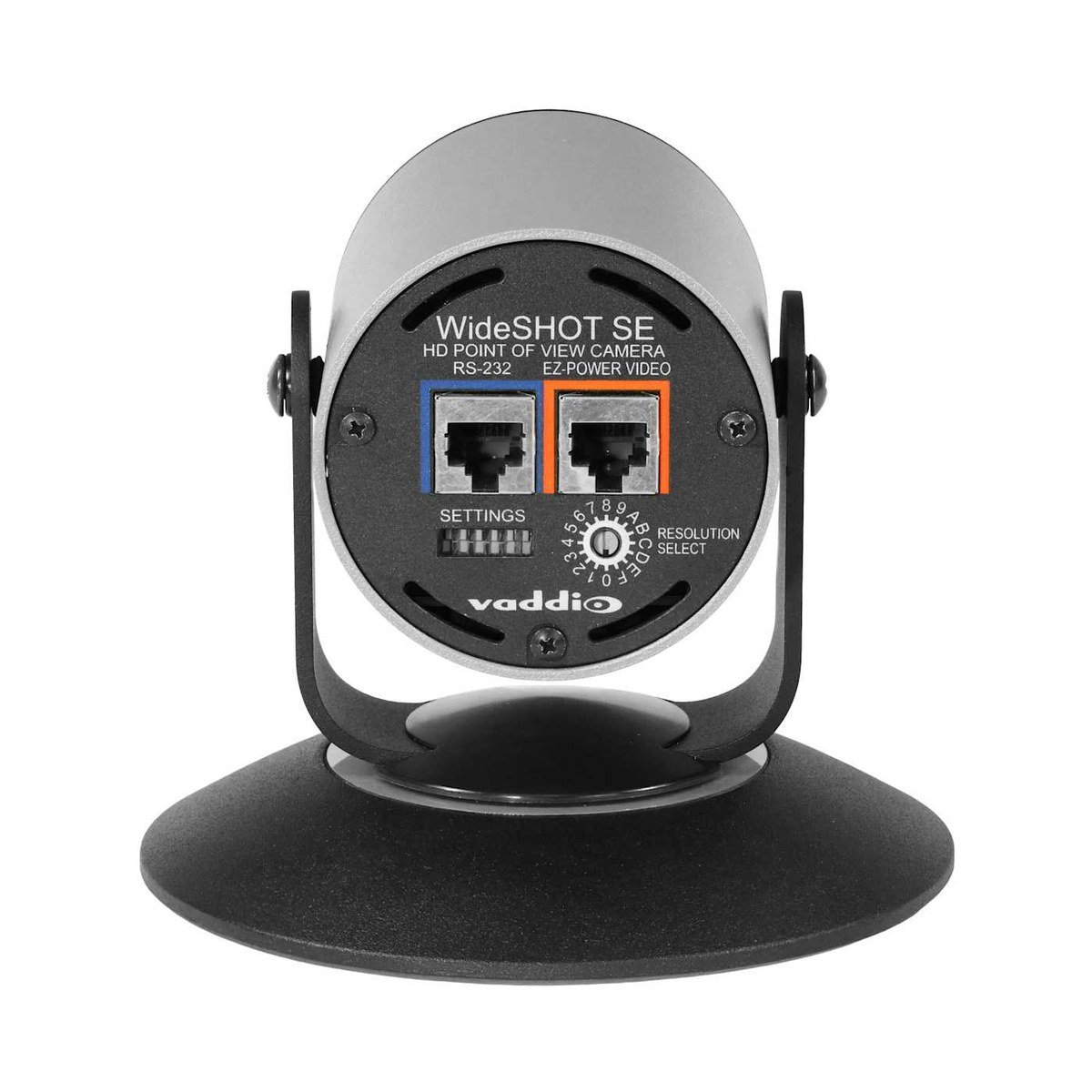

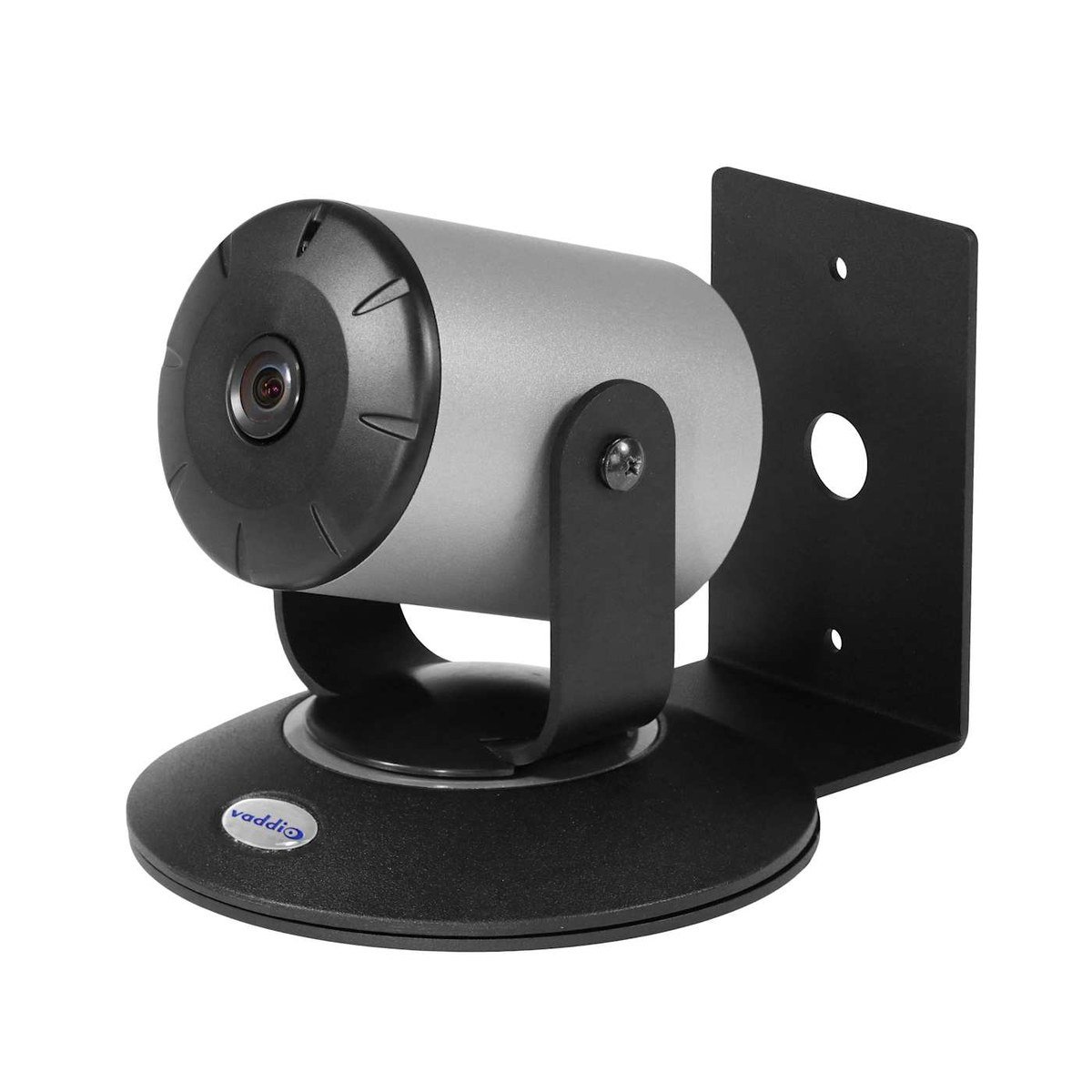

This QMini package bundles the camera with the Quick-Connect USB Mini interface for simple USB 2.0 720p/30 streaming and capture, ideal when the room only needs a USB output into a soft codec. Power, video, and control run to the camera over Cat-5 using Vaddio's EZCamera wiring and HSDS video, reaching up to 150 feet. The system ships with the WideSHOT SE camera, the Vaddio IR Shot Commander remote with batteries, a Thin Profile Wall Mount with drywall hardware, the Quick-Connect USB Mini interface, a 24 VDC power supply, a 6 ft USB 2.0 cable, and Quick-Start Guides.
| Image Sensor | 1/2-inch CMOS, 2.4M total / 2.1M active pixels |
|---|---|
| Lens / Zoom | Fixed focus, approx. 3x digital zoom |
| Horizontal Viewing Angle | 111 degrees (wide), 95 degrees (tele) |
| Video Output | HD 1080p/1080i/720p; SD 480p/576p |
| USB Streaming (QMini) | USB 2.0, 720p/30 |
| Minimum Illumination | 0.2 lux |
| Pan / Tilt | Manual; tilt +/-30 degrees, invertible for ceiling mount |
| Weight | 2.25 lb (1.02 kg), aluminum and steel |
| Included | WideSHOT SE camera, IR Shot Commander remote with batteries, Thin Profile Wall Mount with hardware, Quick-Connect USB Mini interface, 24V power supply, 6 ft USB 2.0 cable, Quick-Start Guides |
