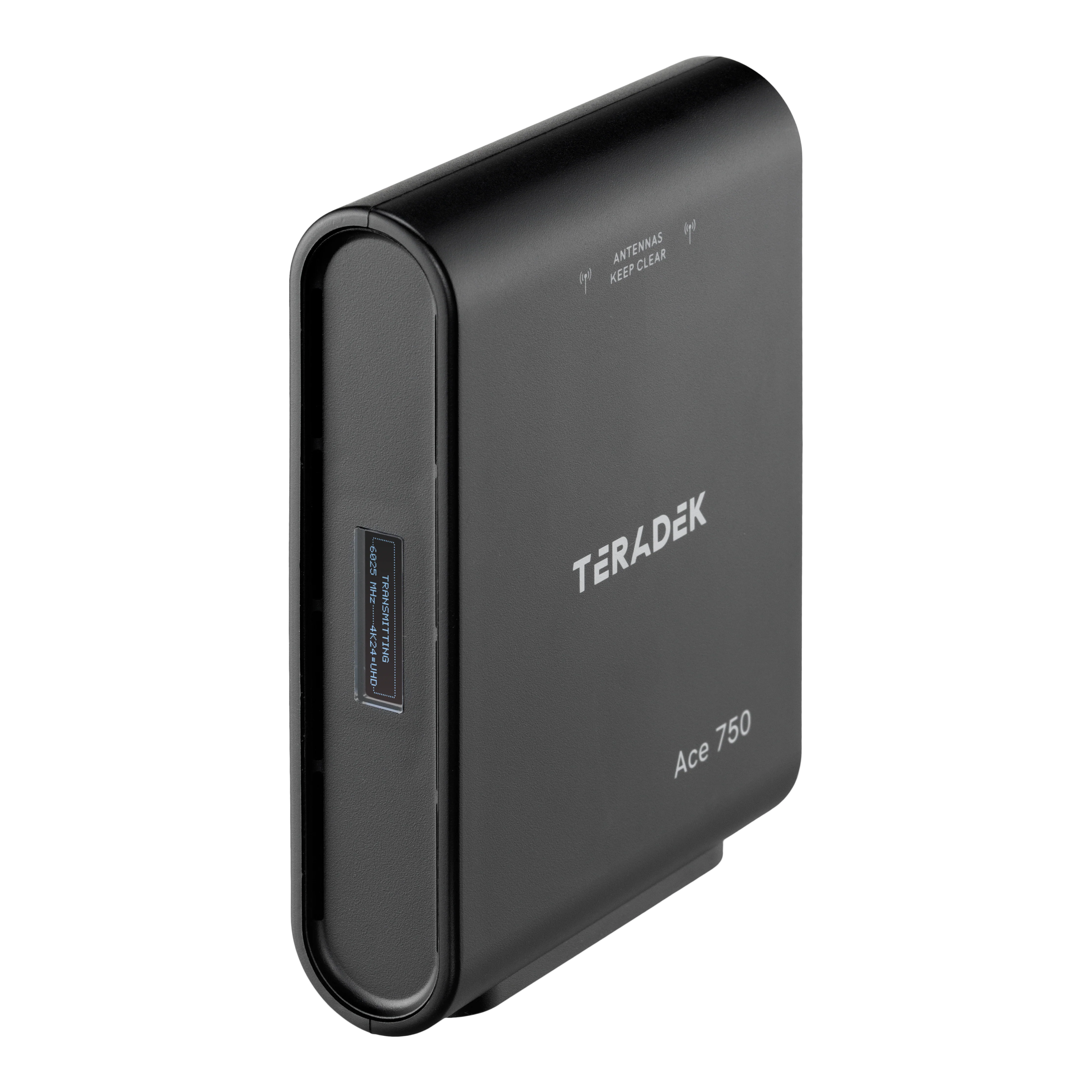

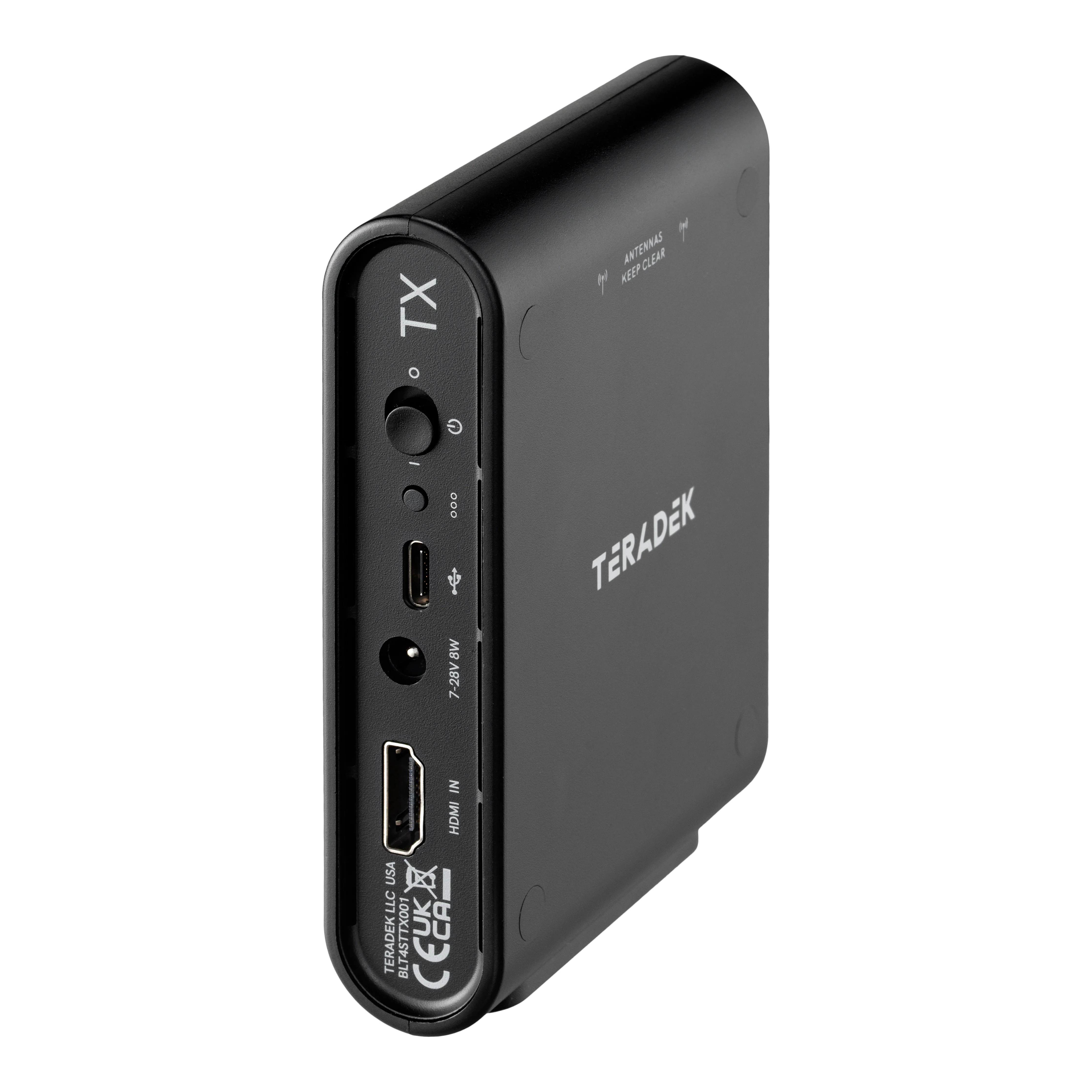

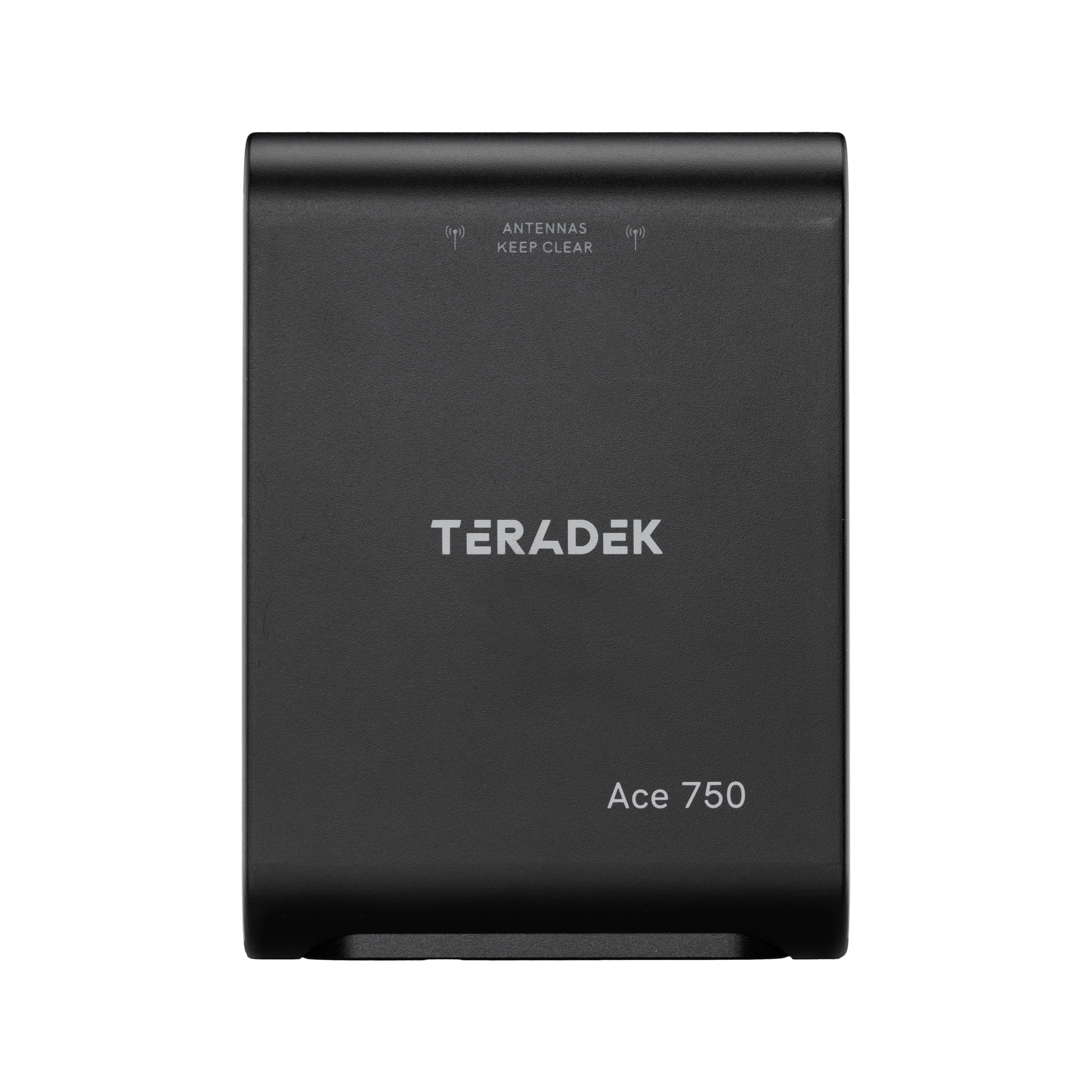

Teradek Ace 750 Transmitter
The Ace 750 TX is the transmit half of Teradek's compact, HDMI-only wireless system, sold separately from the matched set for anyone who already owns a receiver and needs a second camera position, or lost a transmitter and doesn't want to buy a whole new kit. It carries 4K30 at 10-bit 4:2:2 HDR with less than 0.001 seconds of delay off Teradek's BB3 chip, so a focus puller working off a receiver sees the same frame the camera does, and one transmitter can feed as many as six receivers at once - enough for a video village, a client monitor, and a handheld follow all off one radio.

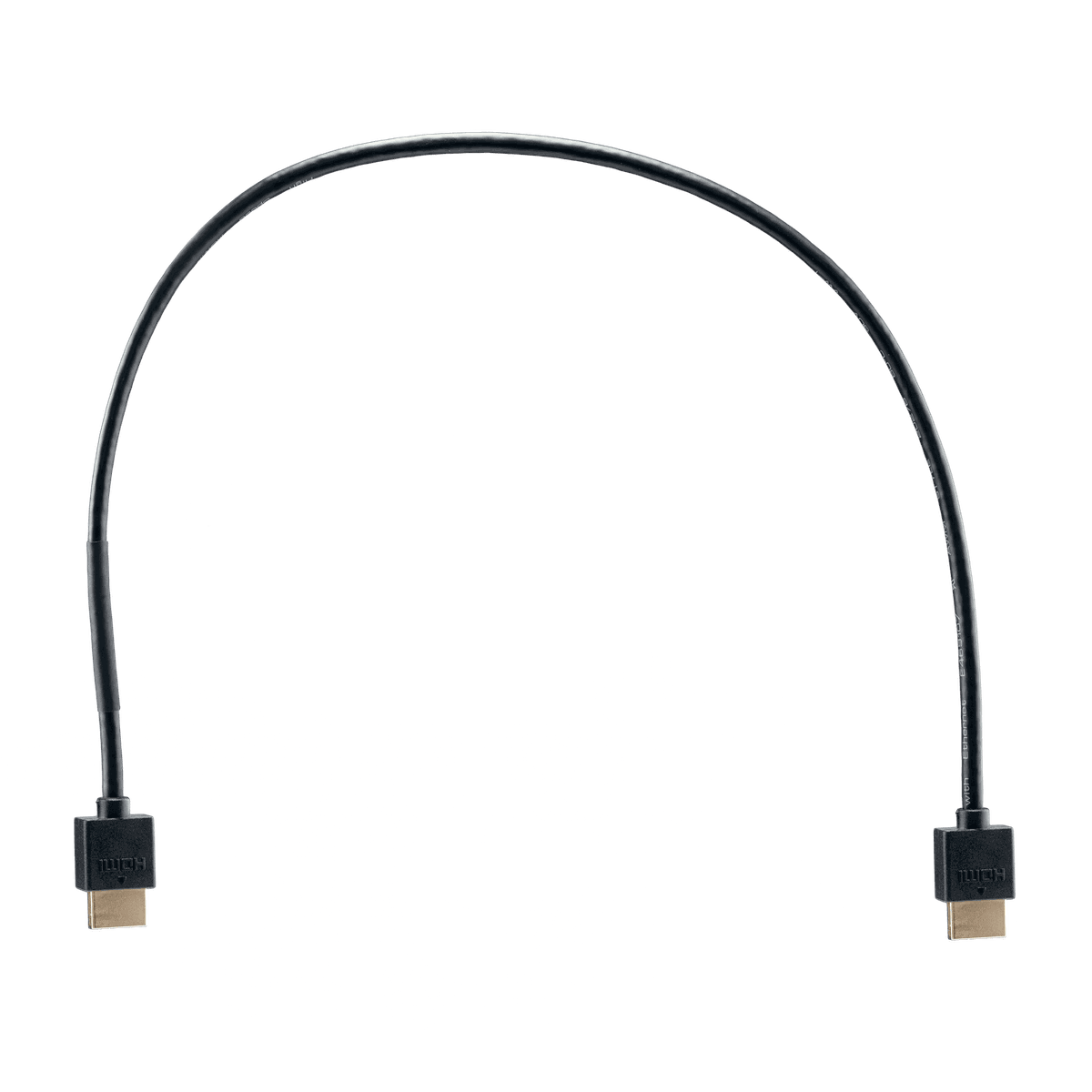

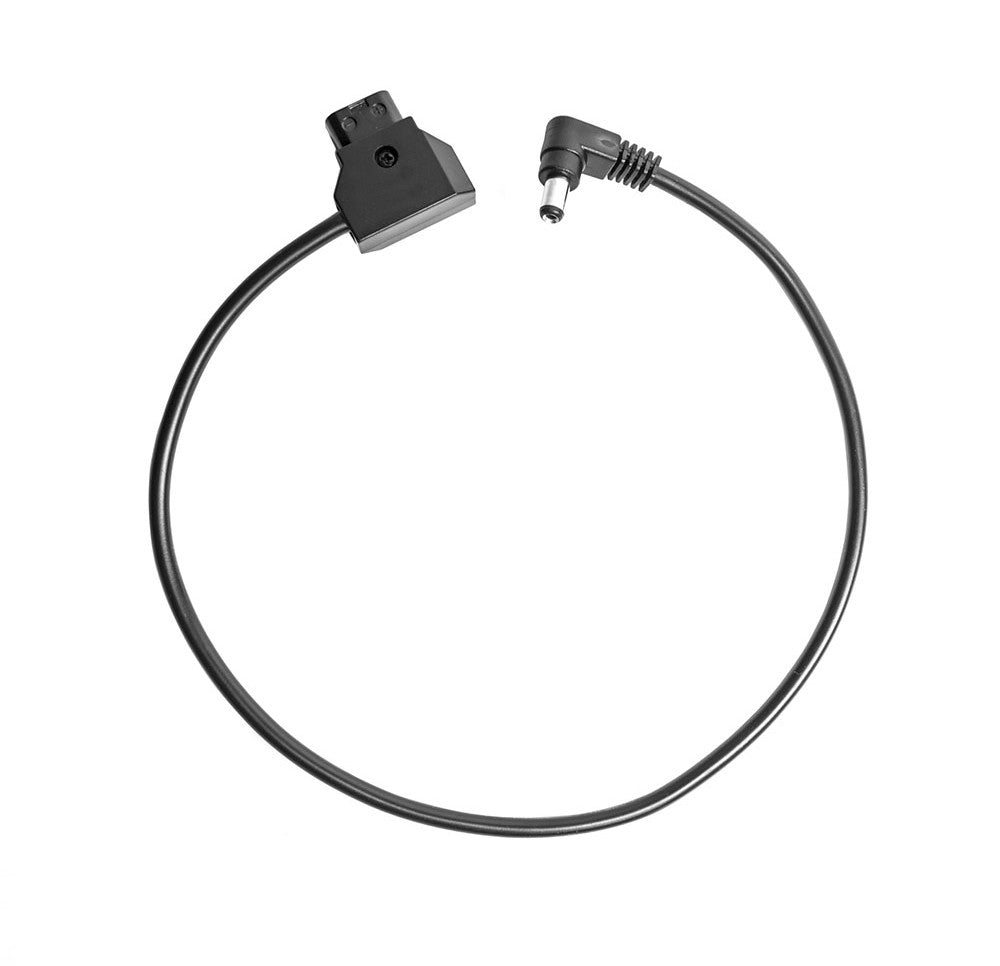

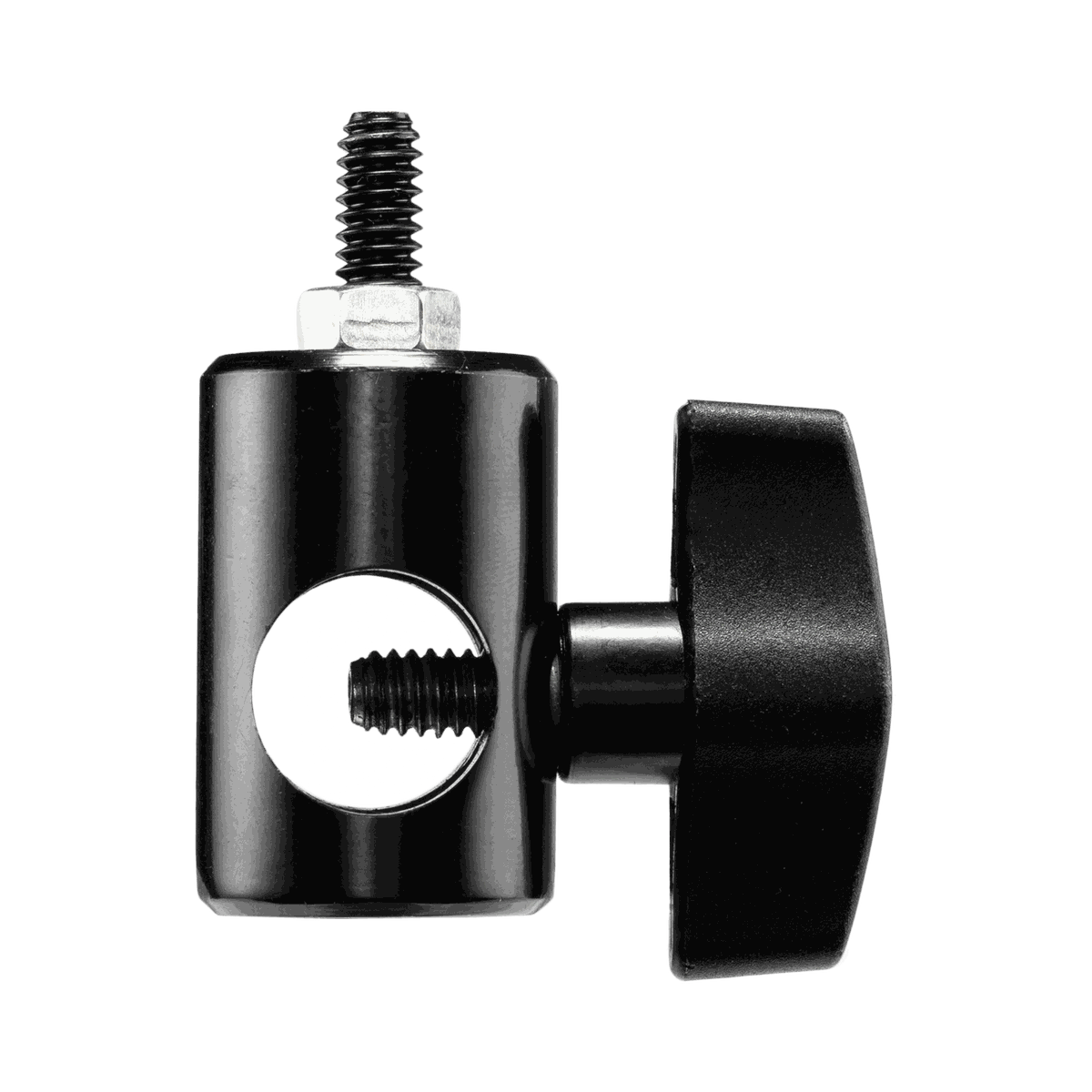

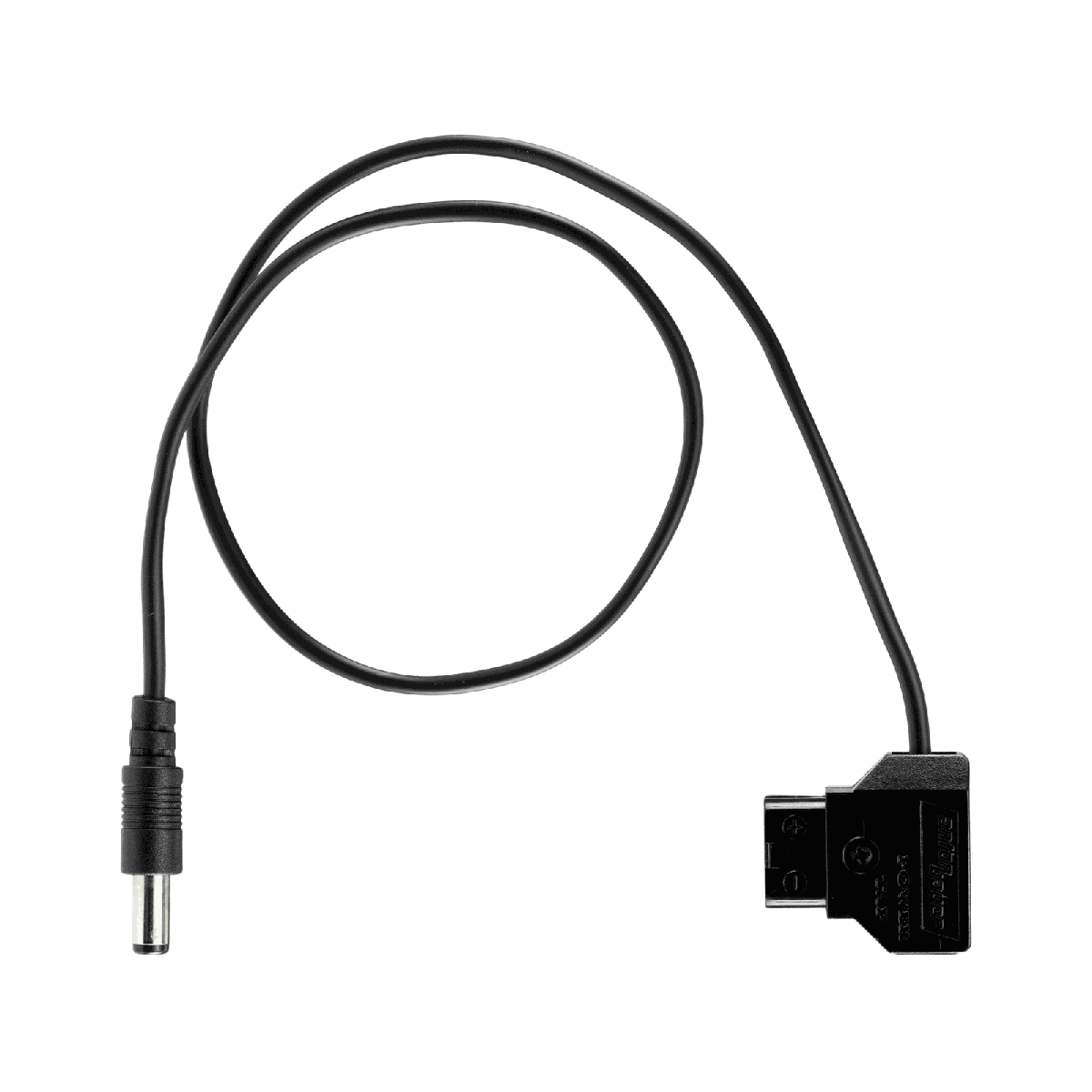

The antennas are internal, so there's nothing to snap off a run-and-gun rig, and it runs on 5 GHz plus the newer 6 GHz U-NII channels for clean spectrum in a crowded venue. Power comes from a barrel DC connector fed by the included AC adapter or a battery over P-Tap; there's no internal battery to manage. In the box: the transmitter, an 18 inch ultra-thin HDMI cable, an 18W AC adapter, a light stand adapter, and a hot shoe adapter.
| Video Input | HDMI Type A |
|---|---|
| Maximum Resolution | UHD 4K 3840 x 2160p30 |
| Color Sampling | 10-bit 4:2:2 HDR |
| Latency | Less than 0.001 seconds |
| Range | Up to 750 ft / 230 m line of sight |
| Frequency Bands | 5 GHz plus 6 GHz U-NII channels |
| Receivers | Up to 6 receivers per transmitter |
| Antennas | Internal |
| Power | Barrel DC connector; AC adapter or P-Tap; no internal battery |
| Included | 18 in ultra-thin HDMI cable, 18W AC adapter, light stand adapter, hot shoe adapter |
