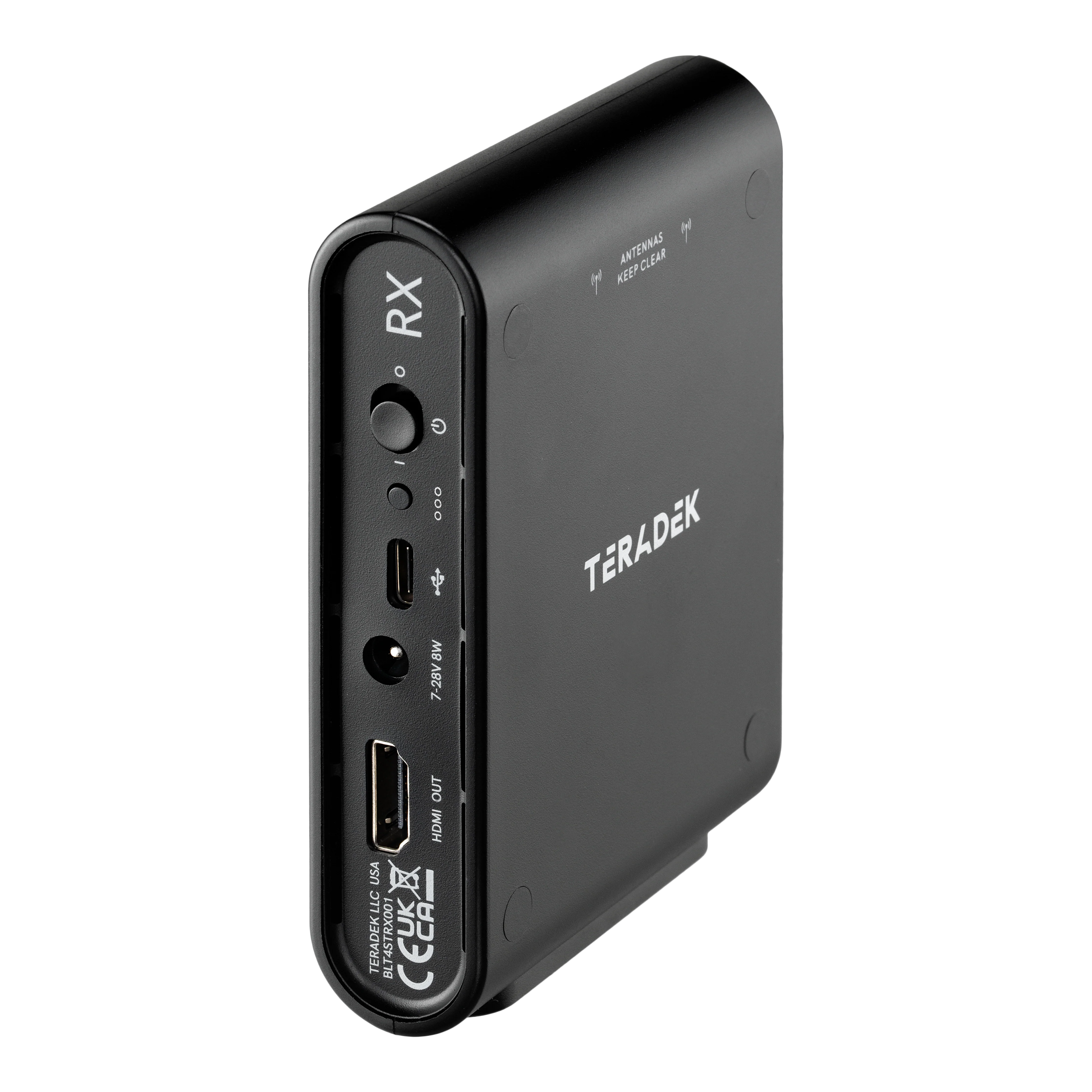

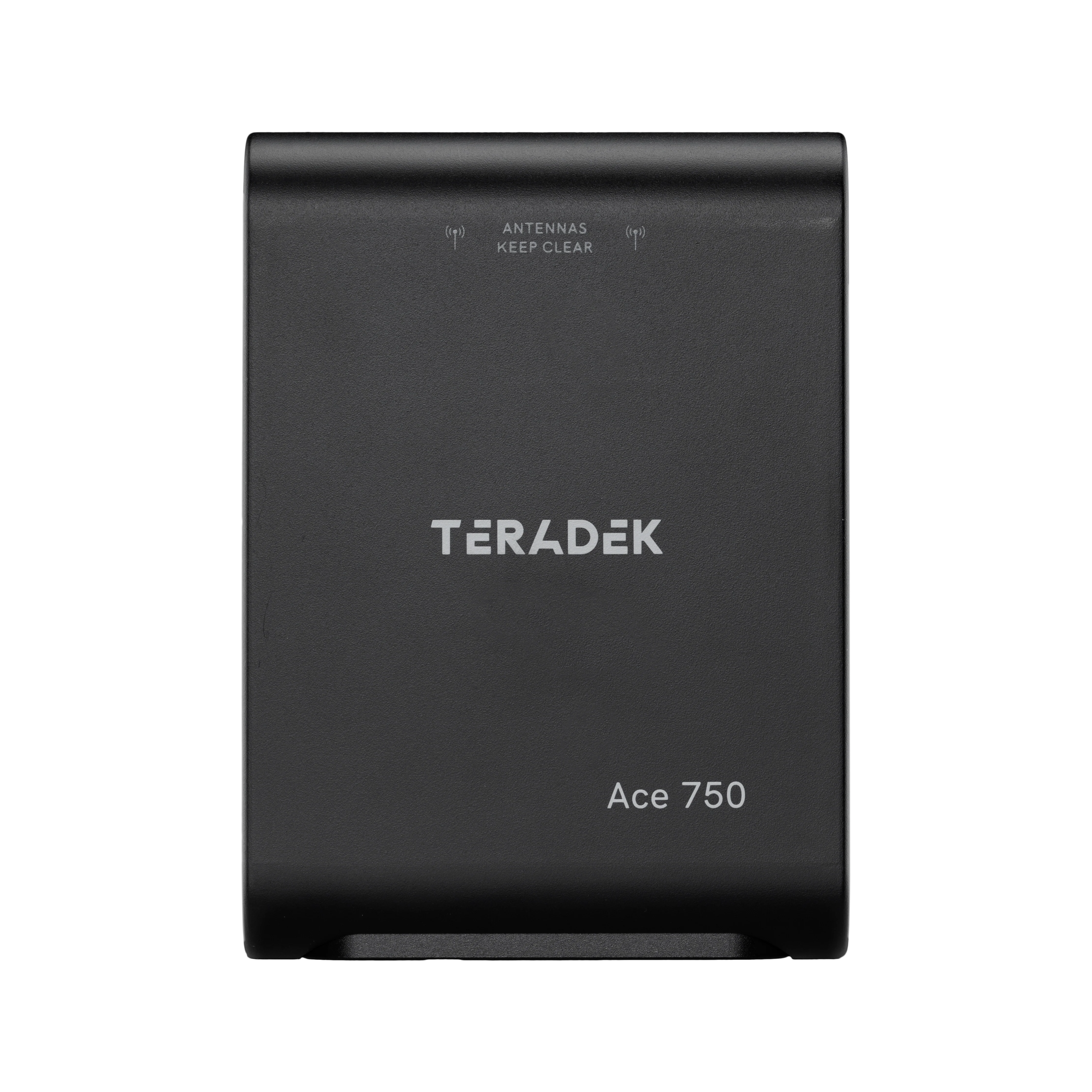

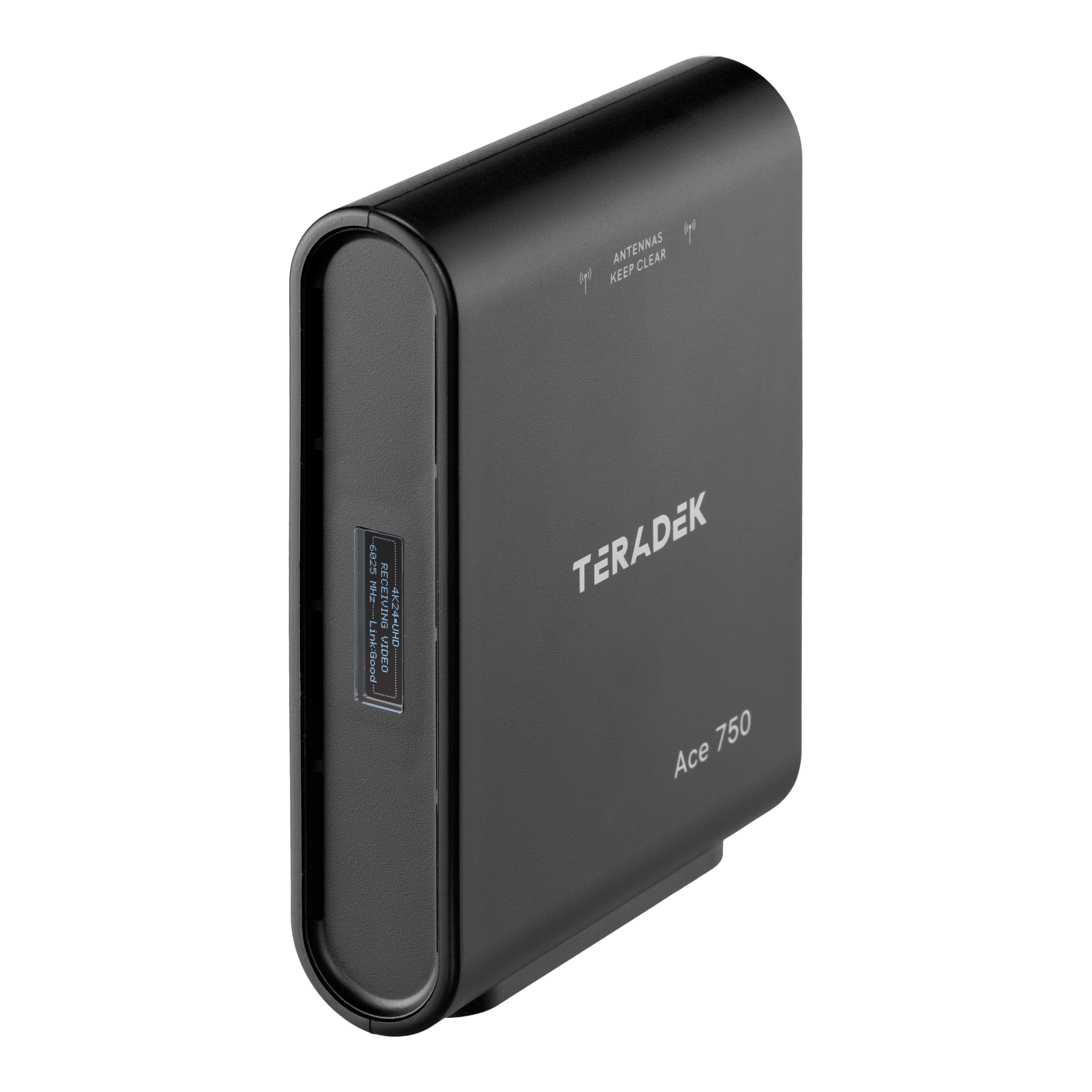

Teradek Ace 750 Receiver
The Ace 750 RX is the receive half of Teradek's compact, HDMI-only wireless system, sold separately from the matched set so a crew that already has a transmitter can add a second monitoring position, or replace a receiver that went missing. It pulls 4K30 at 10-bit 4:2:2 HDR off Teradek's BB3 chip with less than 0.001 seconds of delay, and because it's fully compatible with Bolt 4K and Bolt 6 transmitters as well as Ace, it can slot into an existing Bolt kit as an extra low-cost monitoring drop rather than requiring a matched Ace transmitter.
Antennas are internal, so nothing snags on a monitor cart or backpack, and it automatically switches between the 5 GHz and 6 GHz bands to find clean spectrum. Power is 12VDC from the included AC adapter, with a P-Tap cable in the box for running off a camera battery instead. In the box: the receiver, an 18 inch HDMI cable, a light stand adapter, an 18W power supply, and a P-Tap cable.
| Video Output | HDMI Type A |
|---|---|
| Maximum Resolution | UHD 4K 3840 x 2160p30 |
| Color Sampling | 10-bit 4:2:2 HDR |
| Latency | Less than 0.001 seconds |
| Range | Up to 750 ft / 230 m line of sight |
| Frequency Bands | 5 GHz and 6 GHz, automatic switching |
| Receivers per Transmitter | Up to 6 |
| Antennas | Internal |
| Power | 12VDC AC adapter included; P-Tap cable included |
| Compatibility | Cross-compatible with Bolt 4K and Bolt 6 transmitters |
| Included | 18 in HDMI cable, light stand adapter, 18W power supply, P-Tap cable |
