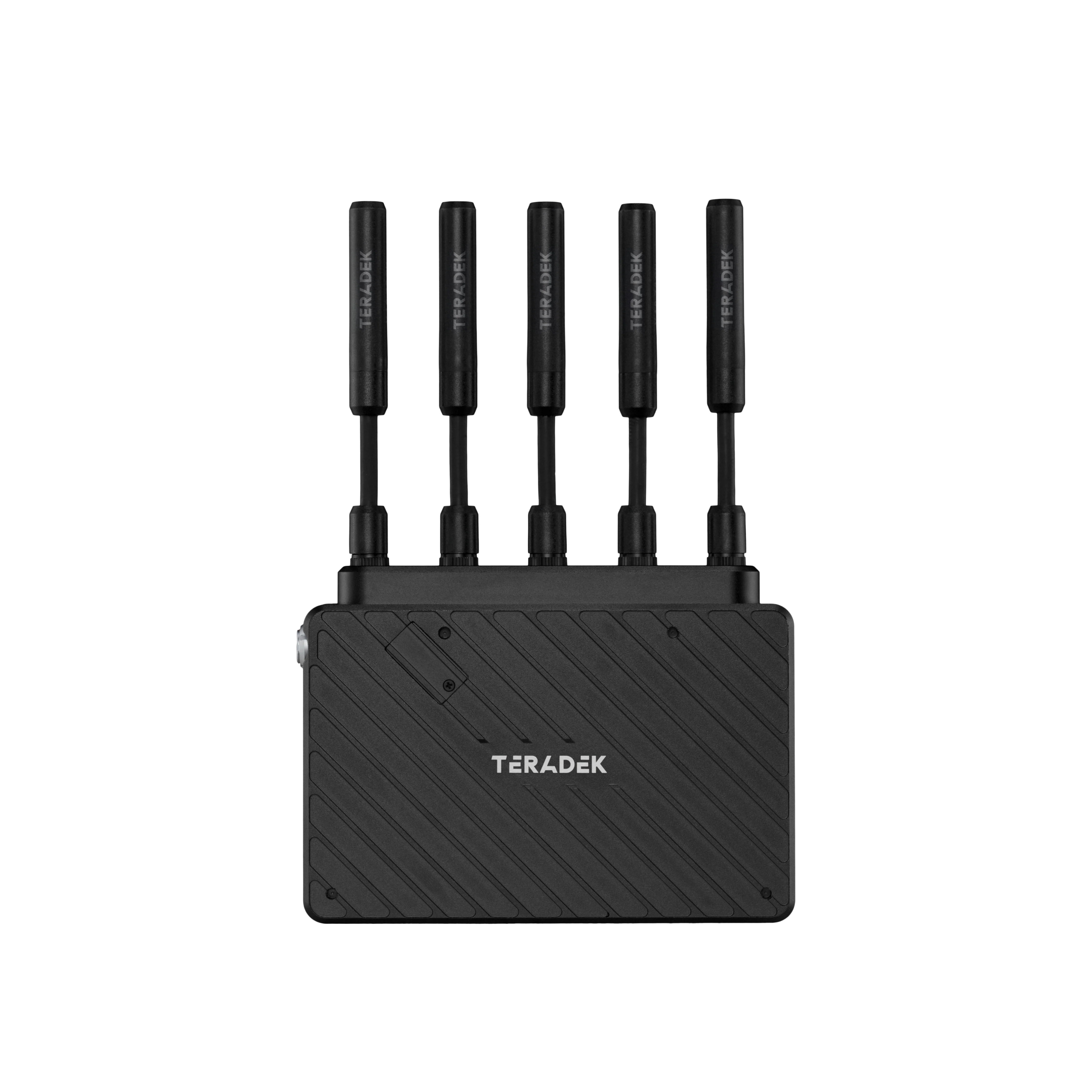

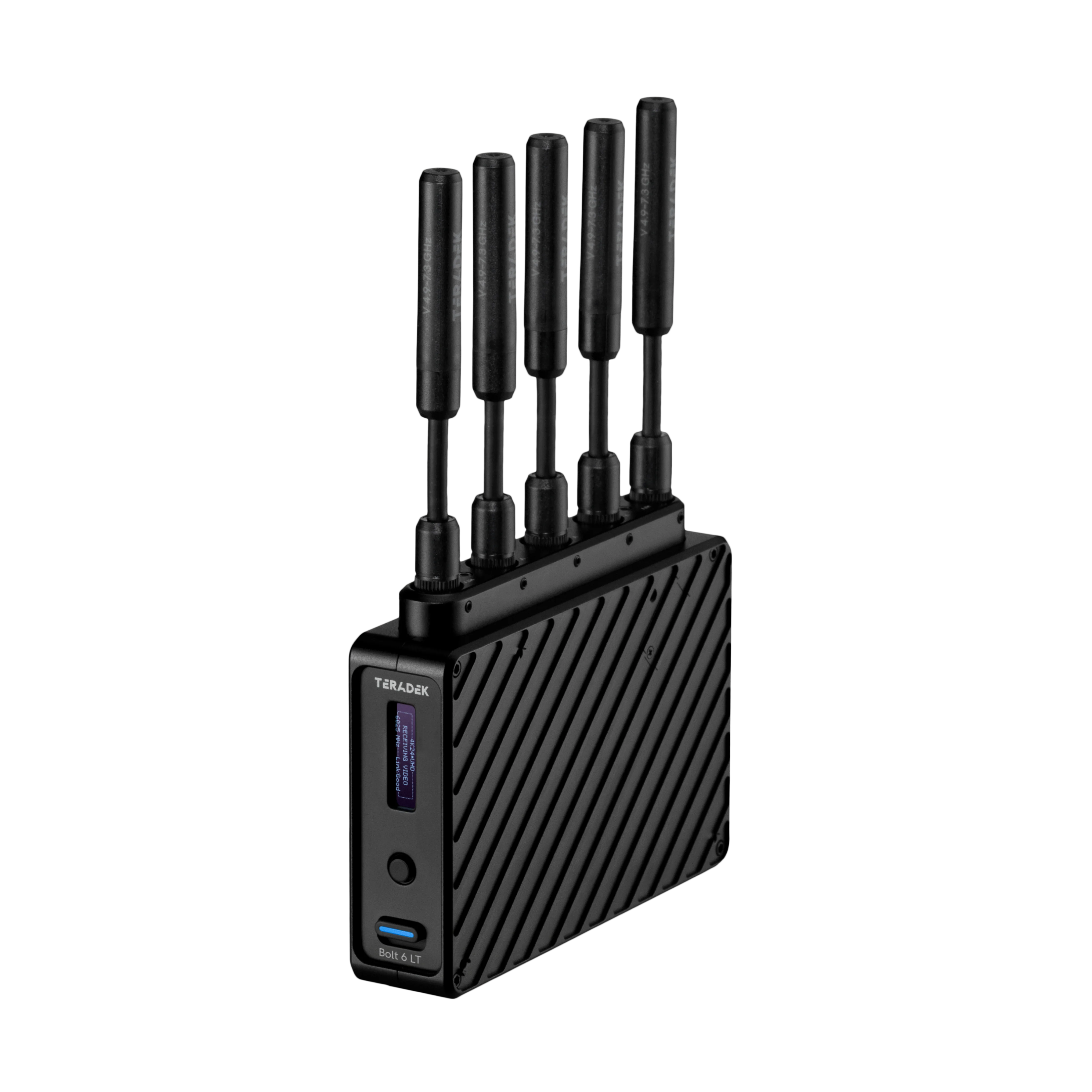

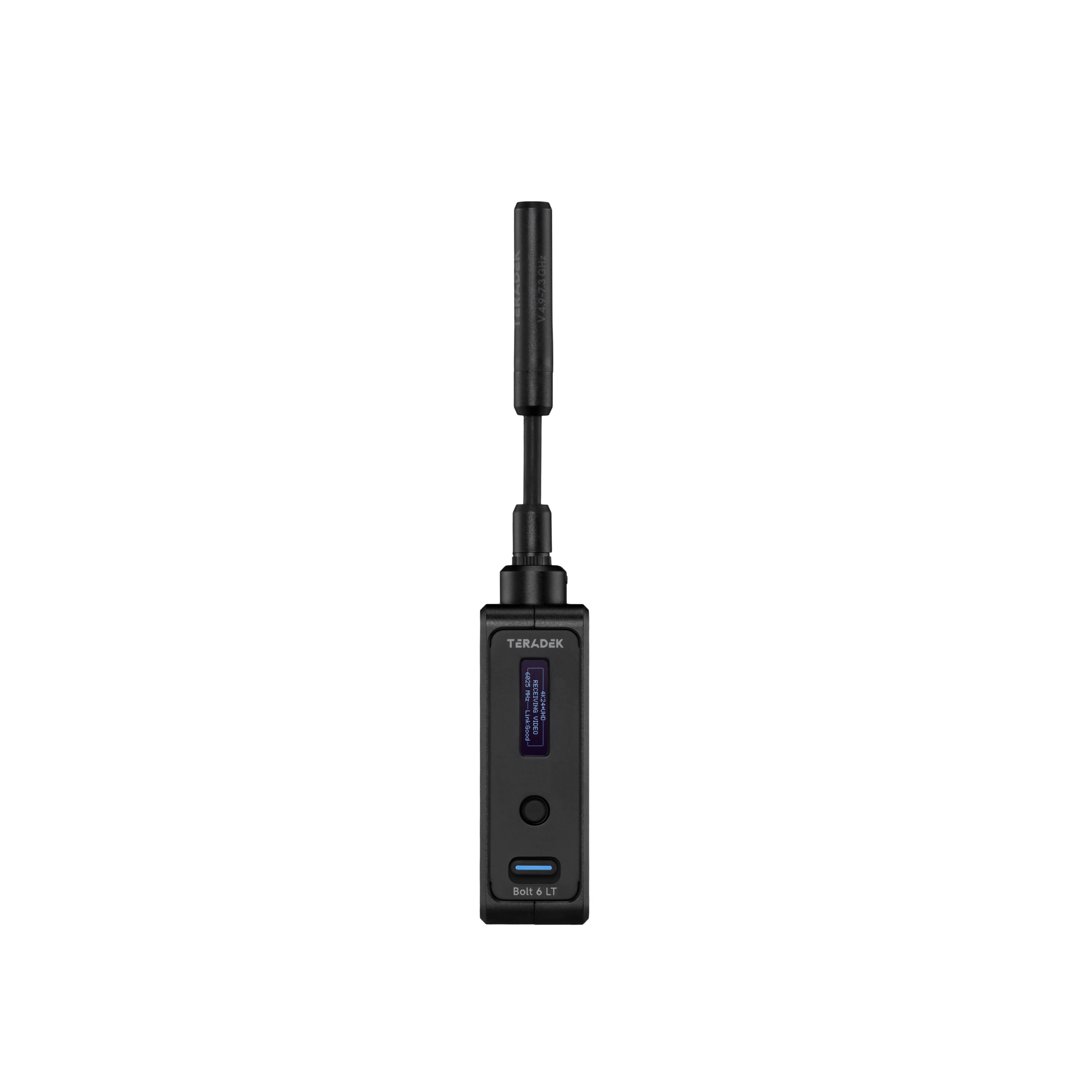

Teradek Bolt 6 LT Receiver

The Bolt 6 LT Receiver is the monitor-side half of Teradek's lightweight wireless video line: it pulls the picture off a Bolt 6 or Bolt 4K transmitter and puts it out over 3G-SDI (1080p60, 10-bit 4:2:2 HDR) or HDMI (up to 4K30 HDR) with less than 0.001 seconds of delay, so whatever's on the monitor is what the camera sees. It works on both the 5 GHz band and the newer 6 GHz band, which matters most in a venue already saturated with Wi-Fi and comms - those extra 6 GHz channels are clear air. The link itself runs AES-256 encryption with RSA-1024 key pairing between transmitter and receiver, and status is read off a bright OLED display or the Bolt app over Bluetooth.

Sold on its own, it lets a kit add a second monitoring position - a client tent, a DIT cart, a follow-focus operator - without buying a whole new TX/RX set. The 750 ft tier is available with external V-antennas or, in the -I variant, with the antennas built into the housing for a lower-profile mount; 1500 ft and MAX models carry external V+H antennas for extra RF resilience at range. Every range tier ships in three power configurations: bare (no mount, for AC or DC-barrel power), Gold Mount, or V-Mount, so the receiver can run straight off whatever battery is already on the cart.

Video Output3G-SDI and HDMI
Maximum SDI Resolution1920x1080p60, 10-bit 4:2:2 HDR
Maximum HDMI Resolution3840x2160p30 (4K30), 10-bit 4:2:2 HDR
LatencyLess than 0.001 seconds
Range750 ft (10-2262/10-2264 families), 1500 ft (10-2272 family), or MAX (10-2282 family)
Frequency Bands5 GHz and 6 GHz
EncryptionAES-256 with RSA-1024 key pairing
Mount OptionsNo Mount, Gold Mount, or V-Mount
AntennasExternal (all tiers) or internal (750 ft -I family)
CompatibilityCross-compatible with Bolt 4K series transmitters over 5 GHz
