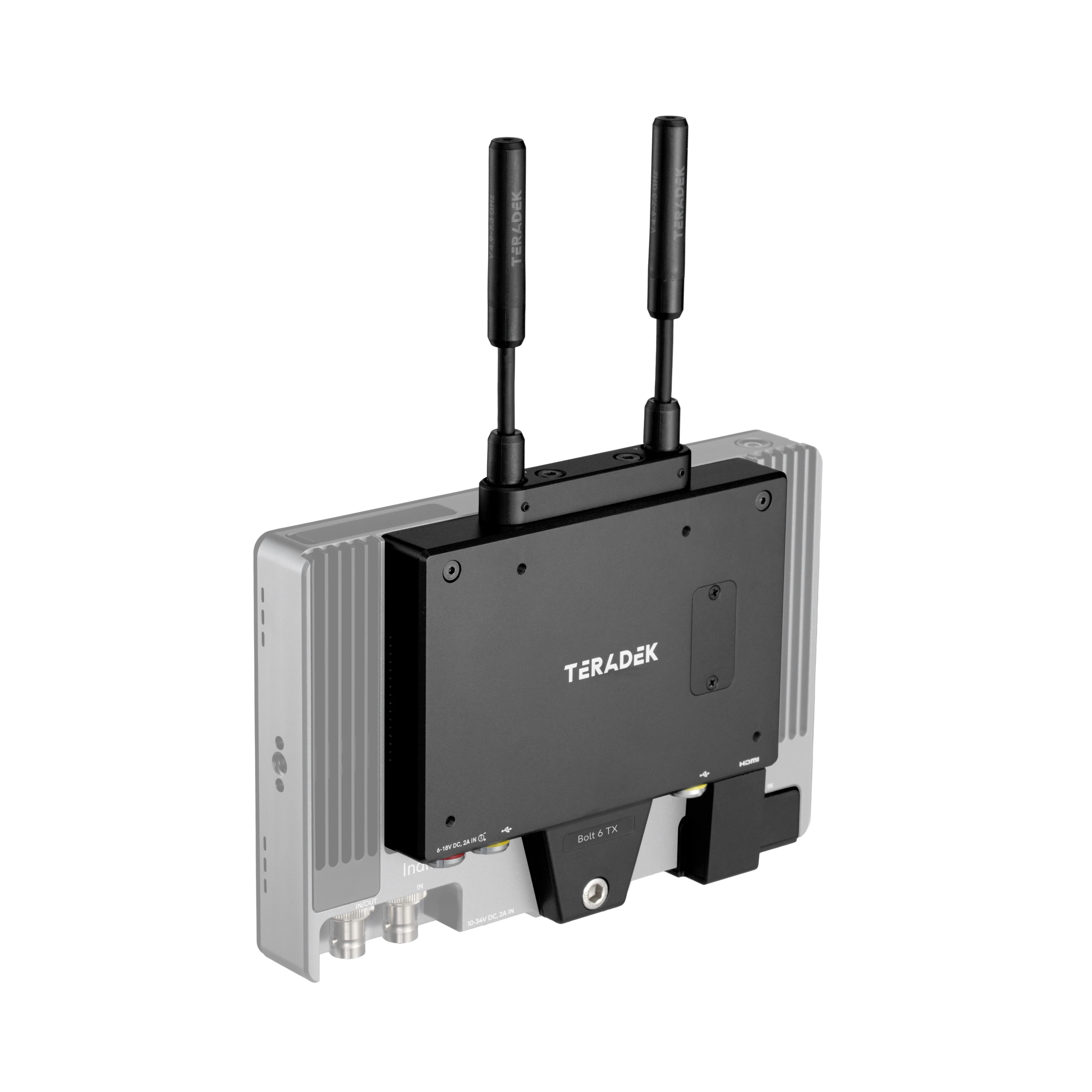

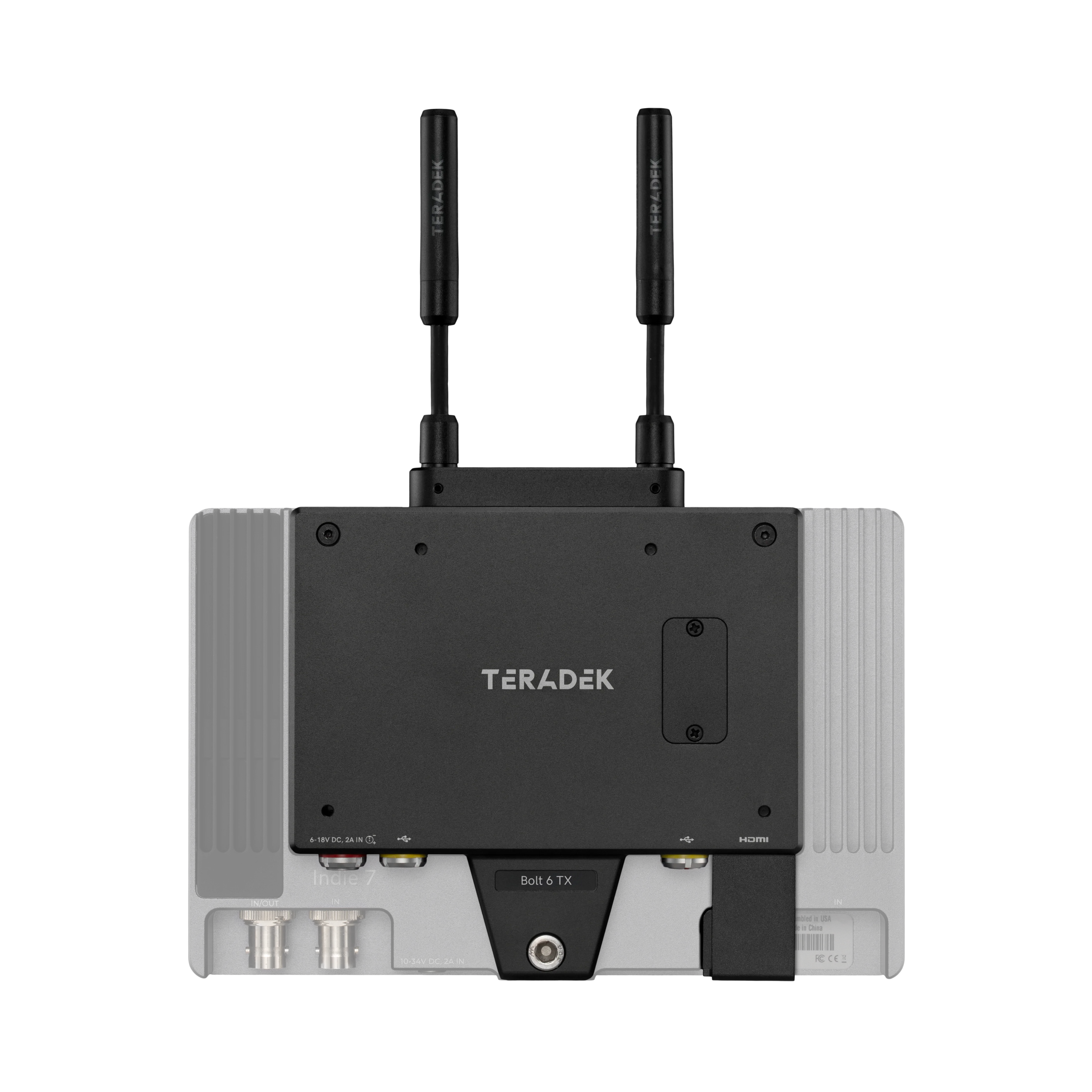

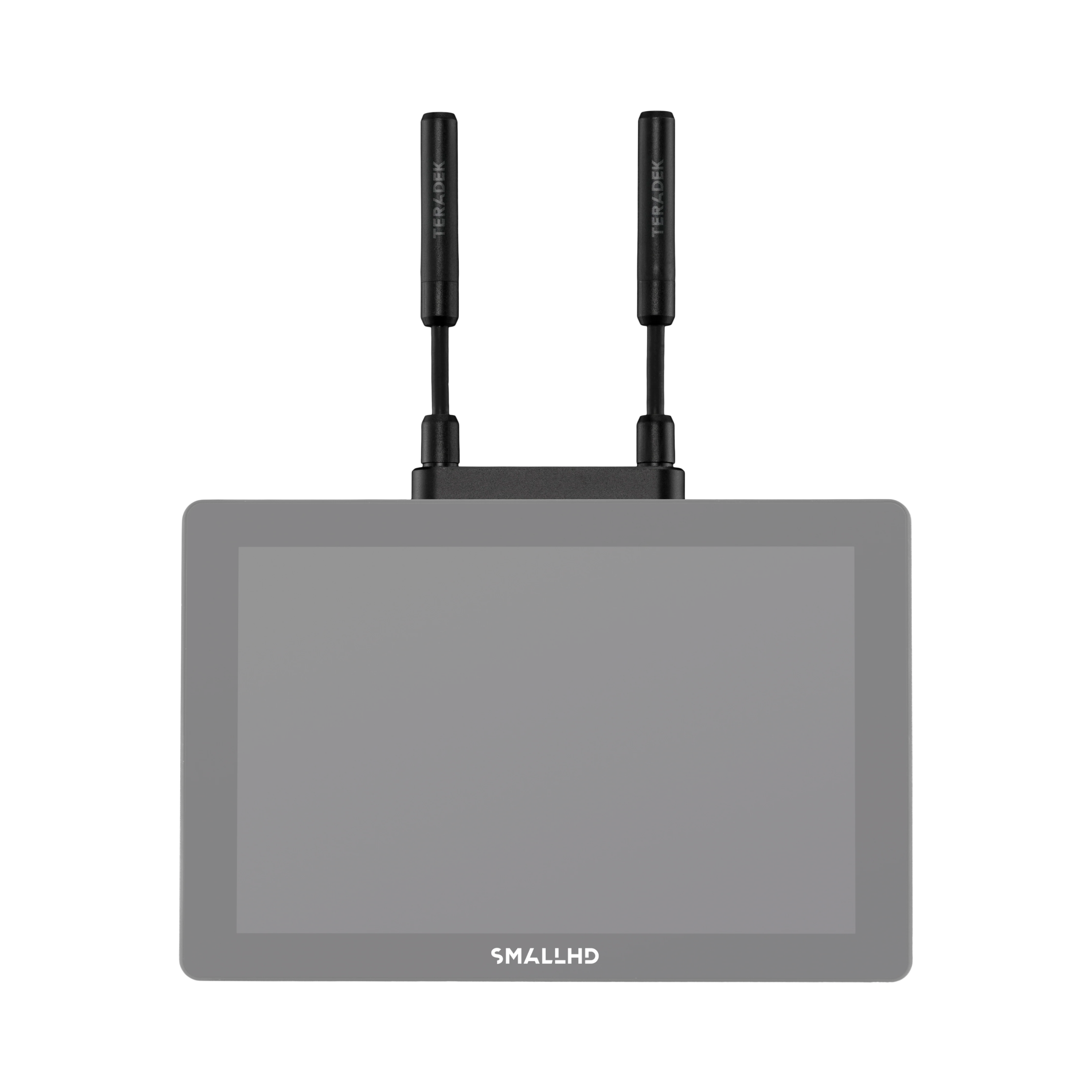

Teradek Bolt 6 Monitor Module

The Bolt 6 Monitor Module is Teradek's wireless video hardware reshaped to clip directly onto the back of a SmallHD Cine 7, Indie 7, or 702 Touch smart monitor, sharing that monitor's power and mounting rather than dangling a separate box and cable off the cage. Both the TX and RX modules carry up to 4K30 at 10-bit 4:2:2 HDR with Teradek's Zero-Delay transmission over the 5 GHz band plus the newly opened 6 GHz band, and because the receiver module talks to the monitor directly, the operator can pull camera control back through the SmallHD interface instead of a separate app.

Each module is available in a 750 ft or 1500 ft range tier. The 750 ft receiver additionally comes with a choice of external V-antennas or antennas built into the housing for the lowest possible profile on a monitor rig, and every receiver ships with a Gold Mount or V-Mount battery plate so the monitor-and-Bolt stack can run off the operator's existing battery. The transmitter and receiver are sold separately since most orders only need to add one side - a monitor operator adding RX to an existing camera-side Bolt transmitter, for example.
