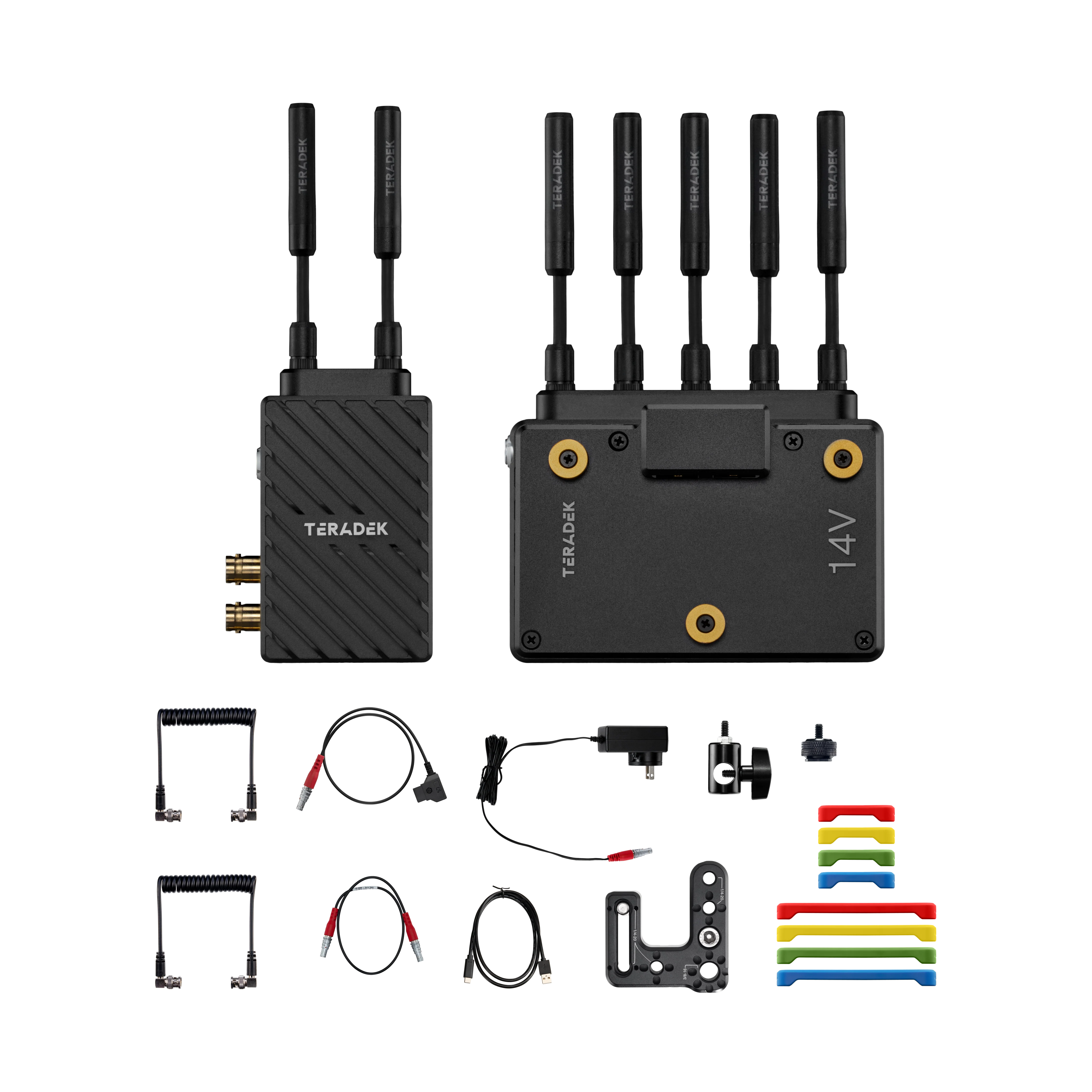

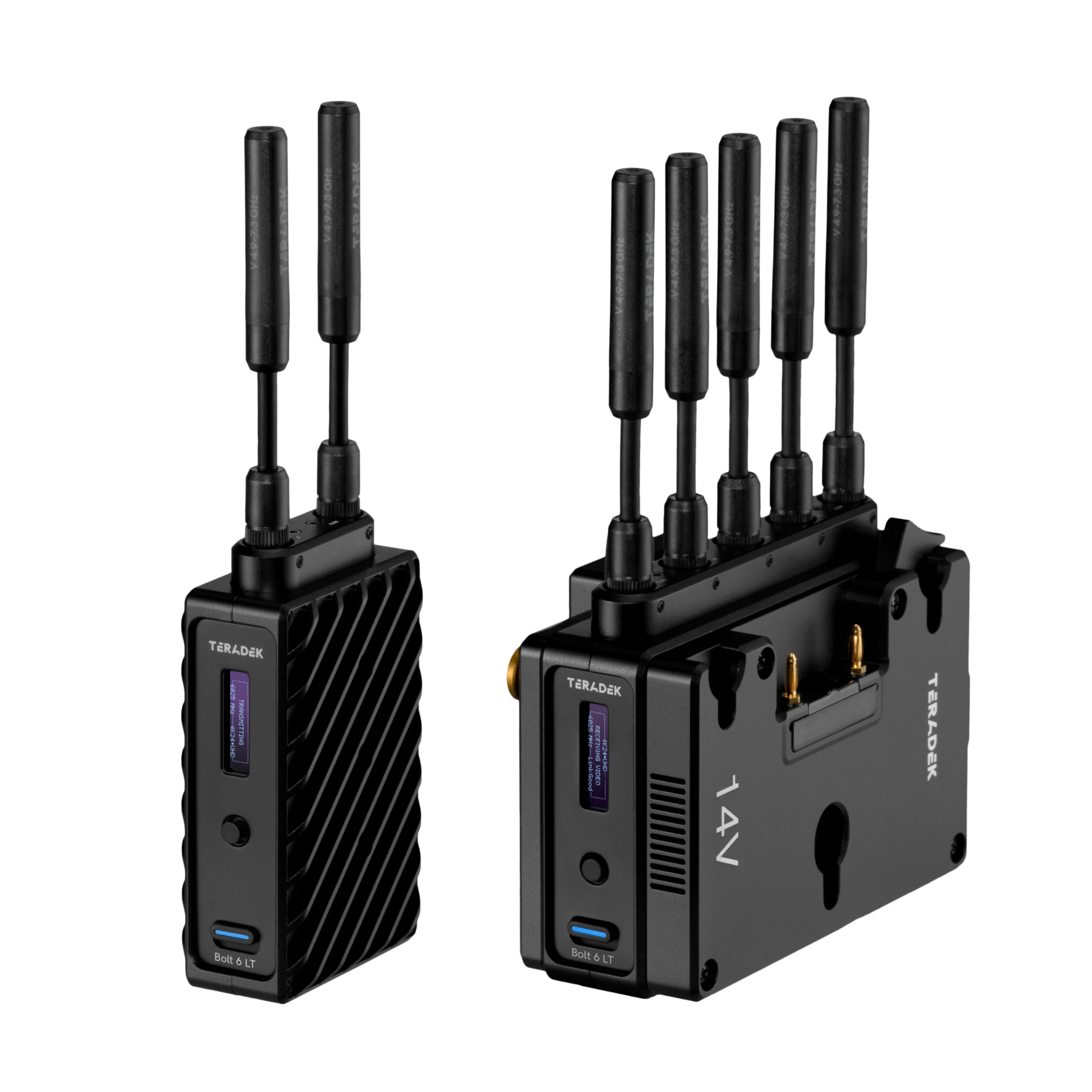

Teradek Bolt 6 LT TX/RX Set

The Bolt 6 LT Set pairs a matched transmitter and receiver so a camera department can order one part number instead of assembling the pair. Every tier carries 1080p60 at 10-bit 4:2:2 HDR over 3G-SDI, or steps up to 4K30 HDR over HDMI, with less than 0.001 seconds of delay end to end, and the transmitter can drive up to six receivers if the production needs more than one monitoring position. Bolt 6 runs on 5 GHz plus the newly opened 6 GHz band, giving it clean spectrum to fall back on in a hotel ballroom or stadium concourse already packed with Wi-Fi, and the link is AES-256 encrypted with RSA-1024 key pairing so nobody outside the truck is watching the feed.

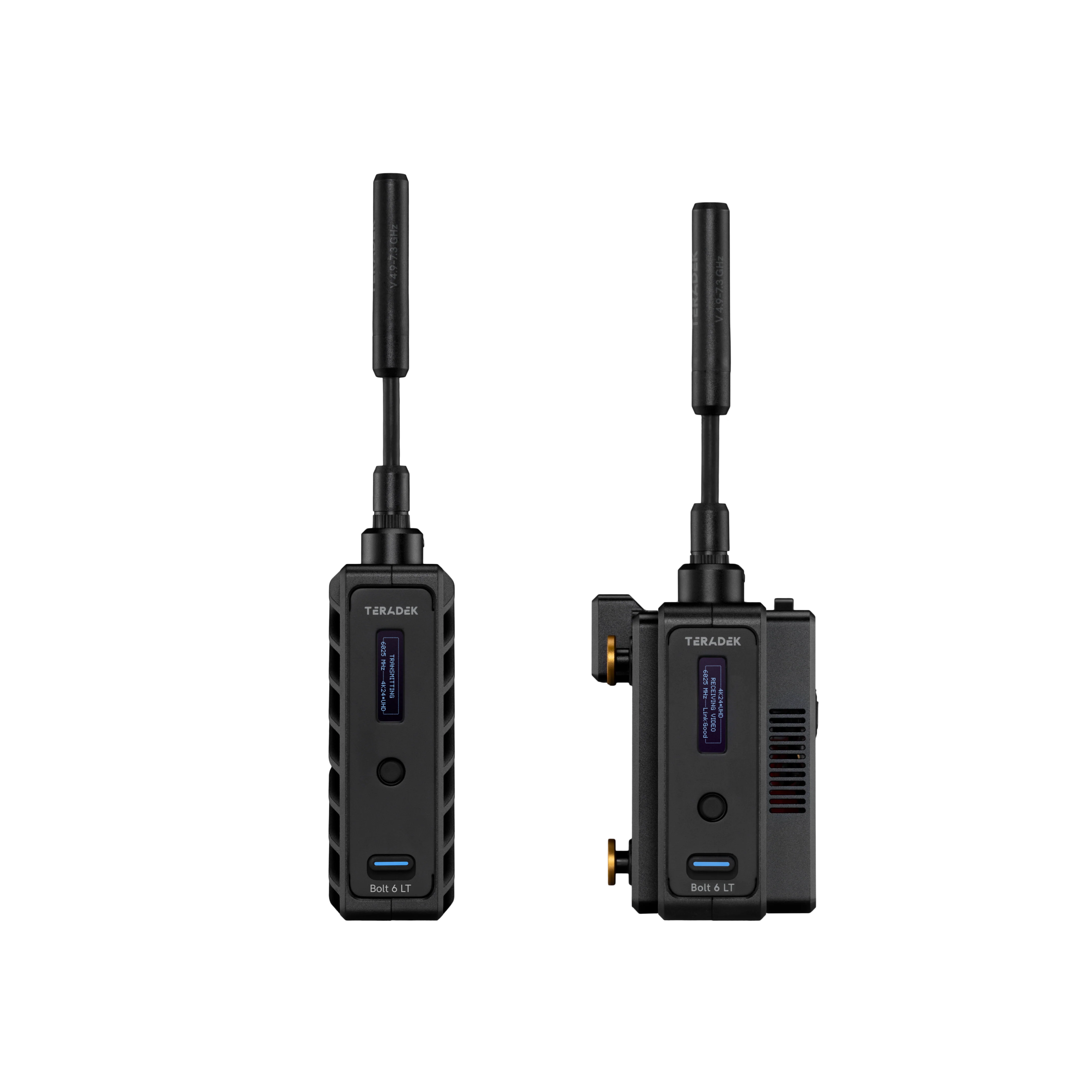

This family covers the Gold Mount and V-Mount kits at 750 ft, every mount option at 1500 ft and MAX range, and an Internal Antenna build of the 750 ft set - the bare, no-mount 750 ft set is already on the site as its own page (linked above). The Internal Antenna units swap the screw-on external antennas for a permanent antenna built into the housing, 75 percent shorter and safer from knocks on a run-and-gun rig; every spec and function is otherwise identical to the standard 750 ft set. MAX-tier sets reach out to 5,000 feet line of sight with an optional array antenna and Broadcast Mode for unlimited receivers, which is what puts them on stadium and large-venue jobs rather than in a run bag. Both units carry OLED status displays and are configured from the Bolt Manager box or the Bolt app over Bluetooth.
