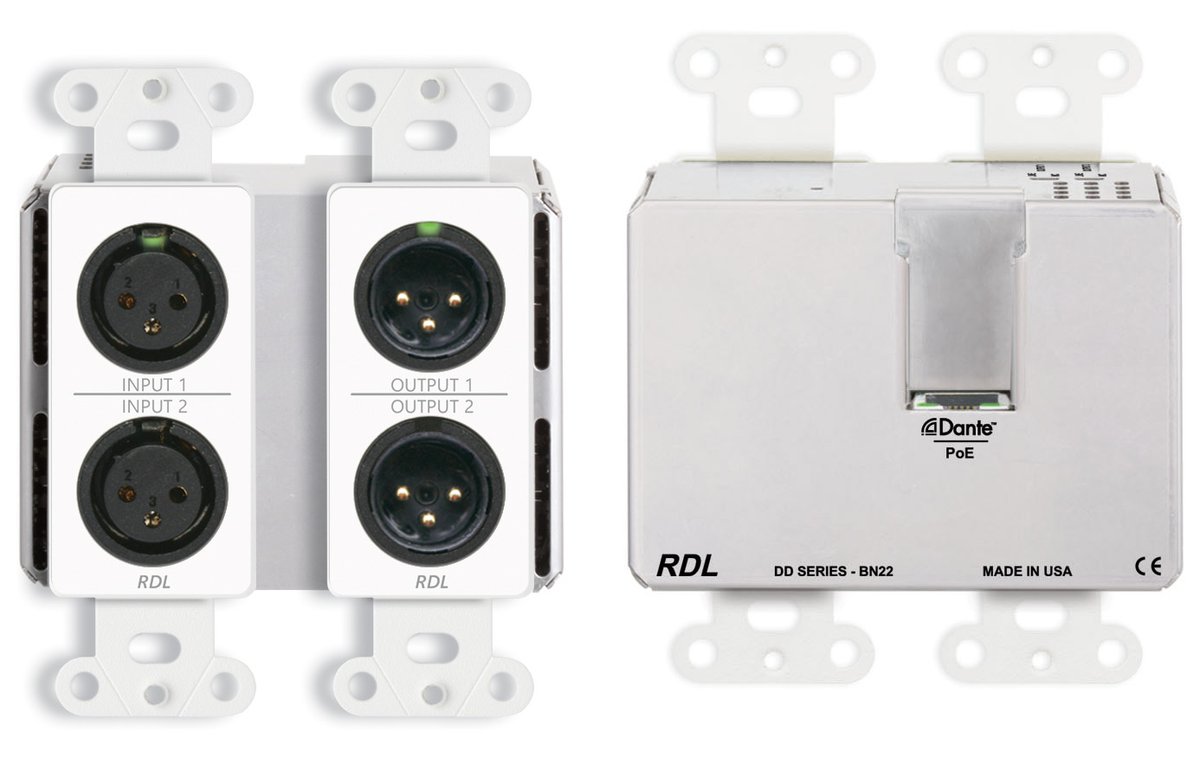

RDL DD-BN22 Wall-Mounted Bi-Directional 2x2 Mic/Line Dante Interface

The RDL DD-BN22 is a complete wall-plate Dante interface that both sends and receives audio in one dual-gang footprint. Two XLR inputs carry microphone or line signals onto the network, and two XLR outputs bring network channels back to the wall as balanced audio, so a single plate can serve a lectern microphone and a pair of local monitor feeds at the same time. Each input has three front-panel switches: one for P48 phantom, one to choose the mic or line gain range, and one to set the gain within that range.

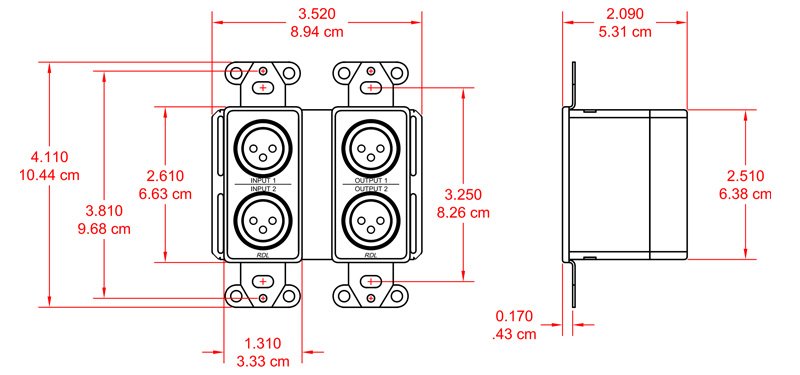

Input sensitivity spans -36 to -58 dBu across the mic settings and +4 to -15 dBu across the line settings for a +4 dBu / -20 dBFS reference, while each output delivers +4 dBu balanced at -20 dBFS with a selector to drop 50 dB to mic level. The DD-BN22 is PoE powered over its network connection and fits a standard US dual-gang electrical box or an RDL WB-2 back box. This model ships in white, and matching black and stainless-steel finishes are available.
