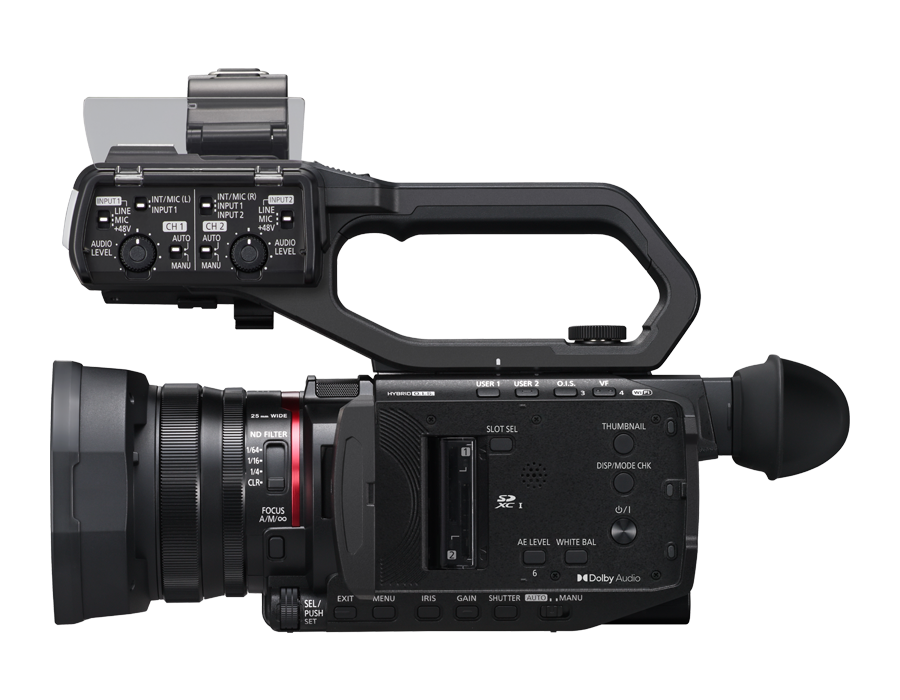

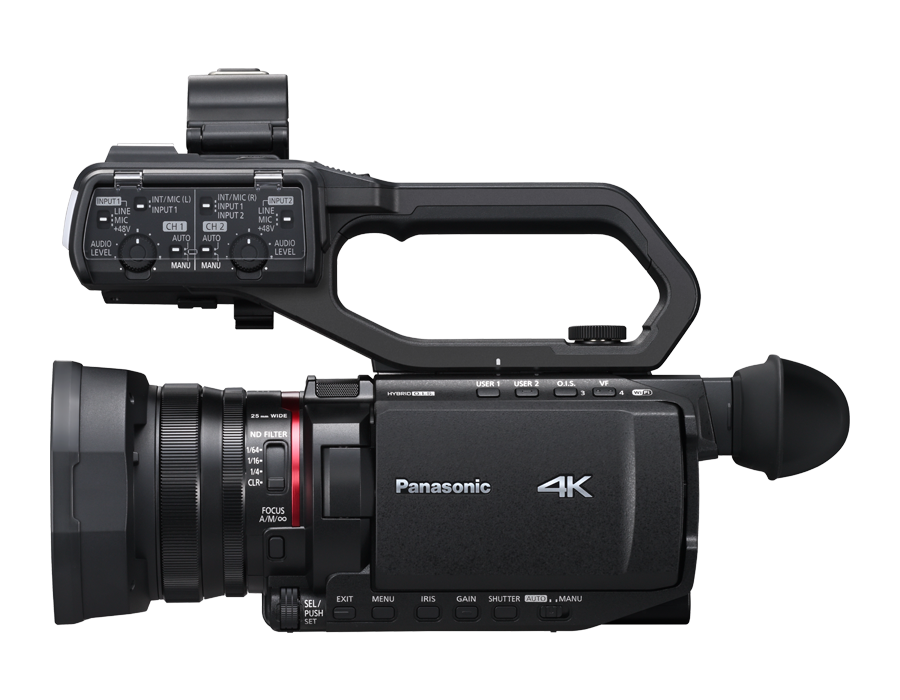

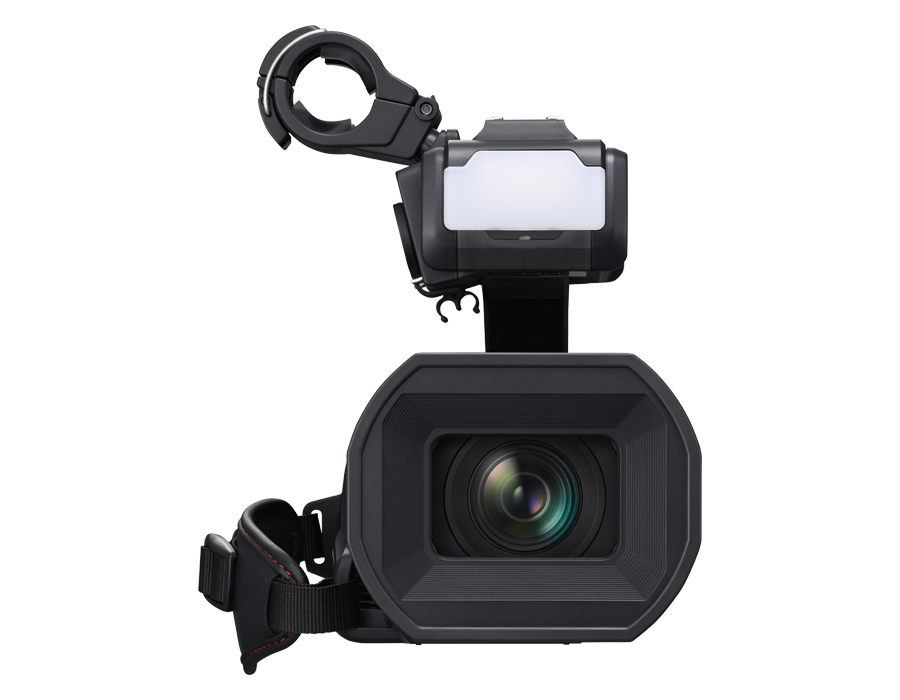

Panasonic AG-CX20 4K Professional Compact Camcorder
The AG-CX20 is a compact 4K professional camcorder built around a 1/2.5-type MOS sensor with approximately 8.29 million effective pixels, paired with a 25-600mm (35mm equivalent) integrated 24x optical zoom. i.Zoom extends reach to 32x in 4K and 48x in Full HD without a visible resolution penalty, and five-axis hybrid stabilization keeps handheld shots steady. At roughly 0.85 kg for the body alone, it is light enough for run-and-gun event and broadcast work while still recording true 4K 60p in 10-bit.
Recording covers MOV, MP4, AVCHD, and P2 MXF across dual SD card slots, and the camera outputs 3G-SDI and HDMI simultaneously alongside NDI HX2 IP connectivity for network-based production. Built-in streaming support for SRT and RTMP lets it go direct to a platform without an encoder. The built-in stereo microphone handles run-and-gun audio, and the optional VW-HU1 handle unit adds two XLR inputs for professional sources.
| Image Sensor | 1/2.5-type MOS, approx. 8.29 million effective pixels |
|---|---|
| Optical Zoom | 24x (i.Zoom to 32x in 4K, 48x in Full HD) |
| Recording Formats | MOV, MP4, AVCHD, P2 MXF |
| Max Recording Format | 4K 3840 x 2160 60p, 10-bit |
| Video Output | 3G-SDI and HDMI simultaneous output |
| IP / Streaming | NDI HX2, SRT, RTMP |
| Audio | Built-in stereo microphone; 2-channel XLR via optional VW-HU1 handle unit |
| Weight | Approx. 0.85 kg (1.88 lb) body only |
