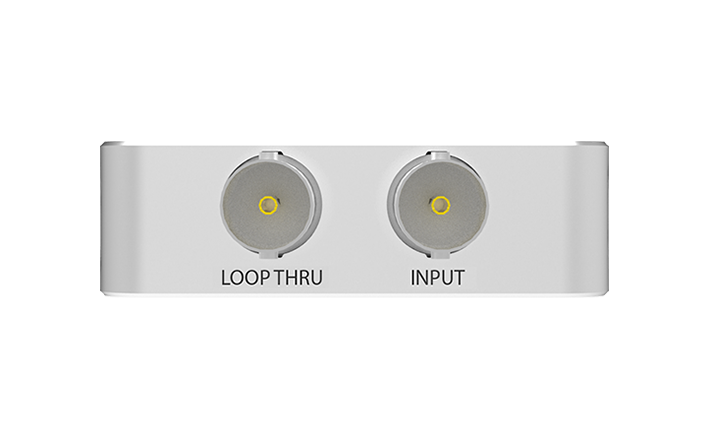

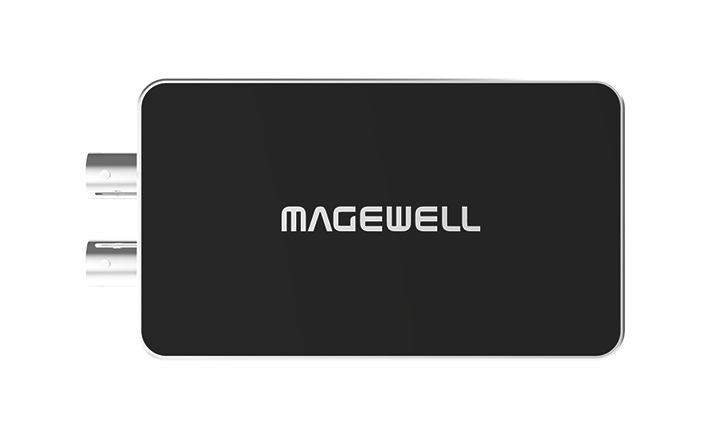

Magewell USB Capture SDI Plus (32050)

USB Capture SDI Plus takes an SD, HD, 3G, or 2K SDI feed with embedded audio up to 2048 x 1080 and hands it to a computer as a standard UVC video device. Nothing is installed on the host, so the same dongle moves between a studio workstation, a producer's laptop, and a rented machine without a driver hunt.

The Plus designation shows up in the audio path: alongside the 2-channel embedded SDI audio, a 3.5 mm line in and line out let you insert a separate audio source or monitor the capture directly. That is what makes it workable for a one-person remote where the audio does not come down the same cable as the picture. Windows, Linux, macOS, and Chrome OS are supported, a USB 3.0 cable (ACC10001) is in the box, and USB 2.0 hosts run at reduced throughput.

Part Number32050
InterfaceUSB 3.0, compatible with USB 2.0
Input1 x SDI with embedded audio
SDI StandardsSD / HD / 3G / 2K SDI
Max Input Resolution2048 x 1080
Audio2-channel embedded, or analog via 3.5 mm line in / out
OS SupportWindows, Linux, macOS, Chrome OS
In the BoxDevice, USB 3.0 cable (ACC10001)
