Magewell USB Capture AIO (32110) And S-video, All Into One USB 3.0 Device

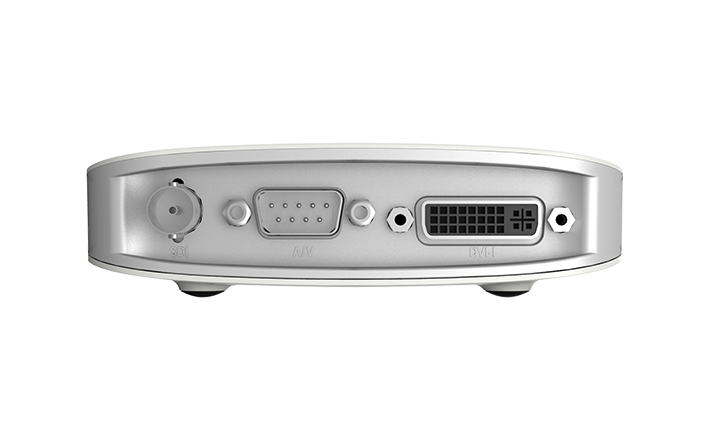

USB Capture AIO is the one to hand a technician who does not know what will be at the other end. Between the SDI BNC and the DVI-I connector with its supplied adapters it takes SD, HD, and 3G-SDI, DVI, VGA, HDMI, composite, component, and S-video, at input resolutions up to 2048 x 2160 - which covers essentially anything a live venue, a hospital, or a training facility is likely to produce.

It is still a driver-free USB device: the host enumerates standard UVC video and UAC audio, so it works on Windows, Linux, macOS, and Chrome OS without an install, including on machines the operator does not administer. Audio can be the 2-channel embedded stream or unbalanced analog. The kit ships with a USB 3.0 cable, a DVI-to-VGA connector, a DB9 analog breakout, and a DVI-I breakout, and the device falls back to USB 2.0 hosts at reduced throughput.
