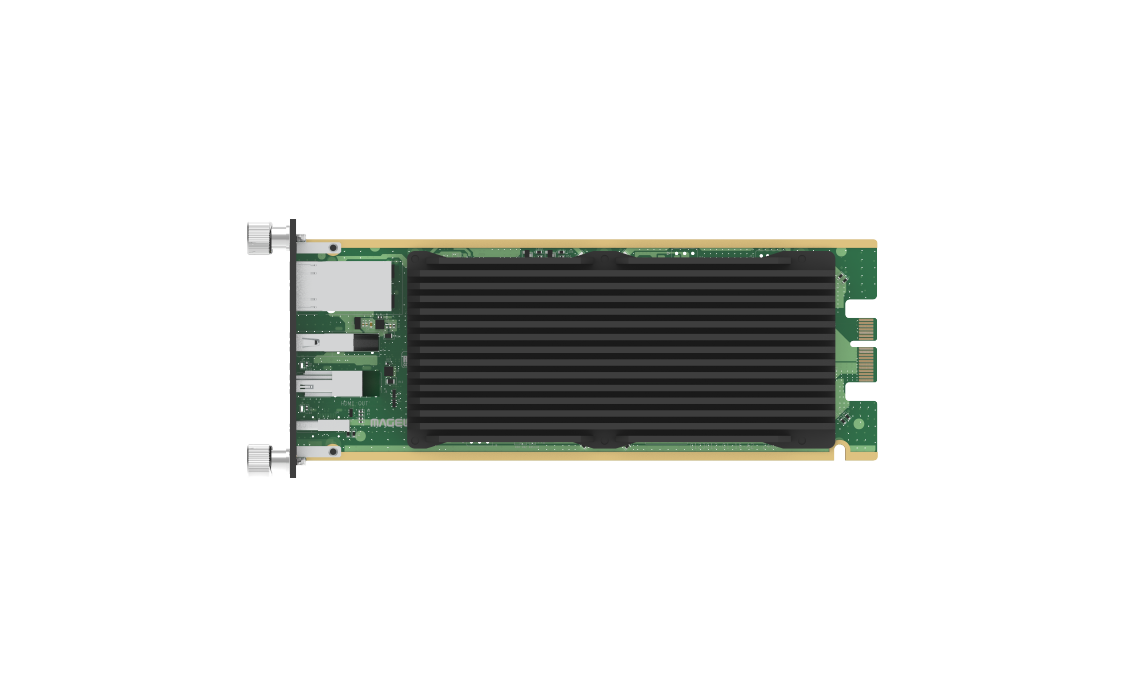

Magewell Pro Convert for NDI to HDMI 4K Module (B4110)

Pro Convert for NDI to HDMI 4K Module is a decoding module for rack-mounted centralized deployment, converting a live IP stream into 4K HDMI signal. Connections: 1* RJ45 1000Mbps Ethernet port; 1* USB Type-C port for configuration; 1* USB Type-A 3.0 port for connecting peripherals; 1* HDMI 2.0 output port. Signal handling: Decoding up to 4Kp60 streams of NDI High Bandwidth, NDI HX, NDI HX2, NDI HX3, RTSP, HTTP, HLS, RTMP Pull/Push, MPEG-TS over UDP/SRT/RTP and TVU ISSP protocols.

Setup and monitoring: Register with Magewell Control Hub for remote centralized management; Supports configuring and managing via Web UI. It measures 184.4mm (L) x 30.0mm (W) x 81.5mm (H). Power: Max power consumption: 9.85w.

Part Number	B4110

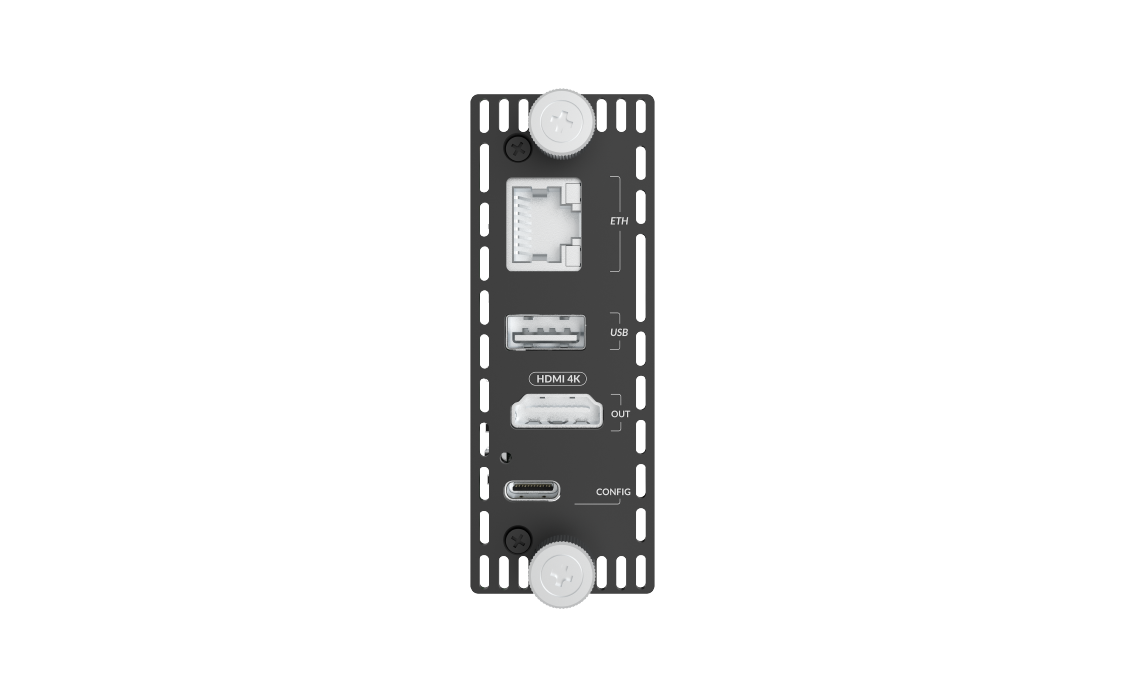

Interfaces	1* RJ45 1000Mbps Ethernet port; 1* USB Type-C port for configuration; 1* USB Type-A 3.0 port for connecting peripherals; 1* HDMI 2.0 output port
Decoding Features	Decoding up to 4Kp60 streams of NDI High Bandwidth, NDI HX, NDI HX2, NDI HX3, RTSP, HTTP, HLS, RTMP Pull/Push, MPEG-TS over UDP/SRT/RTP and TVU ISSP protocols
Control	Register with Magewell Control Hub for remote centralized management; Supports configuring and managing via Web UI
Form Factor	Form factor: 184.4mm (L) x 30.0mm (W) x 81.5mm (H); Weight: approx. 316g
Power	Max power consumption: 9.85w
Operating Range	Operating temperature: 0 to 50 deg C; Storage temperature: -20 to 70 deg C; Relative humidity: 5% to 90% non-condensing
