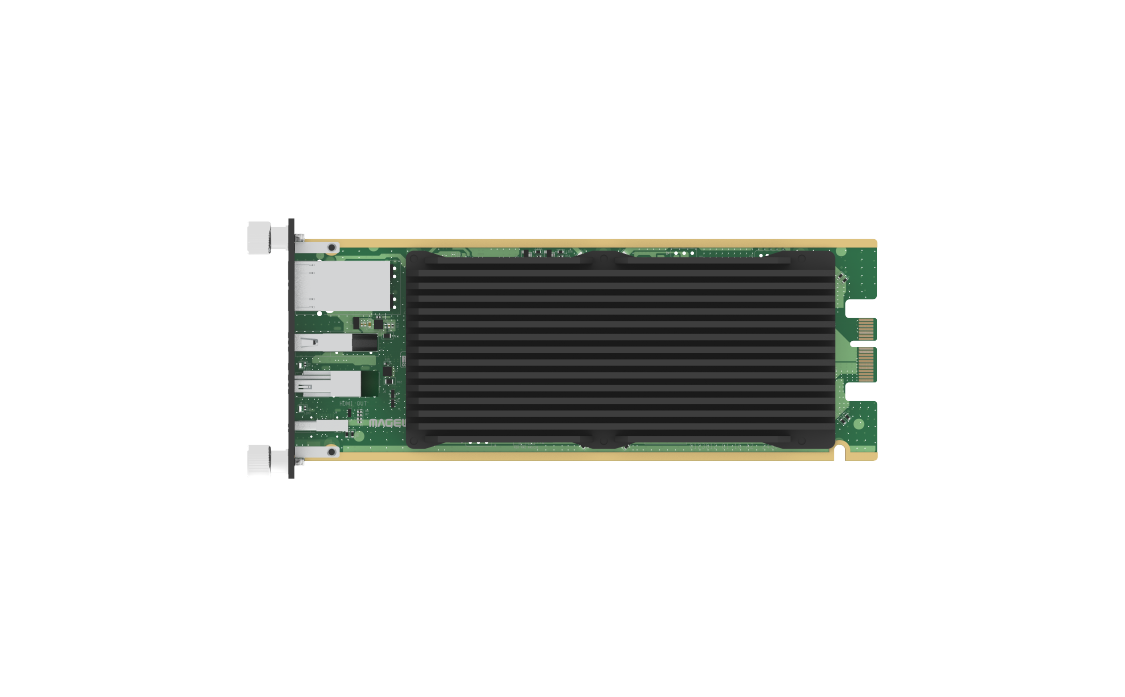

Magewell Pro Convert for NDI to HDMI Module (B4101)

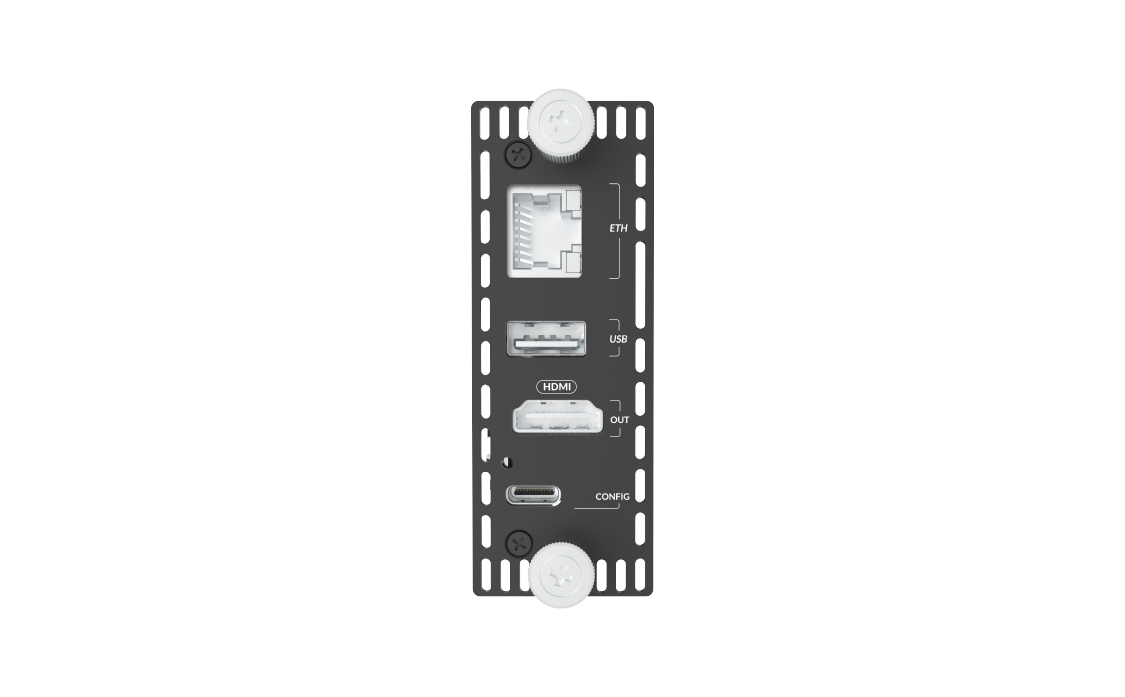

Pro Convert for NDI to HDMI Module converts a live NDI stream into HD HDMI signal. Connections: 1* RJ45 1000Mbps Ethernet port; 1* USB Type-C port for configuration; 1* USB Type-A 3.0 port for connecting peripherals; 1* HDMI 2.0 output port. Signal handling: Decode up to 2Kp60 streams of NDI High Bandwidth , NDI |HX, NDI |HX2, NDI |HX3, RTSP, HTTP, HLS, RTMP Pull/Push, MPEG-TS over UDP/SRT/RTP, TVU protocols; Decode SpeedHQ/H.264/H.265 video.

Setup and monitoring: Register with Magewell Control Hub for remote centralized management; Supports configuring and managing via Web UI. It measures 184.4mm (L) x 30.0mm (W) x 81.5mm (H). Power: Max power consumption: 4.3W.

Part Number	B4101
Interfaces	1* RJ45 1000Mbps Ethernet port; 1* USB Type-C port for configuration; 1* USB Type-A 3.0 port for connecting peripherals; 1* HDMI 2.0 output port
Decoding Features	Decode up to 2Kp60 streams of NDI High Bandwidth , NDI \|HX, NDI \|HX2, NDI \|HX3, RTSP, HTTP, HLS, RTMP Pull/Push, MPEG-TS over UDP/SRT/RTP, TVU protocols; Decode SpeedHQ/H.264/H.265 video
Control	Register with Magewell Control Hub for remote centralized management; Supports configuring and managing via Web UI
Form Factor	Form factor: 184.4mm (L) x 30.0mm (W) x 81.5mm (H); Weight: approx. 290g
Power	Max power consumption: 4.3W
Operating Range	Operating temperature: 0 to 50 deg C; Storage temperature: -20 to 70 deg C; Relative humidity: 5% to 90% non-condensing
