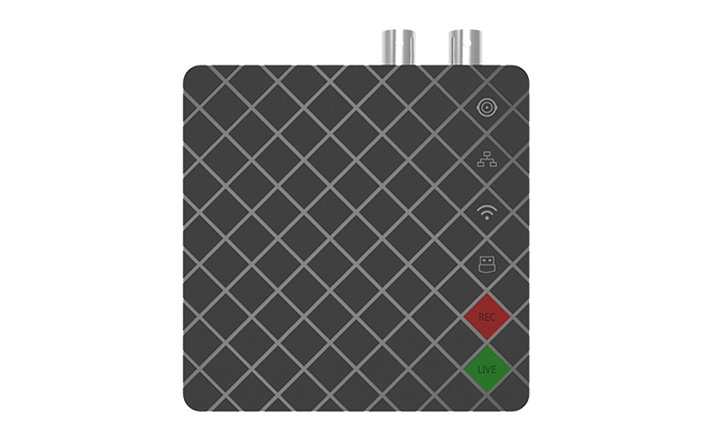

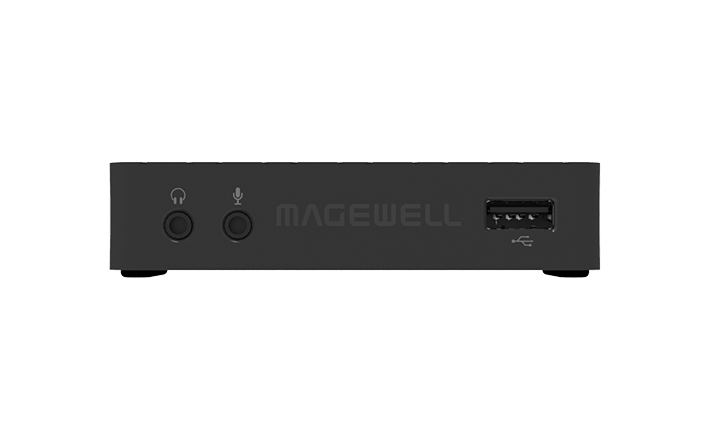

Magewell Ultra Stream SDI Streaming Encoder (53020)

Ultra Stream SDI is a dedicated SDI streaming encoder with loop-through. Connections: Max input and loop-through signal: 2048x1080 60fps; Supported SDI inputs include: 2048x1080p/2048x1080i/1920x1080p/1920x1080i 23.98/24/25/29.97/30/47.95/48/50/59.94/60. Signal handling: Dual-stream encoding: main stream and sub stream; Max bitrate: Main Stream - 8Mbps; Sub Stream - 2Mbps.

Setup and monitoring: Register with 2 Control Hub platforms; Remote control via Application, WebUI and Control Hub. It measures 94.20mm x 94.20mm x 22.30mm. Power: DC 5V/2A; Max power consumption: ~7.2 W. In the box: AC adapter.

Part Number	53020
Input Features	Max input and loop-through signal: 2048x1080 60fps; Supported SDI inputs include: 2048x1080p/2048x1080i/1920x1080p/1920x1080i 23.98/24/25/29.97/30/47.95/48/50/59.94/60
Encoding Features	Dual-stream encoding: main stream and sub stream; Max bitrate: Main Stream - 8Mbps; Sub Stream - 2Mbps
Recording Features	Recording to a USB flash drive, internal SD storage and paired mobile device simultaneously; When recording to a USB Flash Drive support auto-recording, normal recording
Configuration Management	Register with 2 Control Hub platforms; Remote control via Application, WebUI and Control Hub
Form Factor	94.20mm x 94.20mm x 22.30mm
Power	DC 5V/2A; Max power consumption: ~7.2 W
Operating Range	Operating temperature: 0 to 40 deg C; Storage temperature: -20 to 70 deg C; Relative humidity: 5% to 90% non-condensing
