Magewell Pro Convert for NDI to AIO Module (B4211)

Pro Convert for NDI to AIO Module converts a live NDI stream into HDMI and SDI. Connections: 1* RJ45 1000Mbps Ethernet port; 1* USB Type-C port for configuration; 1* SDI output port; 1* HDMI 1.4 output port. Signal handling: Decode up to 2Kp60 streams of NDI High Bandwidth, NDI HX, NDI HX2, NDI HX3, RTSP, HTTP, HLS, RTMP Pull/Push, MPEG-TS over UDP/SRT/RTP, TVU protocols.

Setup and monitoring: Register with Magewell Control Hub for remote centralized management; Supports configuring and managing via Web UI. It measures 184.4mm (L) x 30.0mm (W) x 81.5mm (H). Power: Max power consumption: 5.2W.

Part Number	B4211

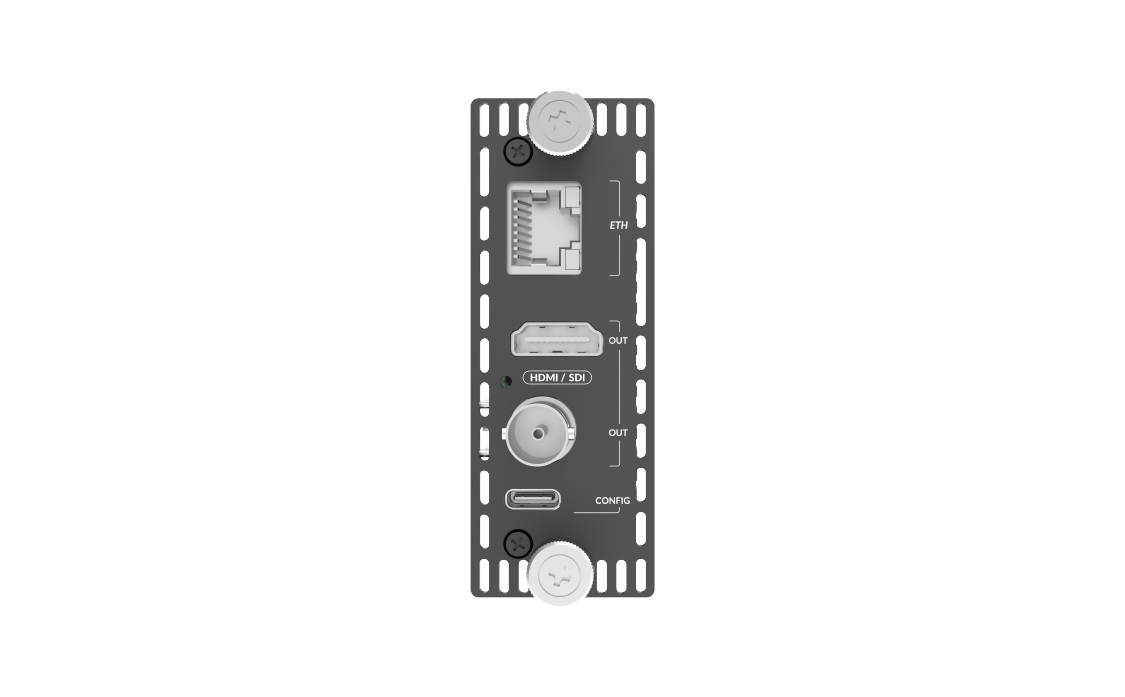

Interfaces	1* RJ45 1000Mbps Ethernet port; 1* USB Type-C port for configuration; 1* SDI output port; 1* HDMI 1.4 output port; 1* Modator interface for connecting to Modator 2U (hot-swappable)
Decoding Features	Decode up to 2Kp60 streams of NDI High Bandwidth, NDI HX, NDI HX2, NDI HX3, RTSP, HTTP, HLS, RTMP Pull/Push, MPEG-TS over UDP/SRT/RTP, TVU protocols
Control	Register with Magewell Control Hub for remote centralized management; Supports configuring and managing via Web UI
Form Factor	Form factor: 184.4mm (L) x 30.0mm (W) x 81.5mm (H); Weight: approx. 300g
Power	Max power consumption: 5.2W
Operating Range	Operating temperature: 0 to 50 deg C; Storage temperature: -20 to 70 deg C; Relative humidity: 5% to 90% non-condensing
