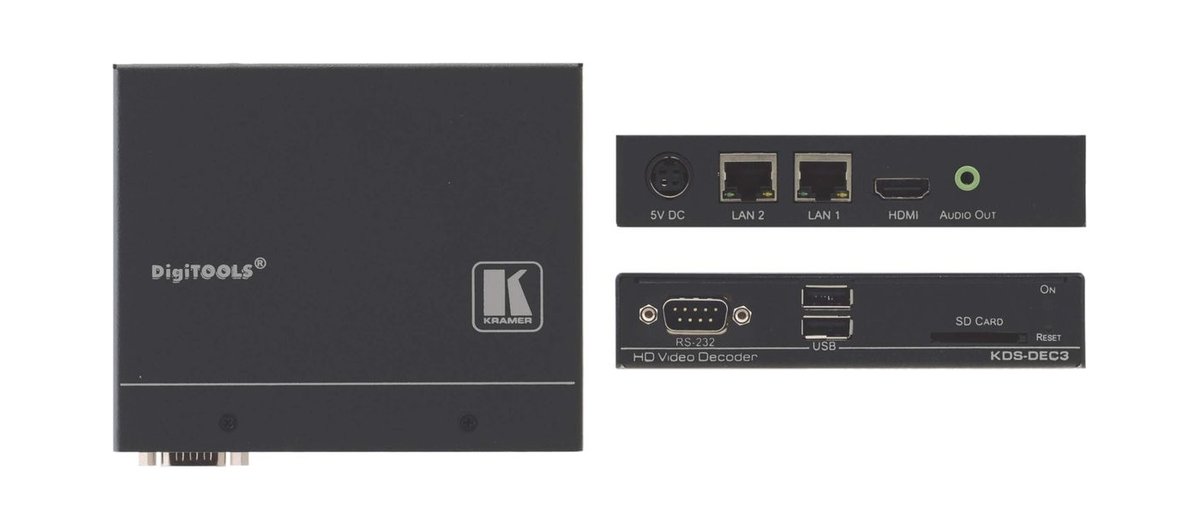

Kramer KDS-DEC3 H.264 HD Audio/Video Decoder
The Kramer KDS-DEC3 is an H.264 decoder for streams up to 1080p60, designed to work with the KDS-EN3 encoder as an end-to-end video and audio over IP system on a standard 10/100/1000 network. Scaling and cropping reformat the source for the local display, and if the link to the encoder drops, fail-safe playback keeps a picture on screen.
It outputs HDMI with HDMI or analog stereo audio, streams unicast or multicast over RTSP, and passes RS-232 from encoder to decoder. Two switched Ethernet ports let decoders daisy-chain. It runs on 5 V DC and includes its power supply and a mounting bracket set; KDS-EN3 Manager software discovers and manages units on the subnet.
- Video OutputHDMI
- Audio OutputHDMI or analog
- Outputs1 HDMI, 1 unbalanced stereo audio (3.5mm)
- Ports2 Ethernet (switched), 1 RS-232
- Max. Resolution1080p60
| Codec | MPEG-4 using H.264 & AAC |
|---|---|
| Max. Resolution | 1080p60 |
| Video Output | |
| Audio Output | HDMI or analog |
| Streaming | Unicast and multicast via RTSP |
| Network | Integrated network switch for daisy-chaining |
| Outputs | 1 HDMI, 1 unbalanced stereo audio (3.5mm) |
| Ports | 2 Ethernet (switched), 1 RS-232 |
| Bit Rates | 100Kbps to 25Mbps |
| Power | 5V DC, 3A max |
