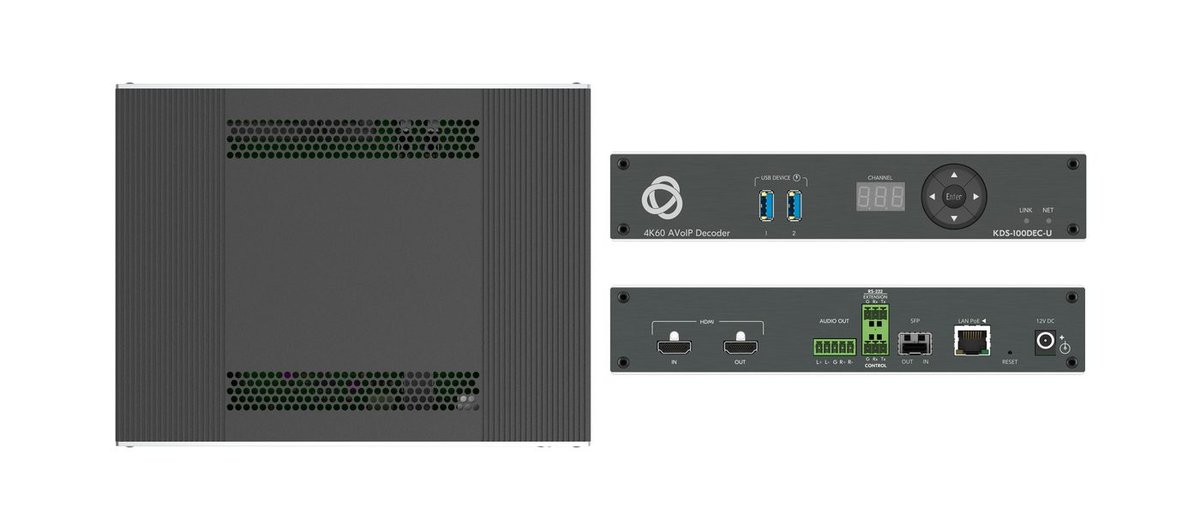

Kramer KDS-100DEC-U Open-Standard 4K AVoIP Decoder with Ultra-Low Latency

The Kramer KDS-100DEC-U is a 4K AVoIP decoder with KVM, adding keyboard and mouse extension over IP to the video and audio the standard KDS-100DEC already carries. That turns a display position into a working seat at a remote machine rather than just a monitor of it.

Streaming is open-standard H.264 and H.265, so it interoperates with third-party AVoIP gear, and it runs dual streams: a primary 4K@30Hz feed alongside a secondary 1080p@60Hz feed. Latency is around 40ms. It takes power and data on one LAN+PoE connection and breaks out HDMI, RS-232, IR transmit and receive, unbalanced stereo, USB-A, and a pass-through LAN port. Predefined profiles autodetect a KDS-100EN-U encoder, and security meets HTTPS, 802.1x, and OWASP-10.

Inputs	1 LAN+PoE
Outputs	1 HDMI 4K60 4:2:0; 1 RS-232; 1 IR Tx; 1 IR Rx; 1 Stereo (U); 1 USB-A; 1 LAN
Function	Open-standard 4K AVoIP decoder with KVM
Codec	H.264 / H.265 open standard
KVM	Keyboard and mouse extension over IP
Dual Streaming	Primary 4K@30Hz plus secondary 1080p@60Hz simultaneously
Latency	Approximately 40 ms
Security	HTTPS, 802.1x, OWASP-10
