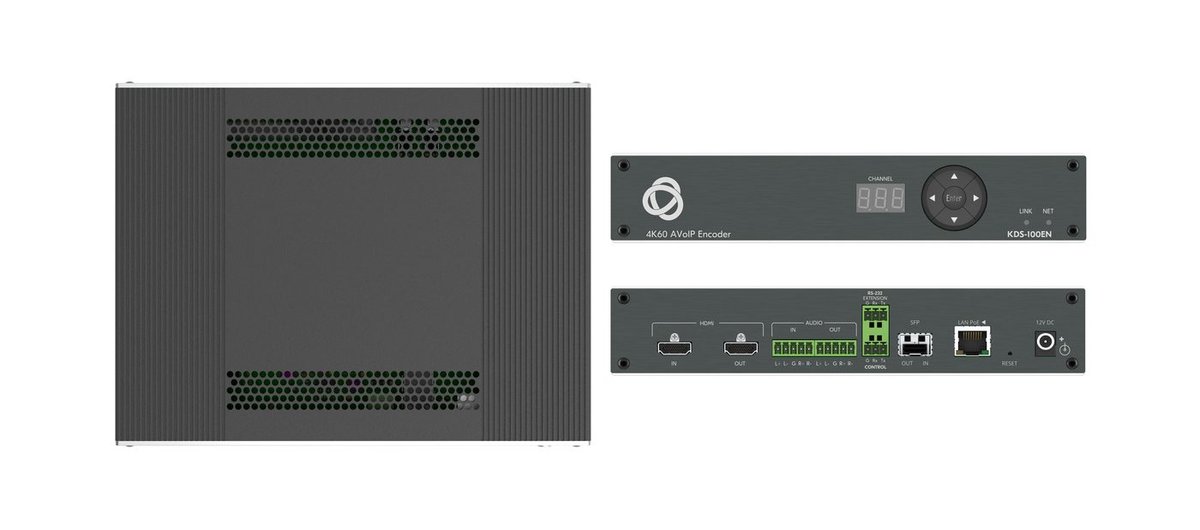

Kramer KDS-100EN Open-Standard 4K AVoIP Encoder with Ultra-Low Latency & Dual Streaming

The Kramer KDS-100EN is a 4K AVoIP encoder that takes an HDMI source and puts it onto the network as an open-standard H.264 or H.265 stream, which means third-party AVoIP decoders can receive it as well as Kramer's own.

It streams twice at once: a primary 4K@30Hz feed for the main displays and a secondary 1080p@60Hz feed for confidence monitors, recording, or low-bandwidth clients. Latency is around 40ms. Predefined deployment profiles cut the configuration work on a large rollout, channel-based routing removes IP addressing from the operator's job, and security meets HTTPS, 802.1x, and OWASP-10. It integrates natively with Kramer's AVoIP Manager.

Inputs	1 HDMI; 1 T-Block
Outputs	1 HDMI; T-Block
Function	Open-standard 4K AVoIP encoder
Codec	H.264 / H.265 open standard
Dual Streaming	Primary 4K@30Hz plus secondary 1080p@60Hz simultaneously
Latency	Approximately 40 ms
Routing	Channel-based, no IP addressing required
Security	HTTPS, 802.1x, OWASP-10
